Shift Lock Control Wiring Schematics

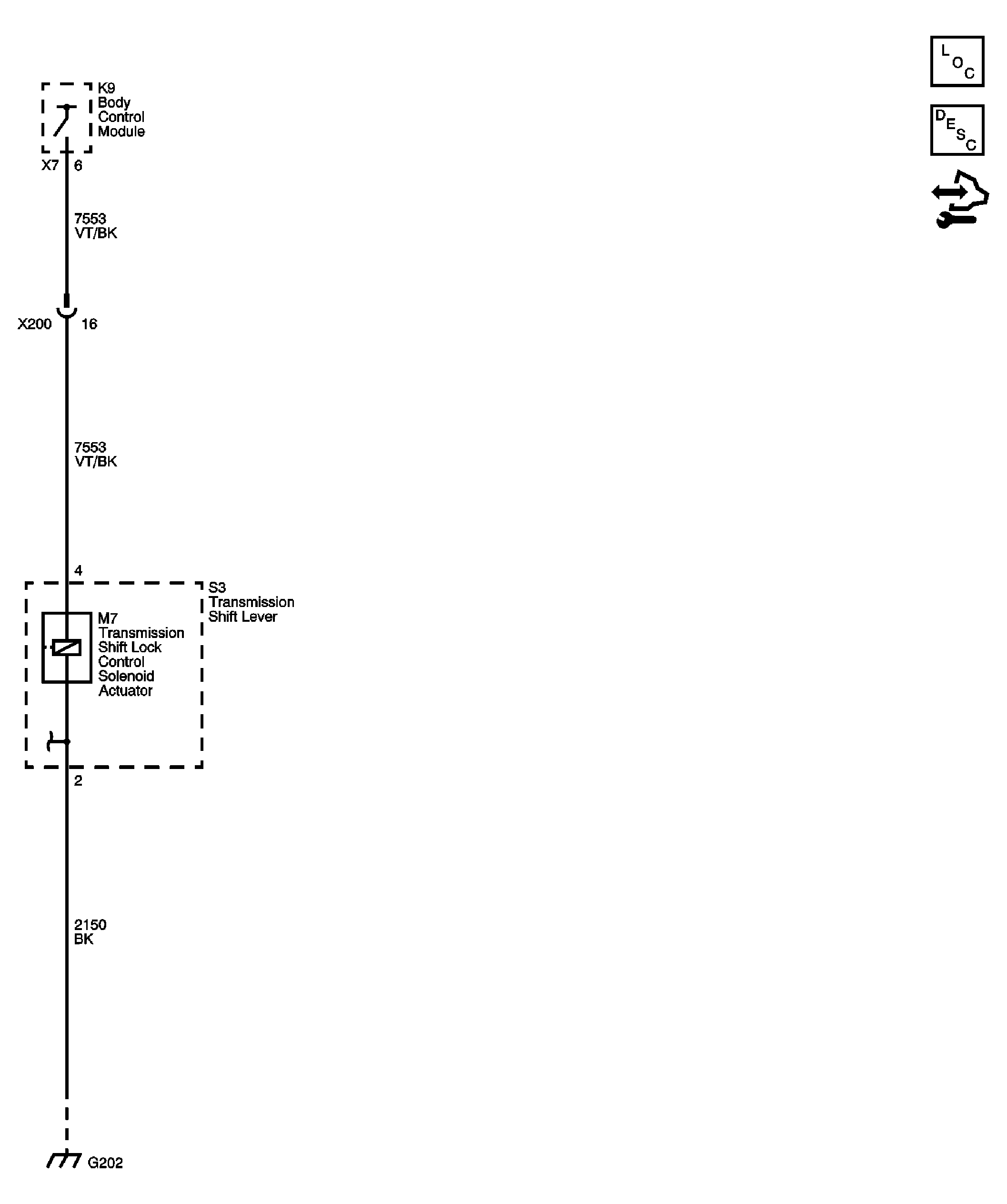

Fig 1: MH8 Shift Lock Control Wiring Schematic

GM2461709

Courtesy of GENERAL MOTORS CORP.
