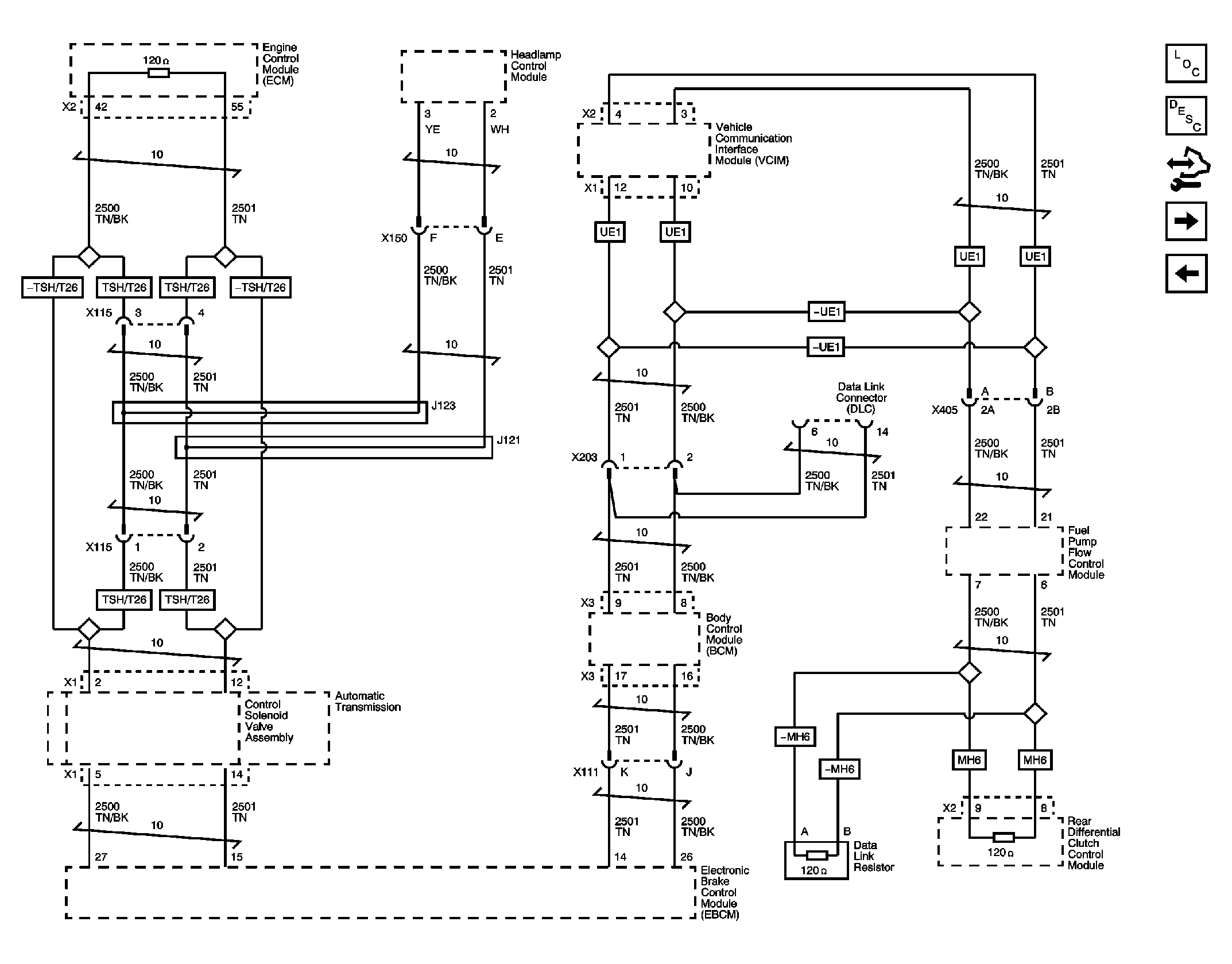

Home >> Chevrolet >> 2011 >> Traverse LS, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Schematic Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN
