Drive Motor Battery Charger Receptacle Replacement

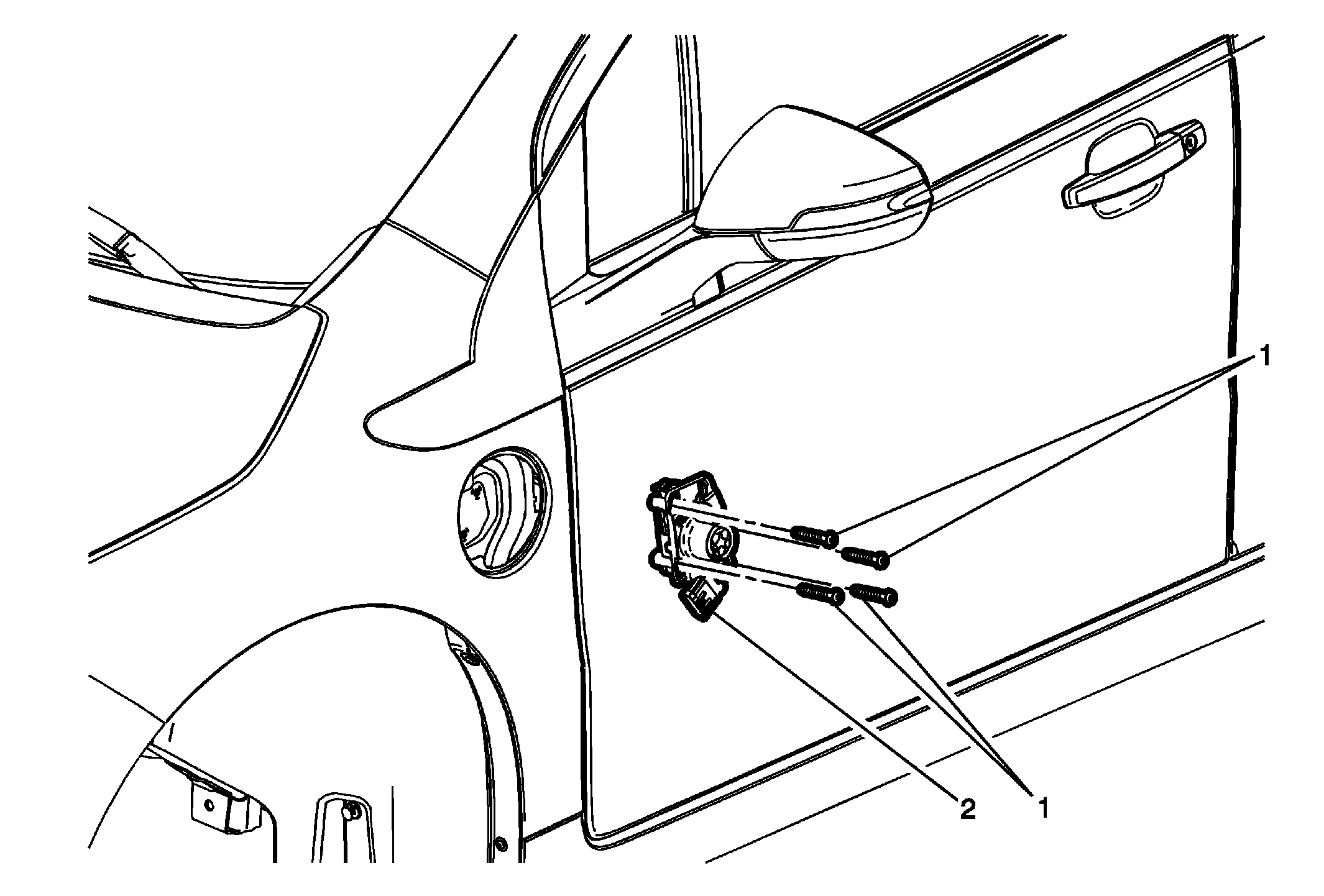

Fig 1: Drive Motor Battery Charger Receptacle
GM2396972Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Disable the high voltage system. Refer to High Voltage Disabling .
  2. Remove the charge port housing. Refer to Charge Port Housing Replacement .
1 Drive Motor Battery Charger Receptacle Fastener (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  12 N.m (106 lb in)
2 Drive Motor Battery Charger Receptacle Fastener

Procedure

  1. Disconnect the electrical connector.
  2. Enable the high voltage system. Refer to High Voltage Enabling .
