Fuel Injector Replacement
Fuel Injector Replacement

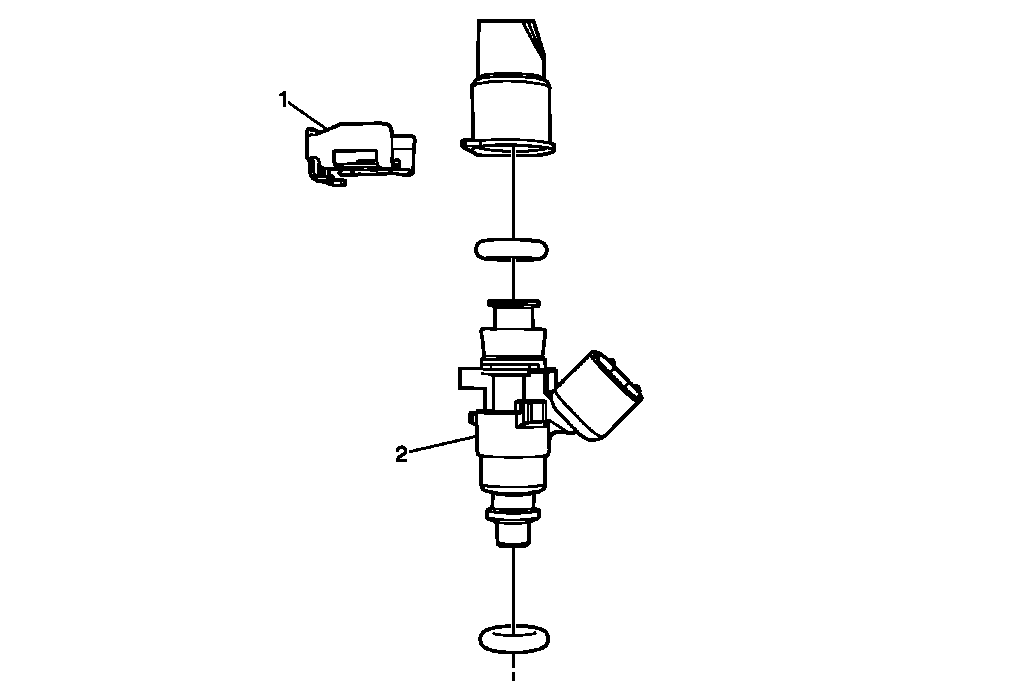

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement (6.2L LS9 - With Supercharger) , Fuel Injection Fuel Rail Assembly Replacement (Without LS9) . |
|
| 1 | Fuel Injector Retainer TIP: A flat bladed tool can be used to release the retainer. |
| 2 | Fuel Injector Procedure Remove and replace the O-rings as required. |
