Local Interconnect Network (LIN) Serial Data

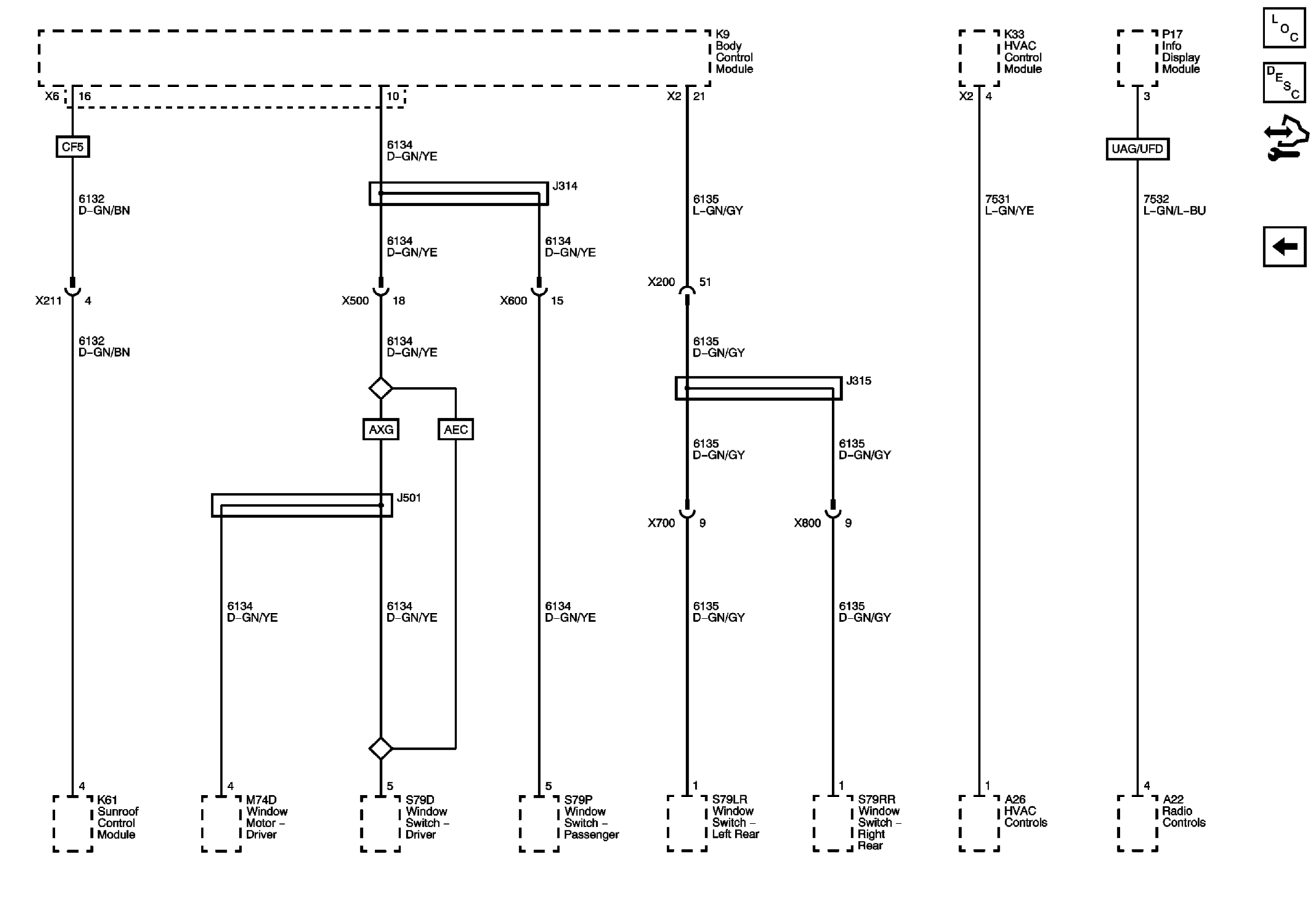

Fig 1: Local Interconnect Network (LIN) Serial Data Wiring Schematic

GM2587653

Courtesy of GENERAL MOTORS COMPANY
