Chevrolet
>>
2012
>>
Impala LS, Gas
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communications System Wiring Schematics
>>
High Speed GMLAN Serial Data
High Speed GMLAN Serial Data

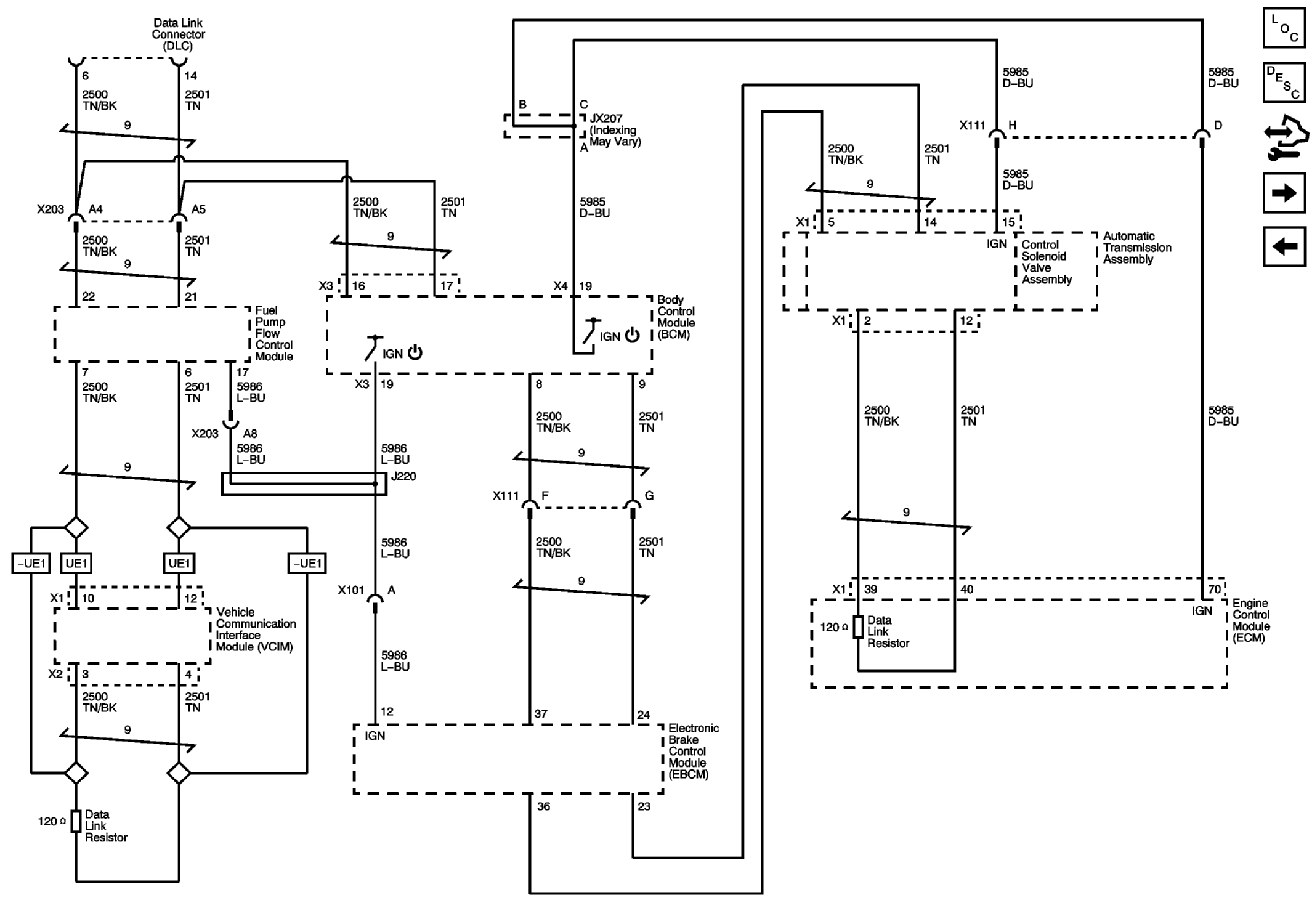

Fig 1: High Speed GMLAN Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
