Shift Lock Control Wiring Schematics
>>
Shift Lock Control System
Shift Lock Control System

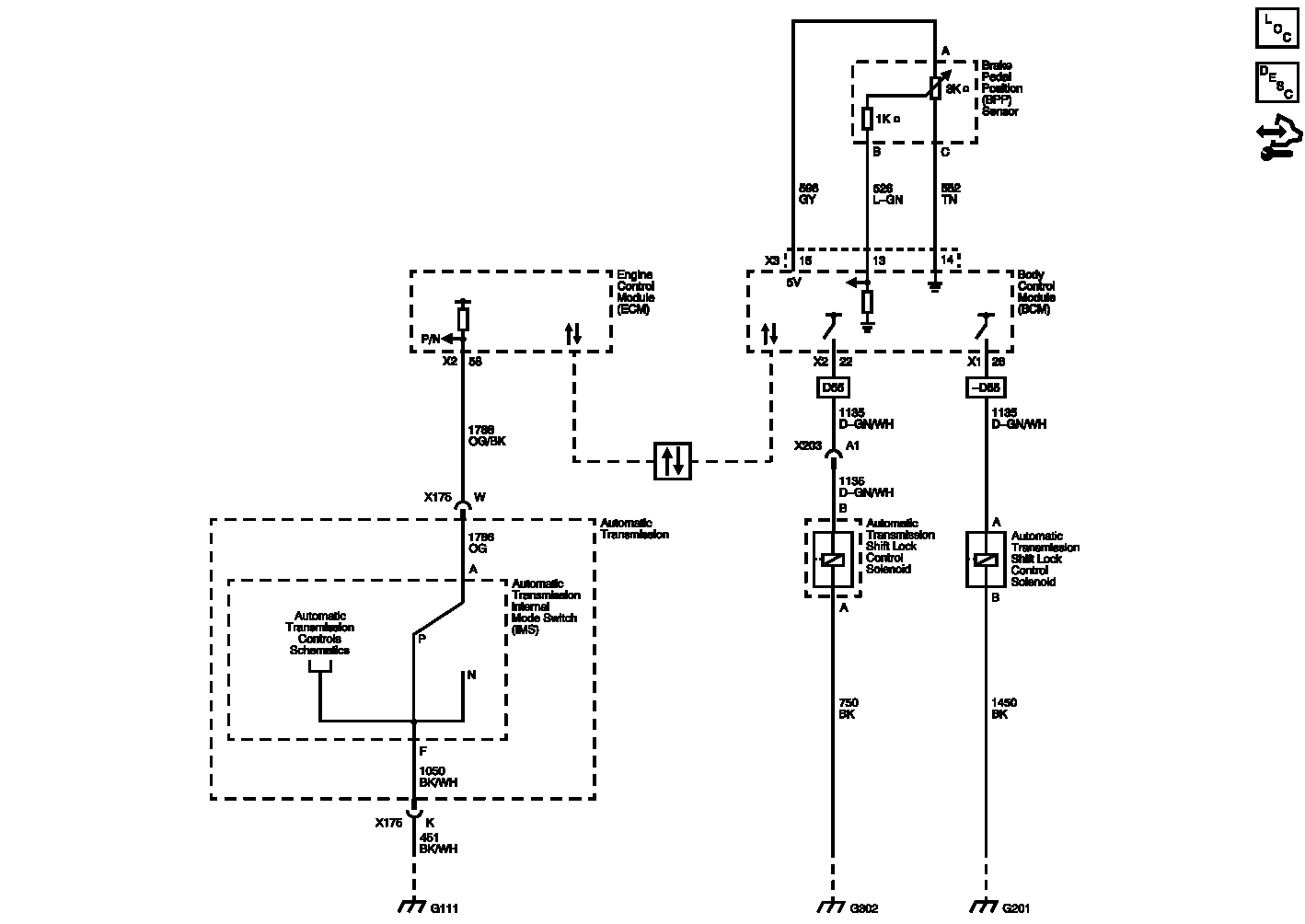

Fig 1: Shift Lock Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
