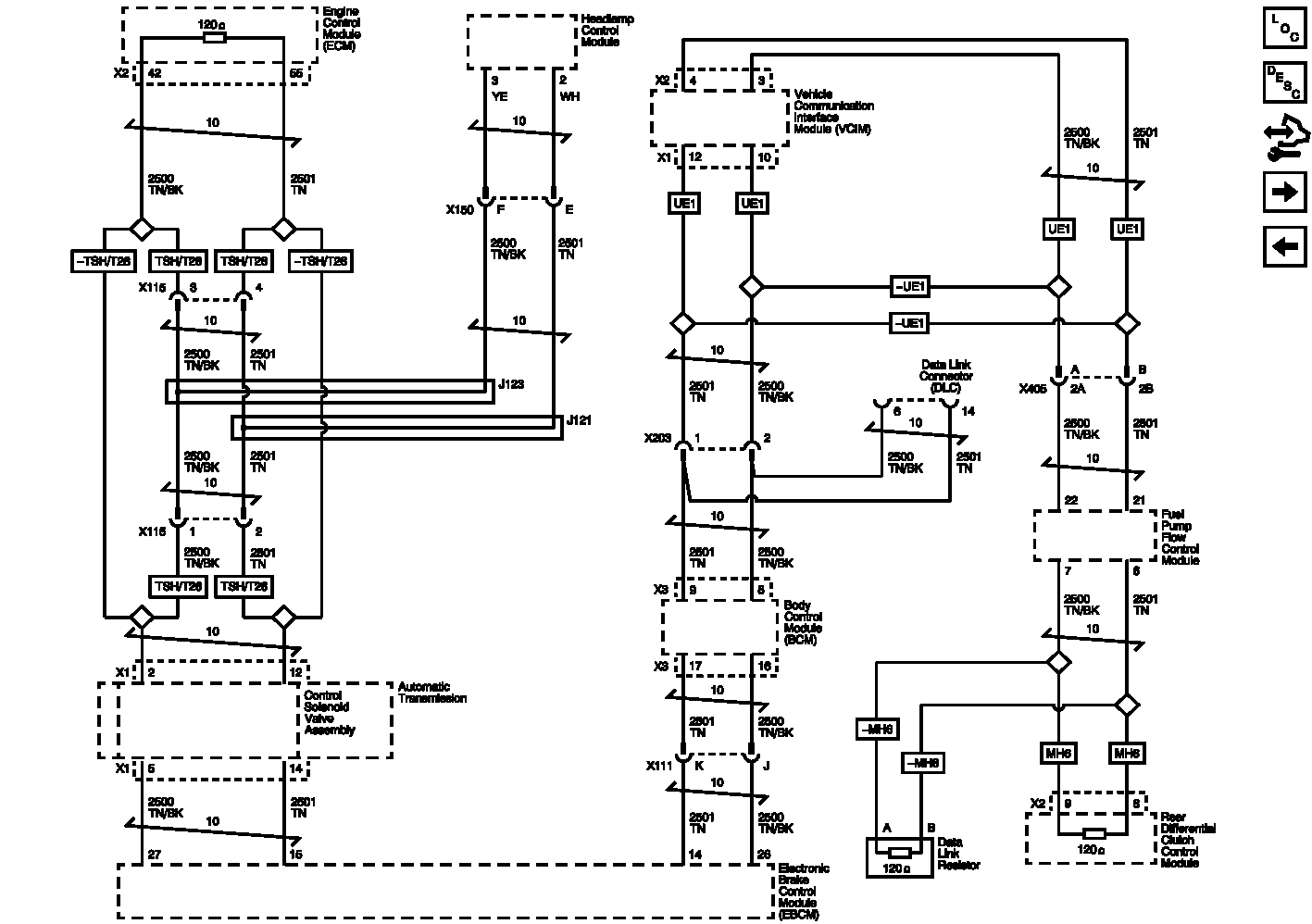

Home >> Chevrolet >> 2012 >> Traverse LS, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN
