Removal Procedure

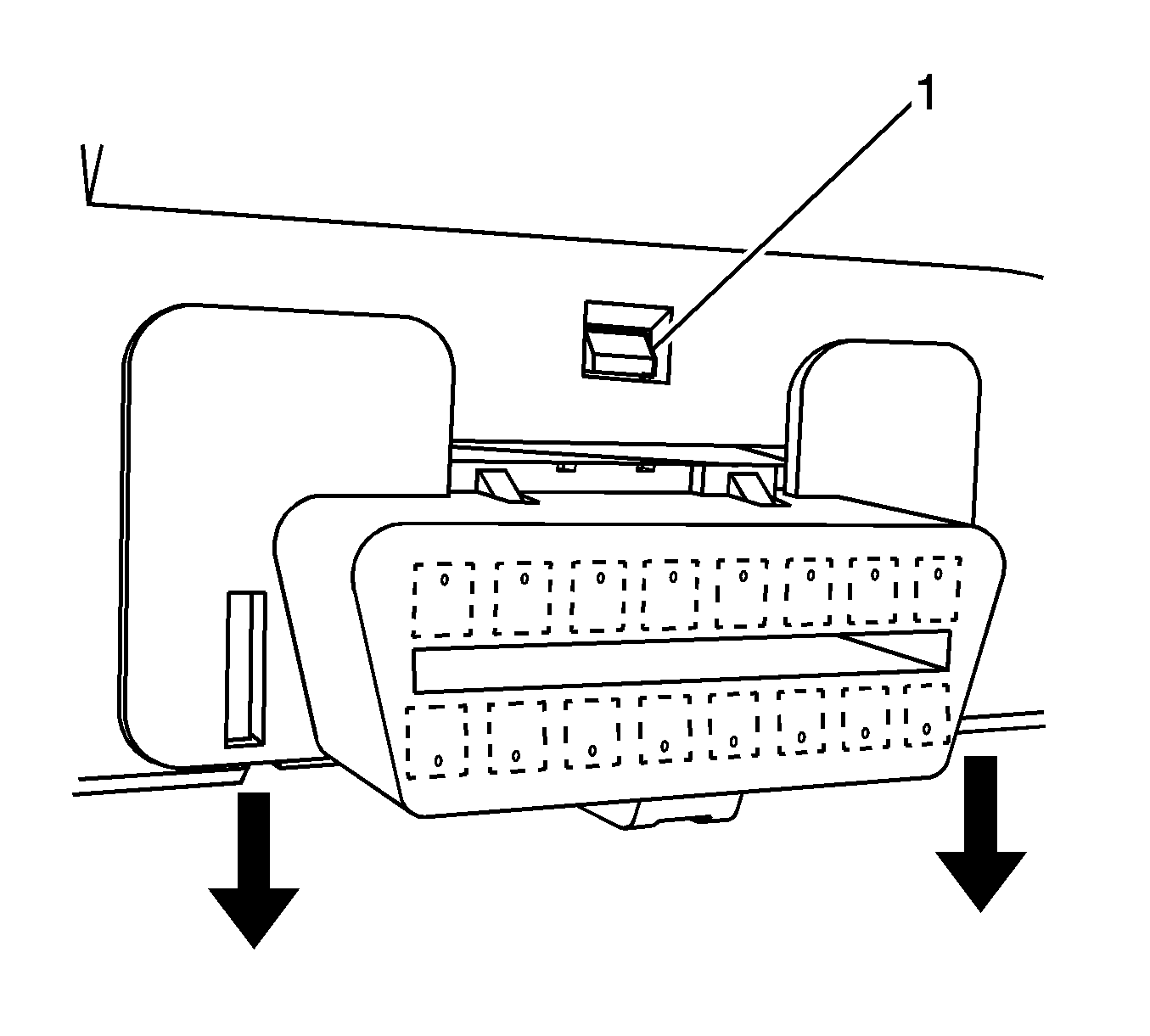

    Fig 1: View Of Data Link Connector (DLC)
    GM1532036Courtesy of GENERAL MOTORS COMPANY
  1. Disengage the data link connector (DLC) tab (1).
  2. Remove the DLC from the instrument panel (I/P) trim pad.
