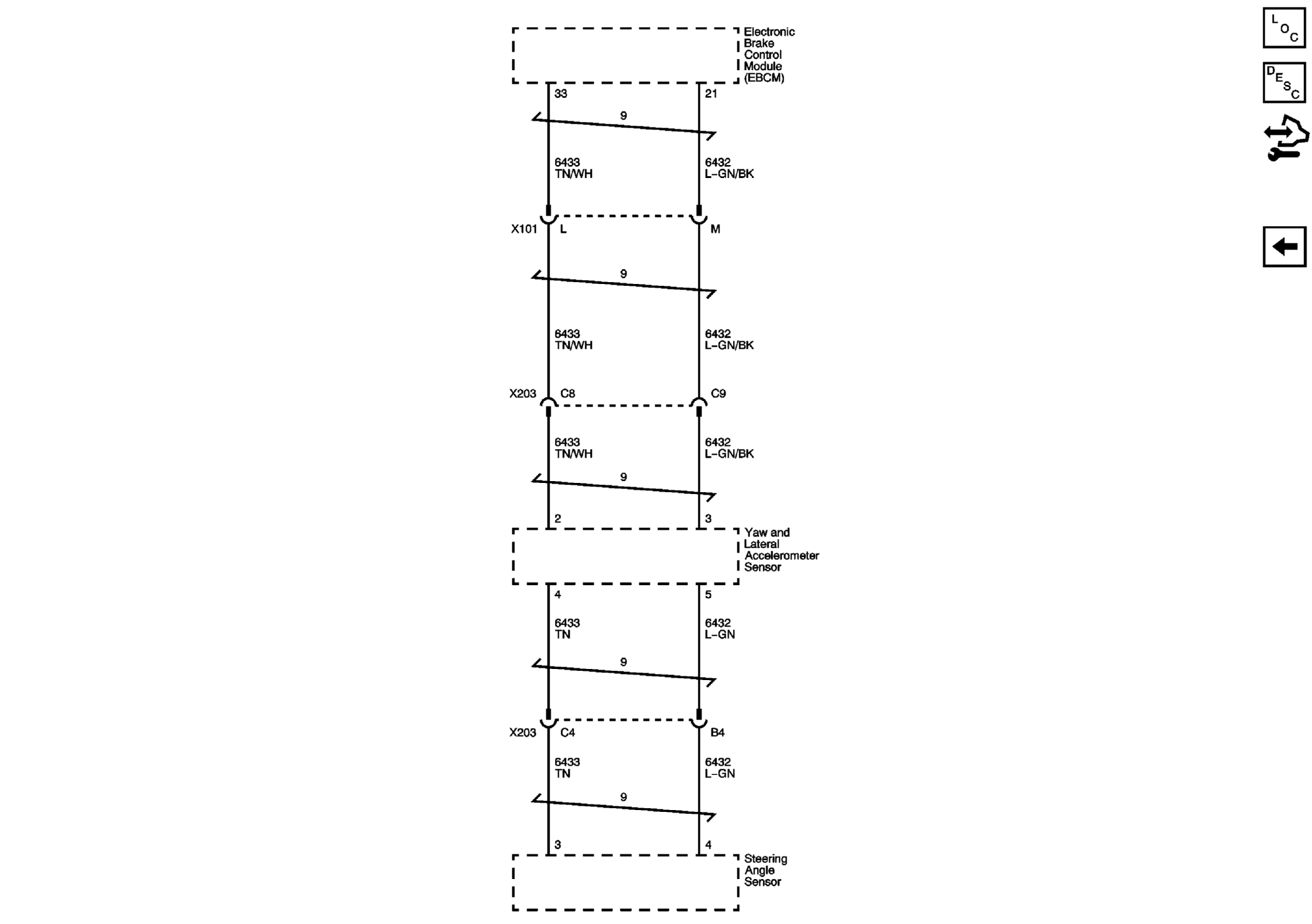

Home >> Chevrolet >> 2013 >> Impala LS >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> CAN Bus Serial Data
