Body Control Module Replacement

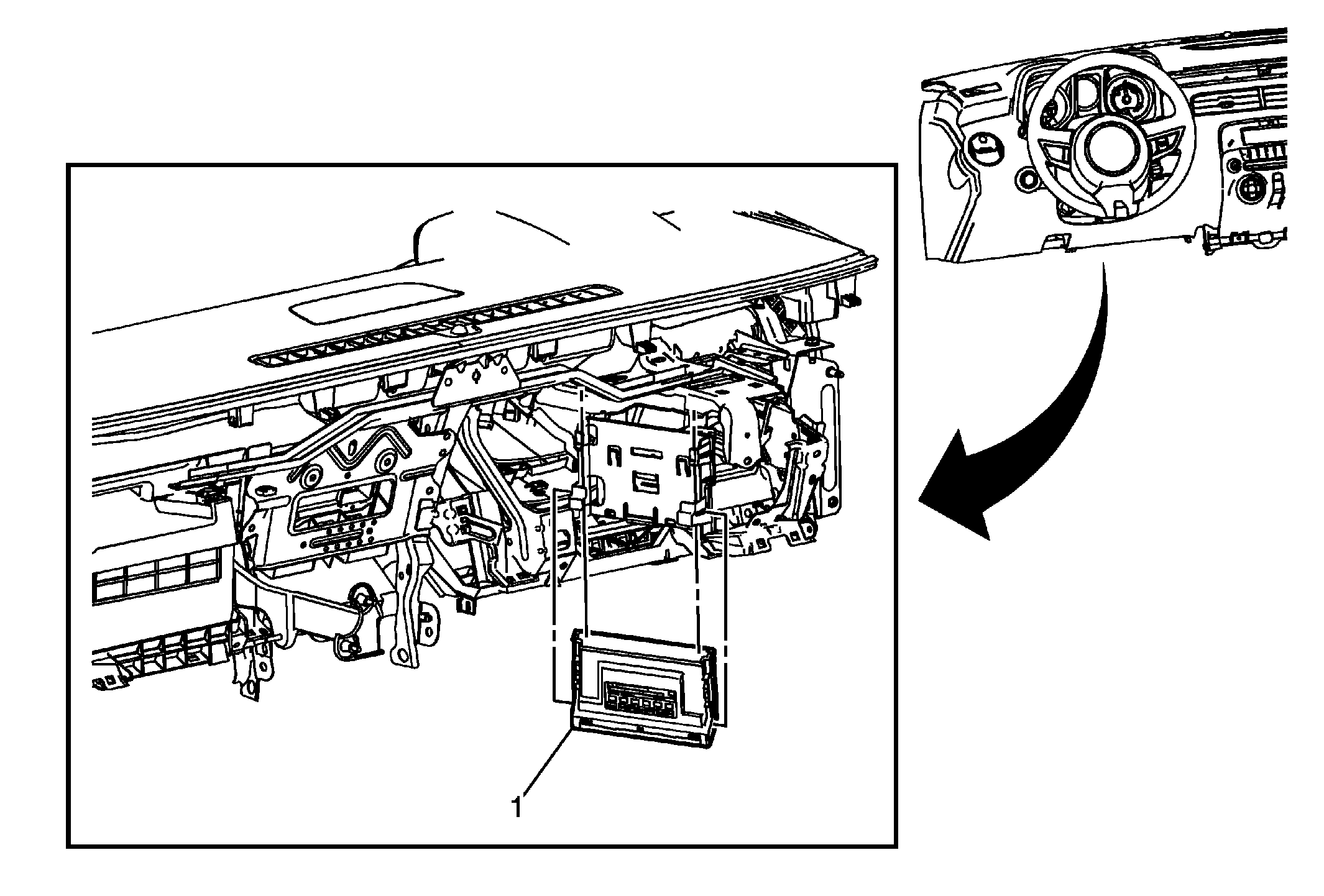

Fig 1: Body Control Module
GM2199091Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Body Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the body control module bracket tab and slide module out of the bracket.
  3. Refer to Control Module References for programming and set-up information.
