Serial Data Gateway Module Power and Ground

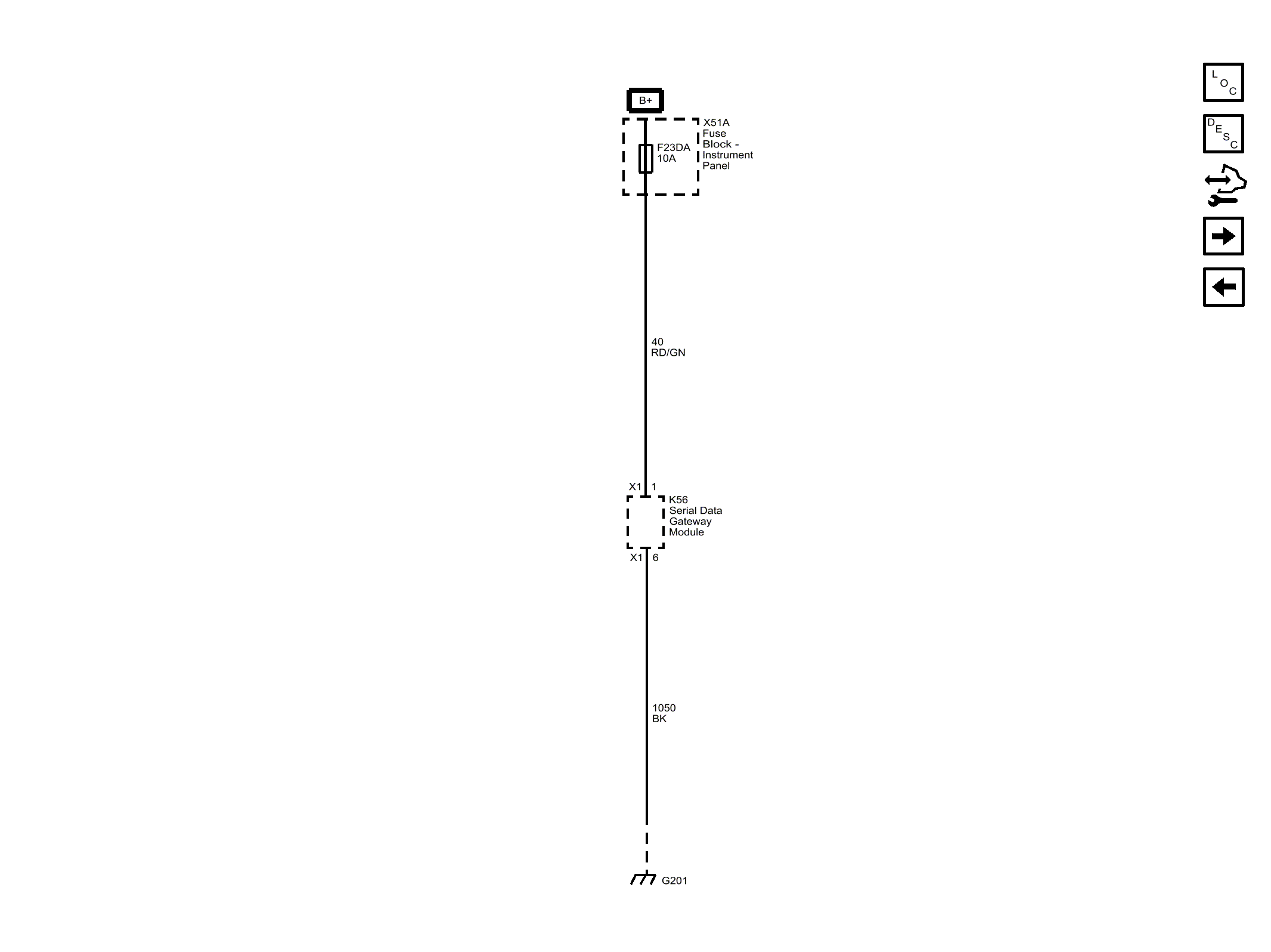

Fig 1: Serial Data Gateway Module Power and Ground

GM4421252

Courtesy of GENERAL MOTORS COMPANY
