Keyless Entry Control Module Replacement

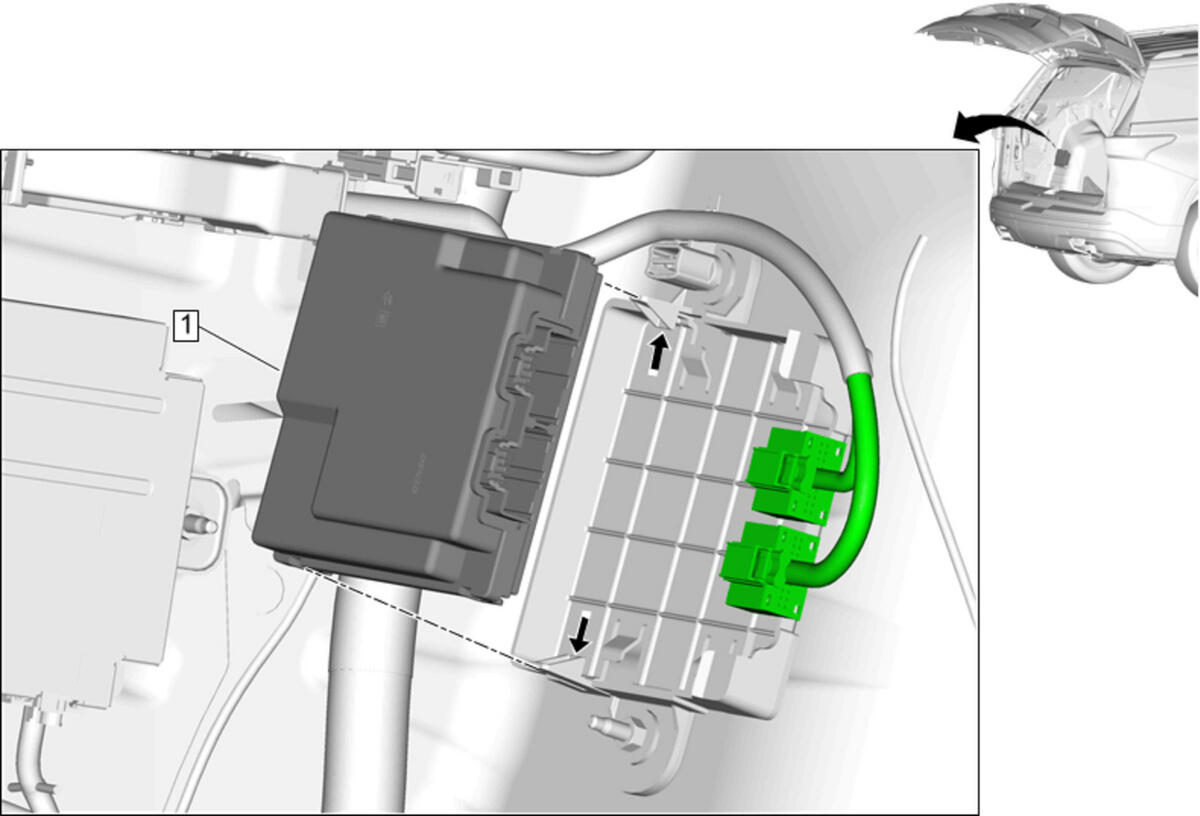

GM4754556
Callout Component Name
Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement (Left Side)
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
  3. Perform the necessary programming and setup procedure:Control Module References
