Service Point Locations

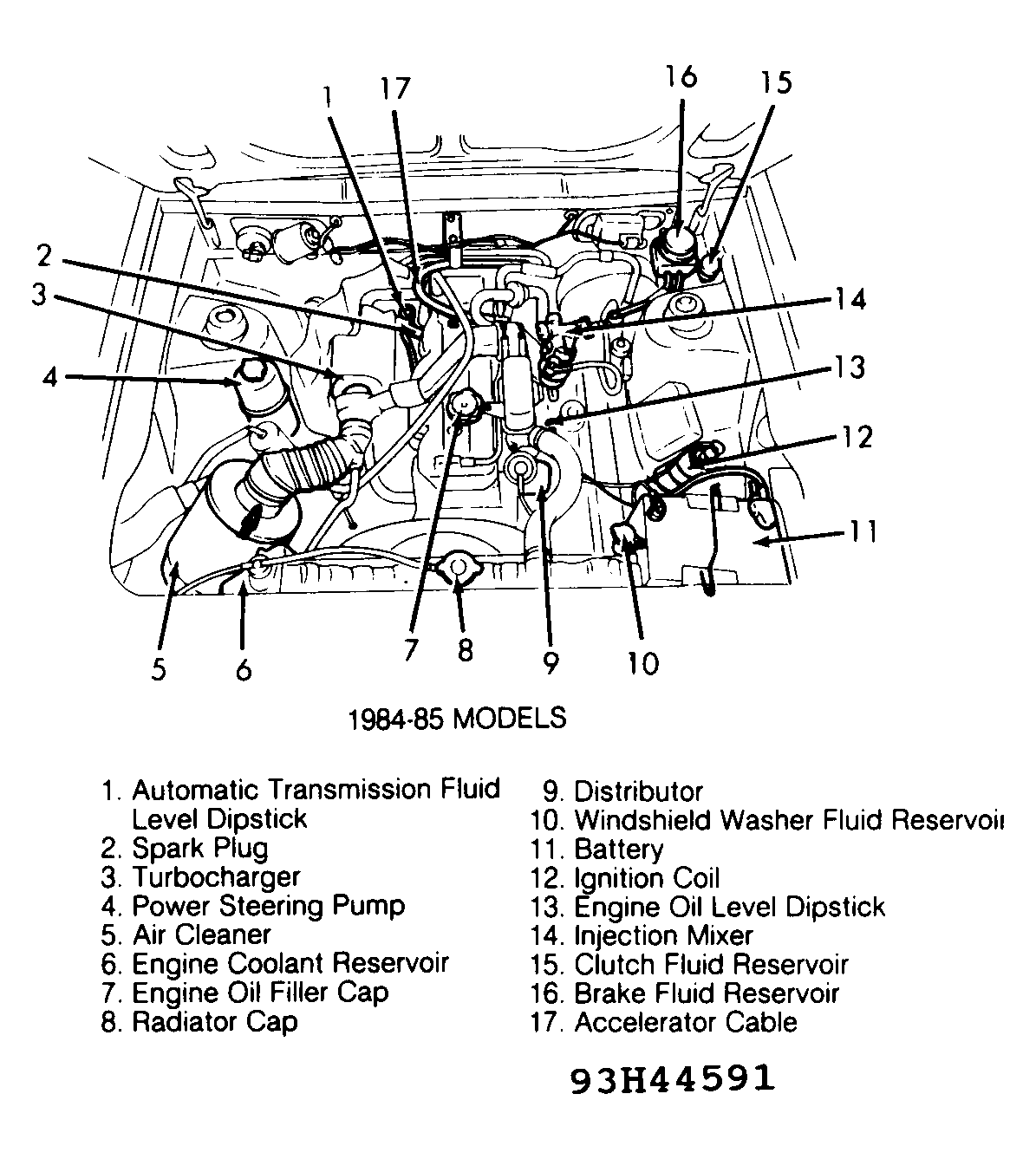

Fig 1: Engine Service Point Locations (1984-85)

G93H44591

Courtesy of CHRYSLER CORP.

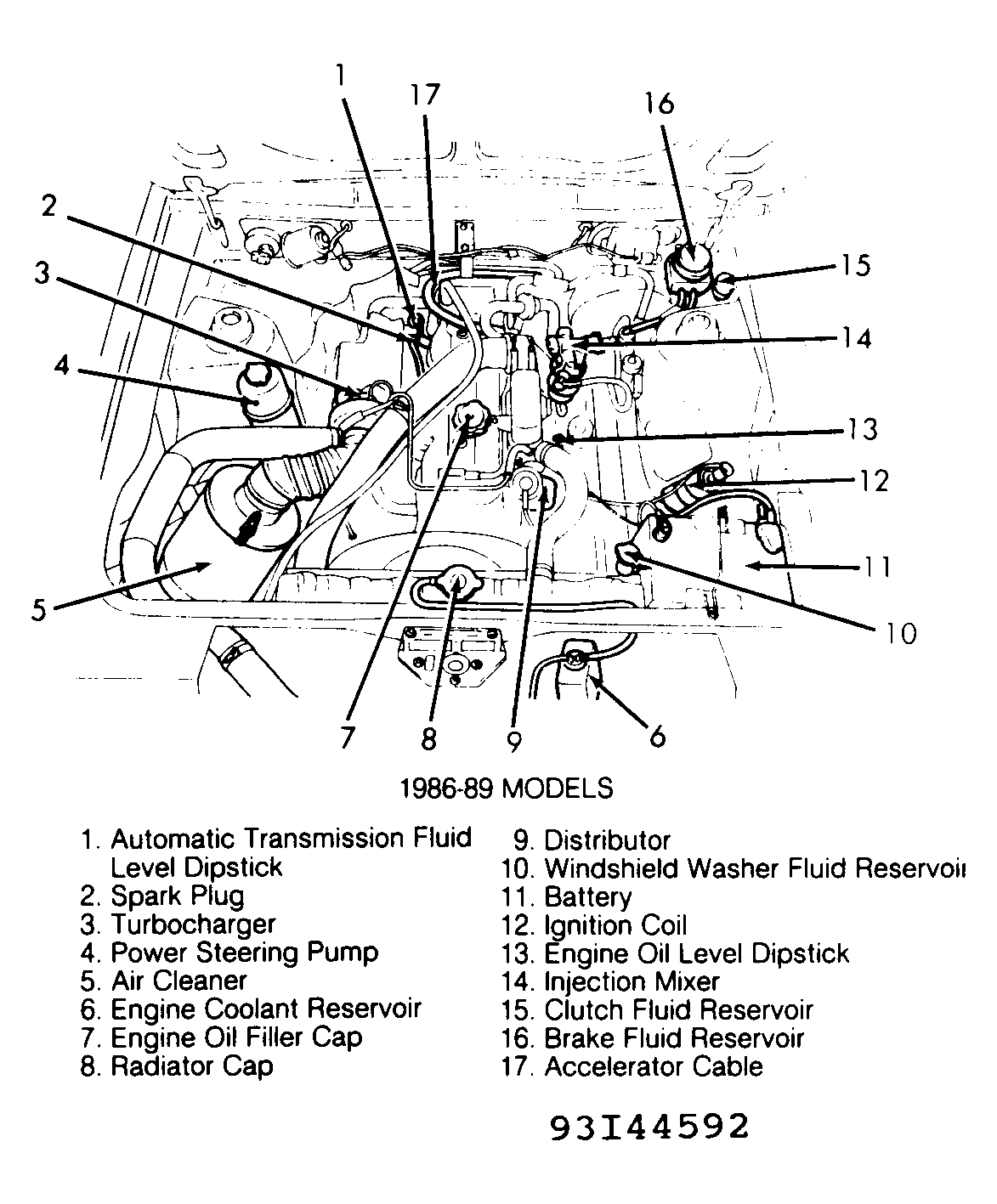

Fig 2: Engine Service Point Locations (1986-89)

G93I44592

Courtesy of CHRYSLER CORP.
