O2 Sensor Harness Connector End View

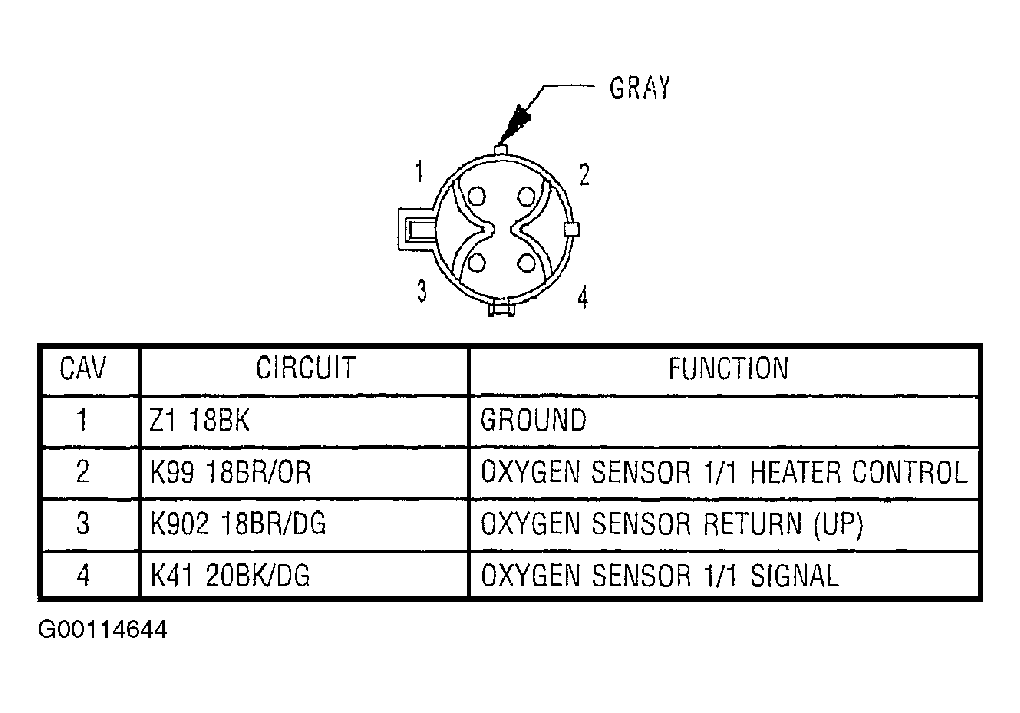

Fig 1: Identifying 1/1 O2 Sensor Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

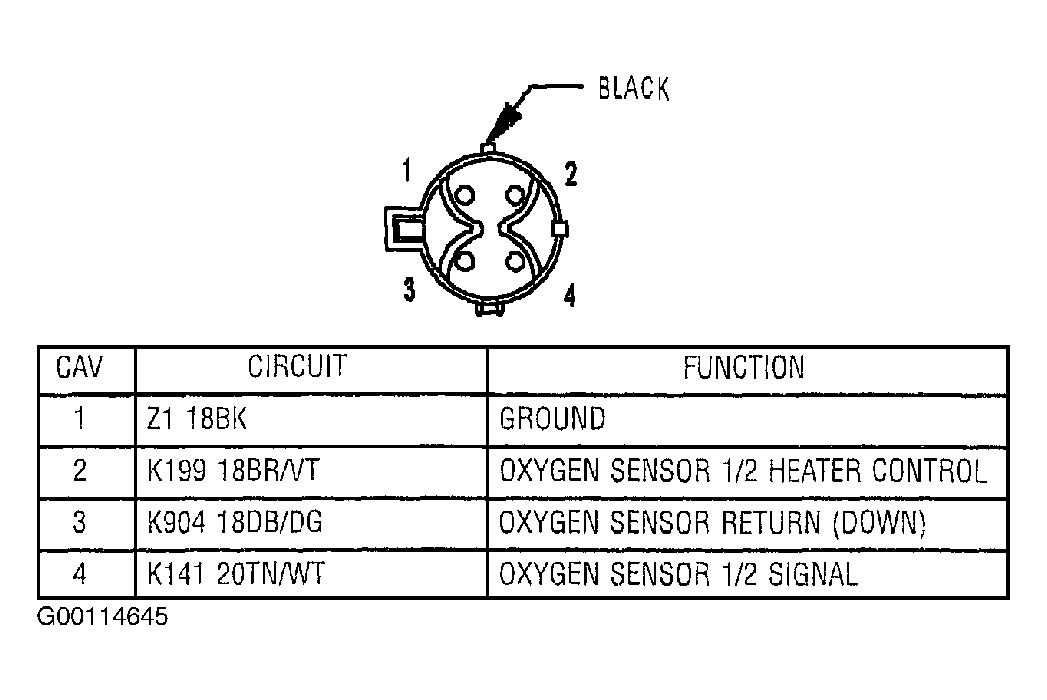

Fig 2: Identifying 1/2 O2 Sensor Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

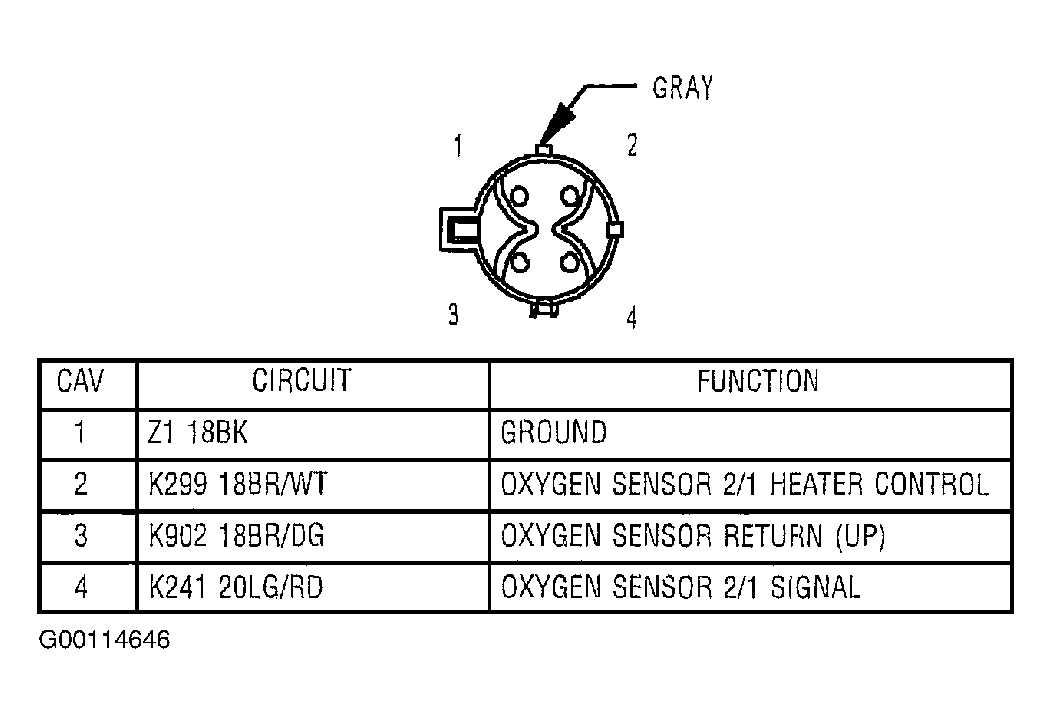

Fig 3: Identifying 2/1 O2 Sensor Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION

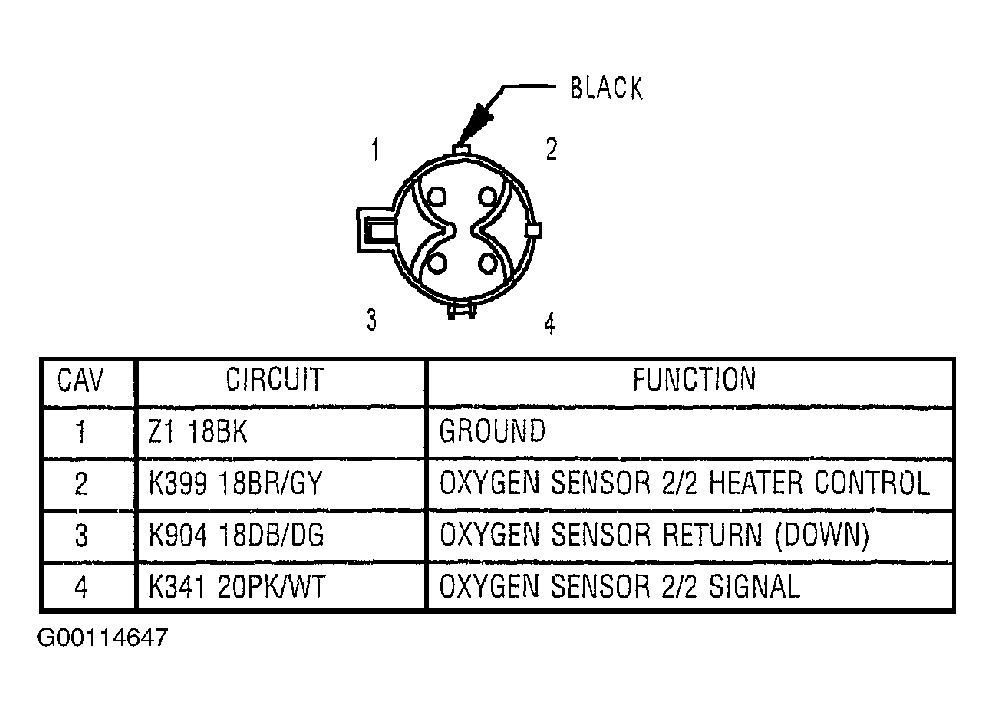

Fig 4: Identifying 2/2 O2 Sensor Harness Connector

Courtesy of DAIMLERCHRYSLER CORPORATION
