Manifold Tune Valve: Removal

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner housing. See 3.2L V6 article.
  3. Remove the air injection pump. See EMISSIONS CONTROL article.
  4. Disconnect the manifold tune valve harness connector at the manifold tune valve solenoid.
  5. Disconnect the vacuum line.
  6. Remove the left hand air pump switch over valve. See AIR INJECTION in EMISSIONS CONTROL article.
  7. Remove the nut retaining the manifold tune valve to the valve rod.
  8. Remove the manifold tune valve (2) and the solenoid (1) from the intake.

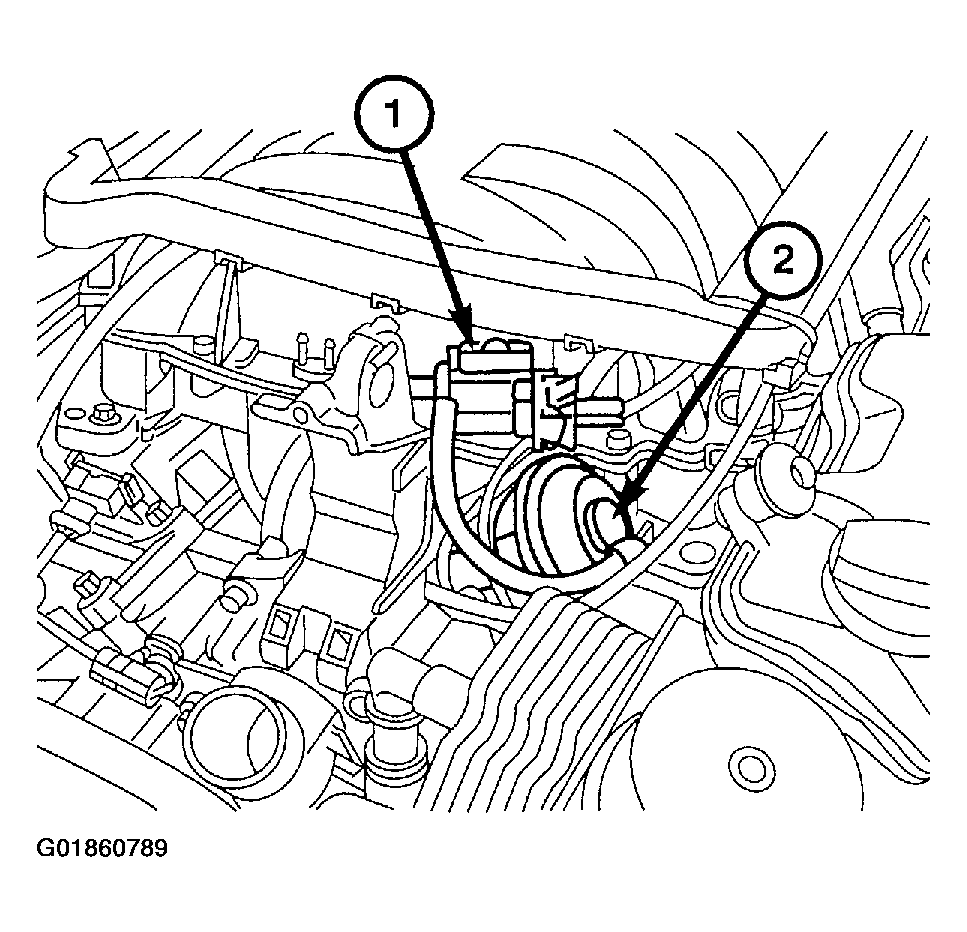

    Fig 1: Removing Manifold Tune Valve & Solenoid From Intake
    G01860789Courtesy of DAIMLERCHRYSLER CORP.
