Home >> Chrysler >> 2004 >> Crossfire Standard >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Knock Sensor >> Removal

Knock Sensor: Removal

  1. Remove the intake manifold. See 3.2L V6 article.
  2. Disconnect the wire harness connectors at the knock sensors (1) and remove the retaining bolts. Remove the knock sensors from the engine block.

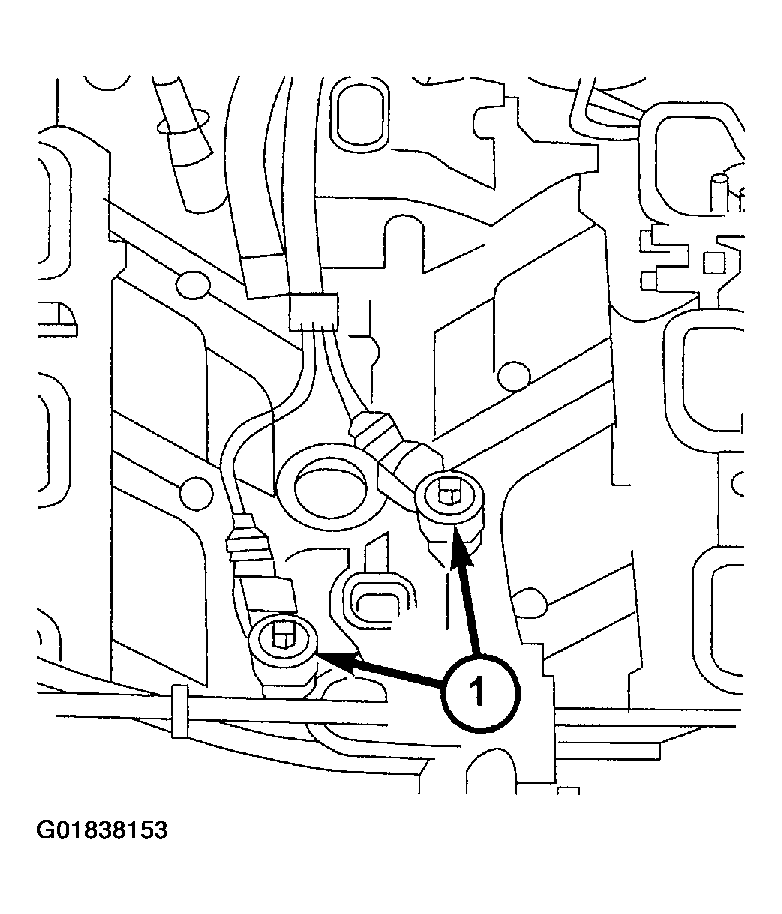

    Fig 1: Removing Knock Sensors
    G01838153Courtesy of DAIMLERCHRYSLER CORP.
