Switchover Solenoid: Installation

  1. Position the air pump switchover solenoid (2) above air pump switchover solenoid mounting bracket (3) and lower until air pump switchover solenoid locking tab (1) snaps into place.

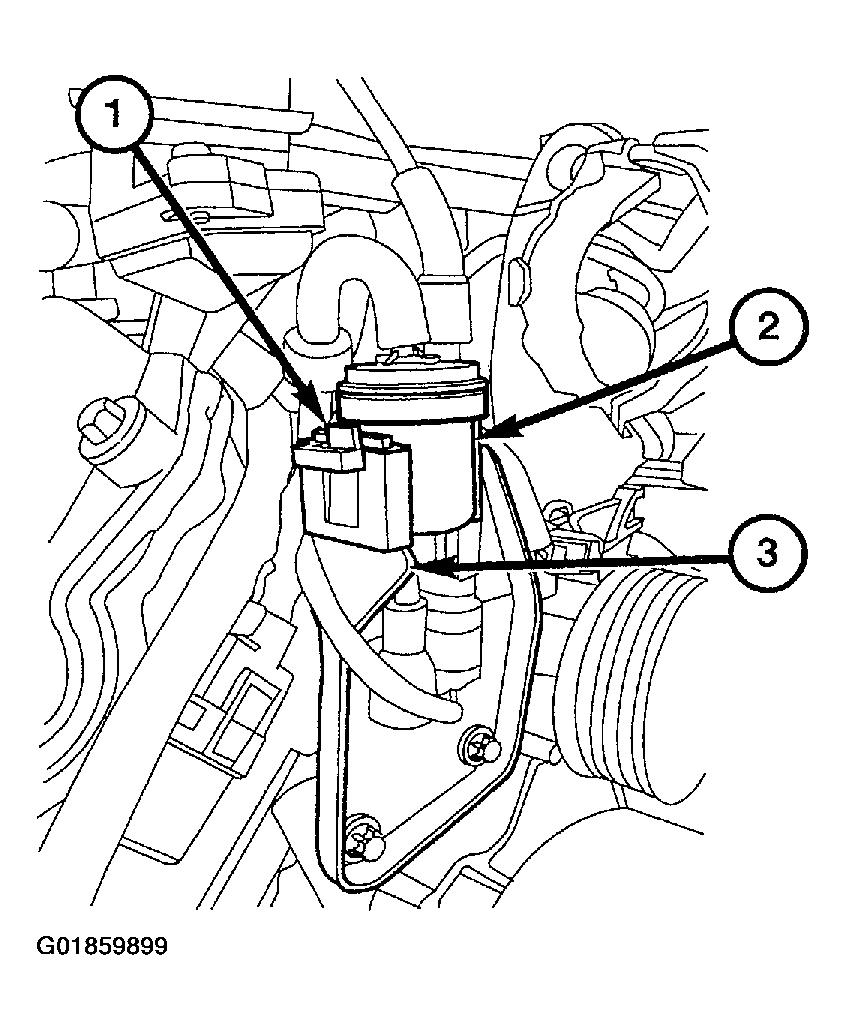

    Fig 1: Installing Switchover Solenoid
    G01859899Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the vacuum lines (1).
  3. Connect the air pump switchover solenoid harness connector (2).

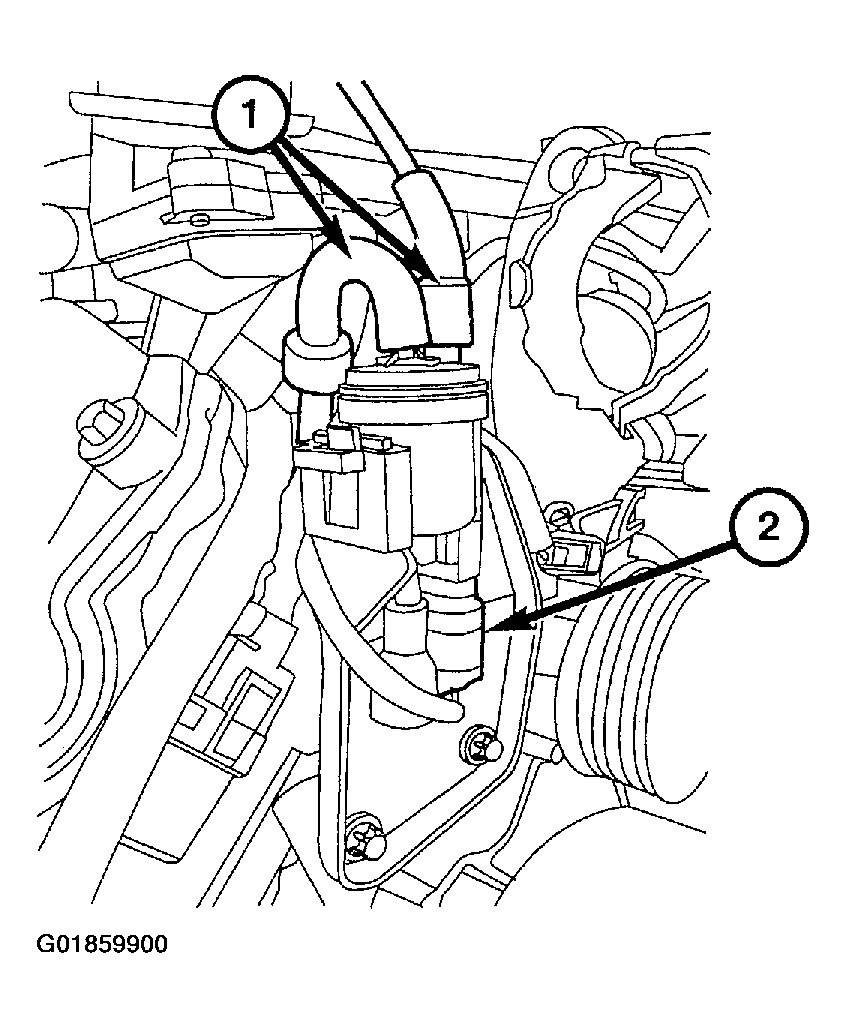

    Fig 2: Connecting Switchover Solenoid
    G01859900Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the air cleaner housing.
  5. Connect the negative battery cable.
