Exhaust Gas RECIRCULATION: Tube: Installation

  1. Loosely install the EGR tube flange nut (2) to the EGR valve.

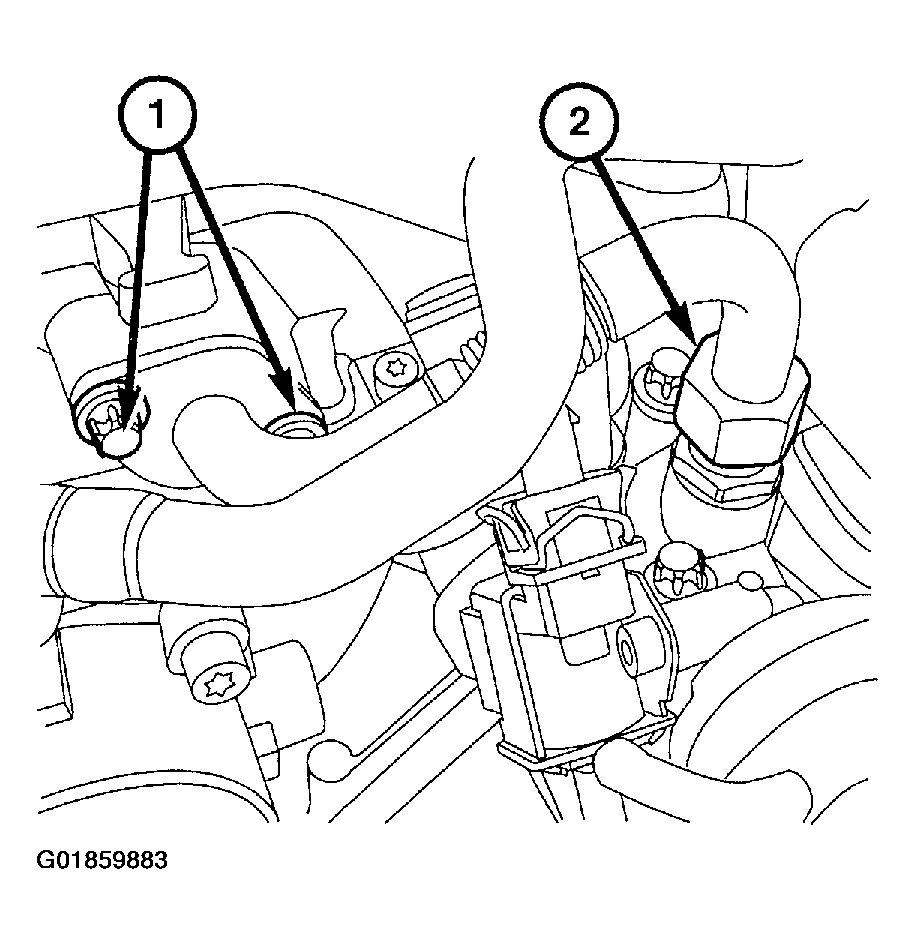

    Fig 1: Installing EGR Tube Flange Nut & Bolts
    G01859883Courtesy of DAIMLERCHRYSLER CORP.
  2. Position the new gasket between tube and intake manifold.
  3. Install the tube bolts (1) to intake manifold and tighten to 31 N.m (23 ft. lbs.).
  4. Tighten the EGR tube flange nut (2) to 11 N.m (95 in. lbs.).
  5. Install the air cleaner housing.
