Speed Control Servo

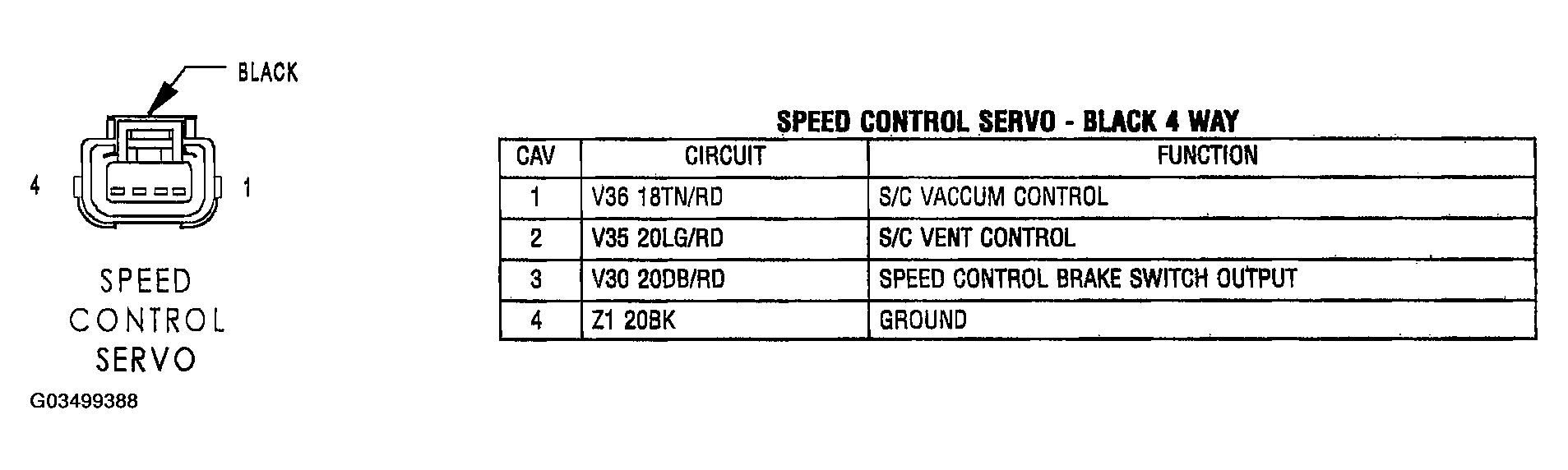

Fig 1: Identifying Speed Control Servo Connector
G03499388Courtesy of DAIMLERCHRYSLER CORP.
