Coil On Plug Harness Connector End View

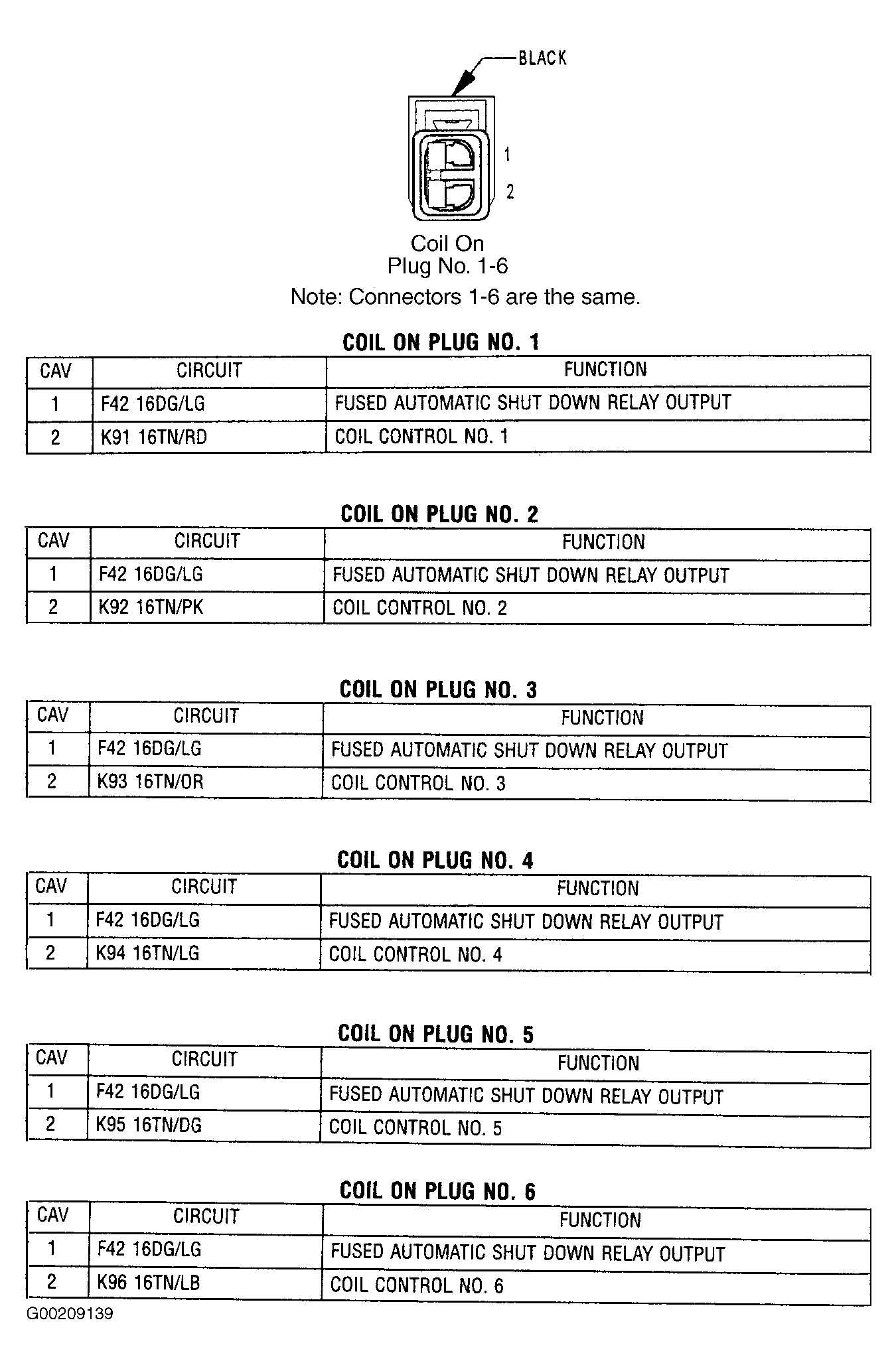

Fig 1: Identifying Coil On Plug No. 1-6 Harness Connectors

G00209139

Courtesy of CHRYSLER CORP.
