Junction Block Components & Circuits

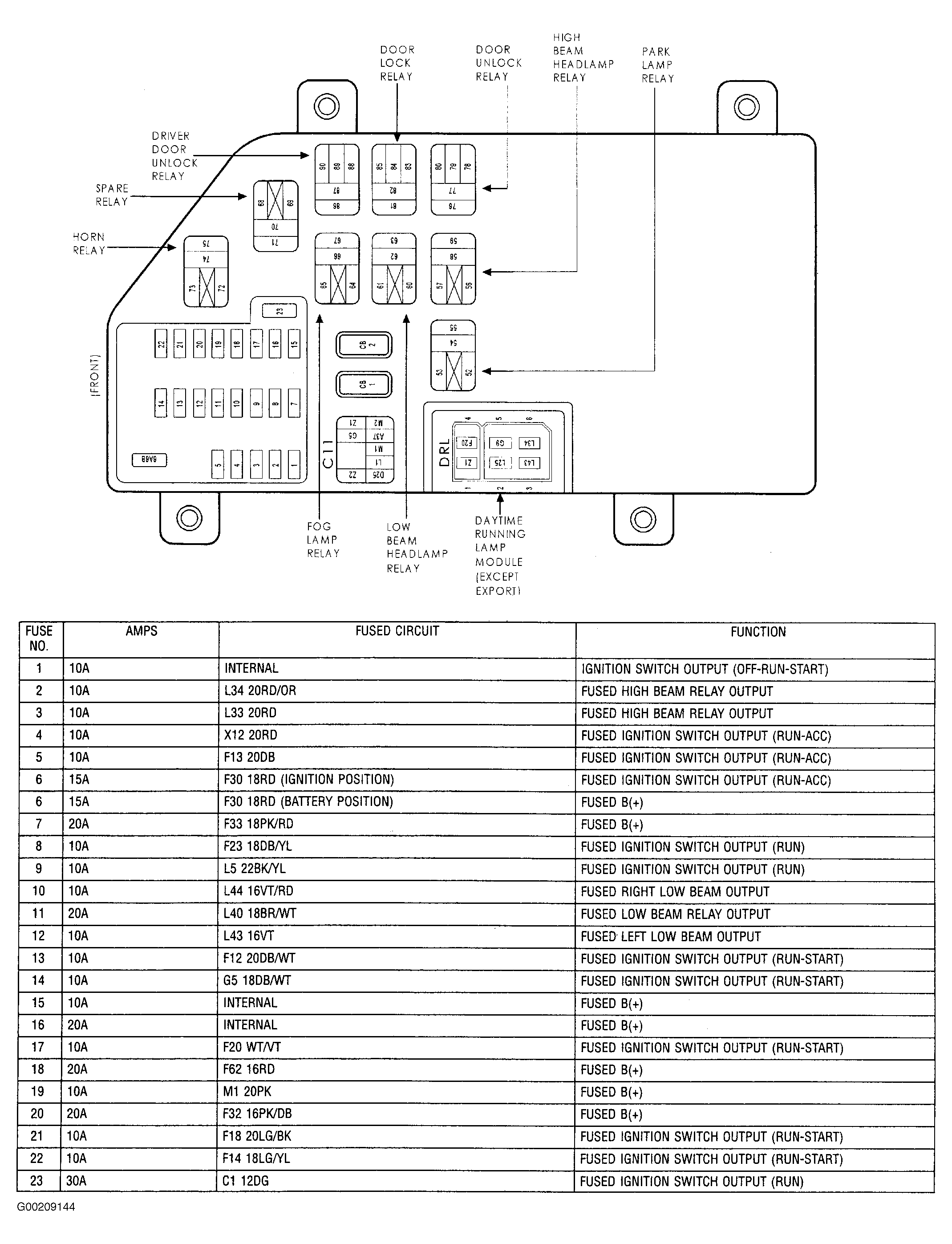

Fig 1: Identifying Junction Block Components & Circuits

G00209144

Courtesy of CHRYSLER CORP.
