Component Locations: Sensors: 2.7L

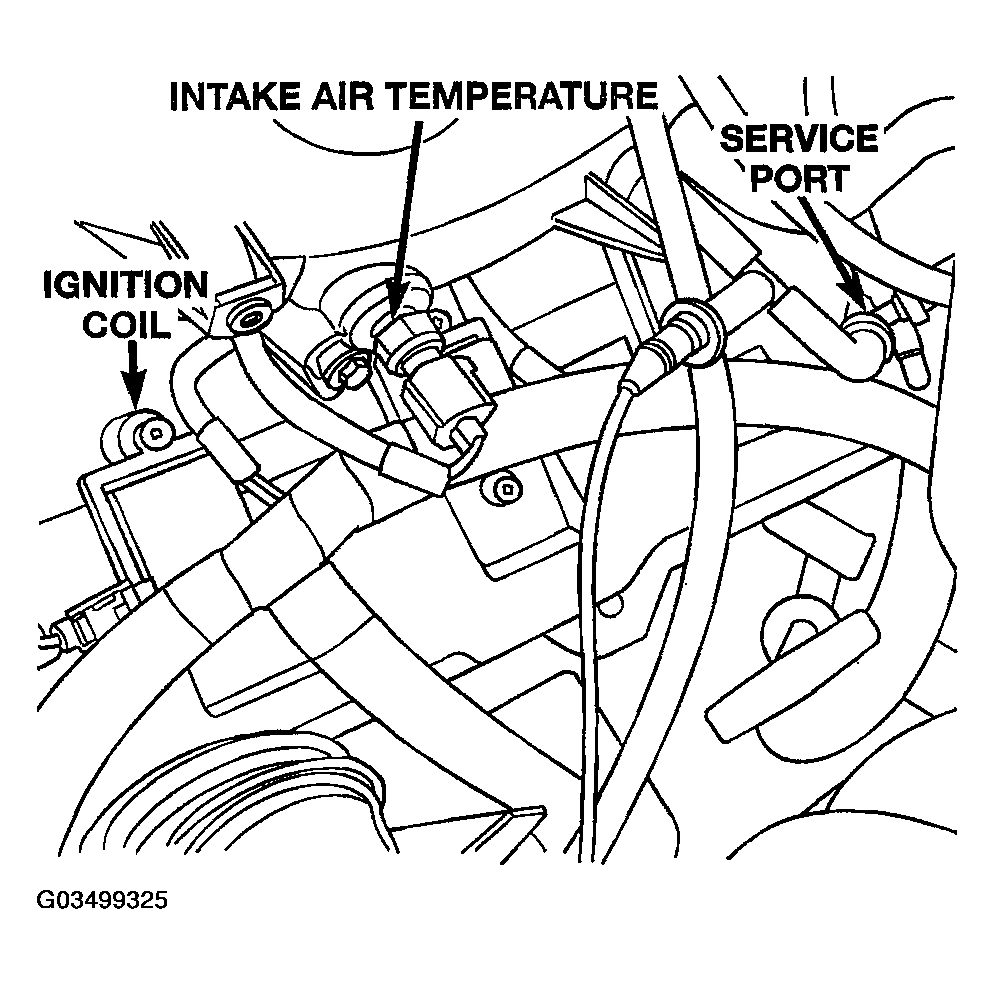

Fig 1: Locating IAT Sensor (2.7L)
G03499325Courtesy of DAIMLERCHRYSLER CORP.

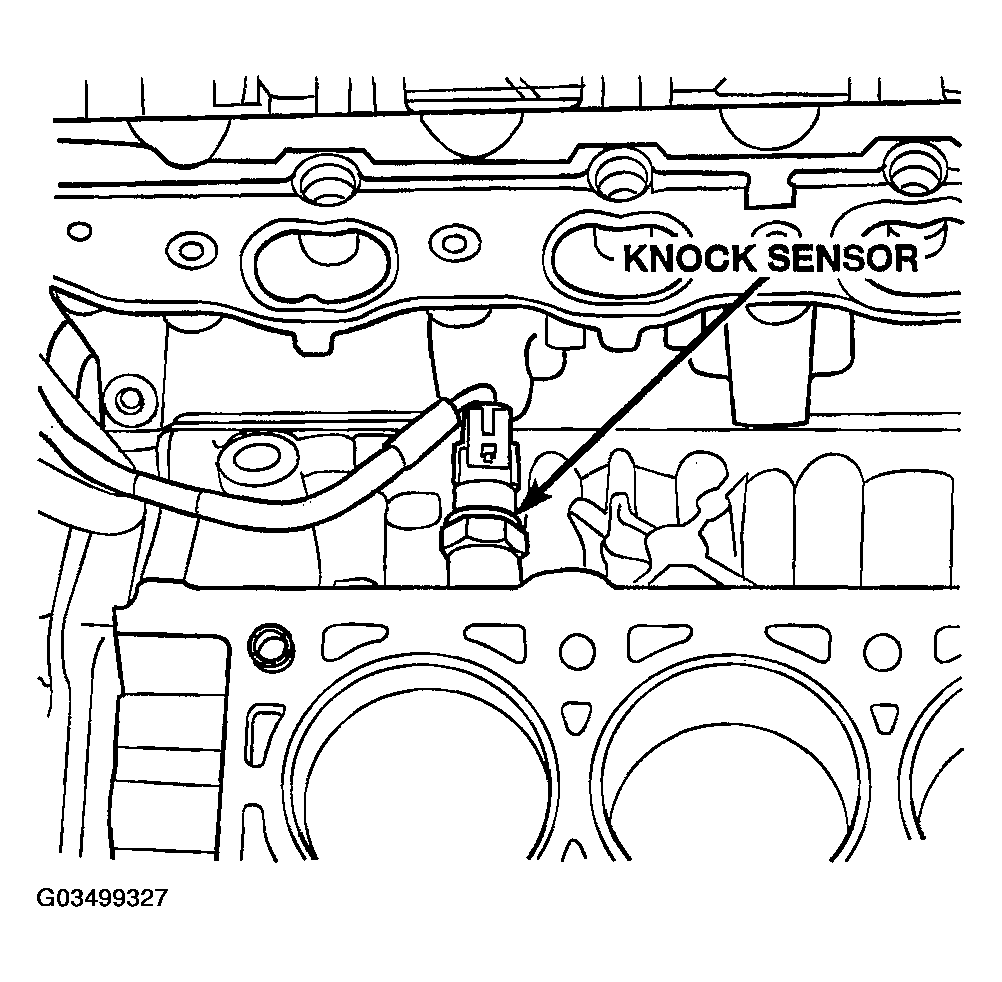

Fig 2: Locating Knock Sensor (2.7L)
G03499327Courtesy of DAIMLERCHRYSLER CORP.

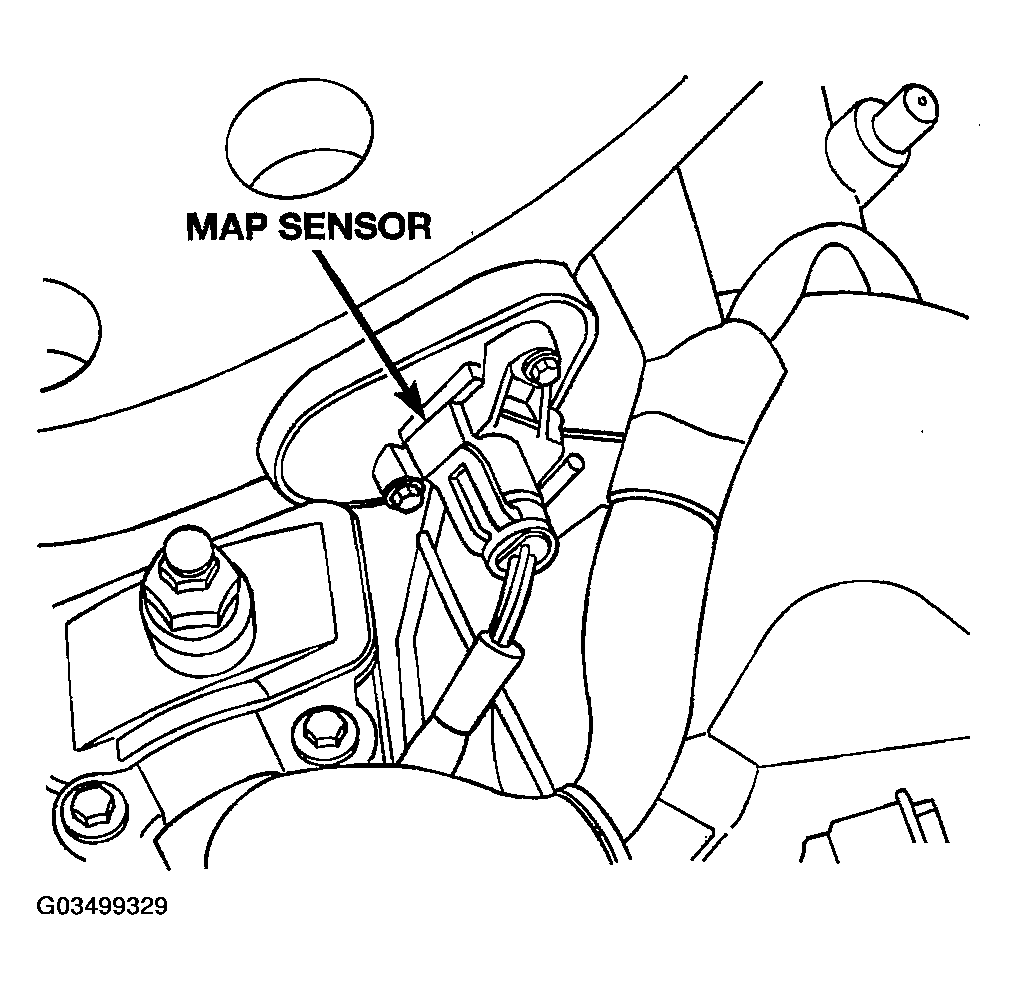

Fig 3: Locating MAP Sensor (2.7L)
G03499329Courtesy of DAIMLERCHRYSLER CORP.

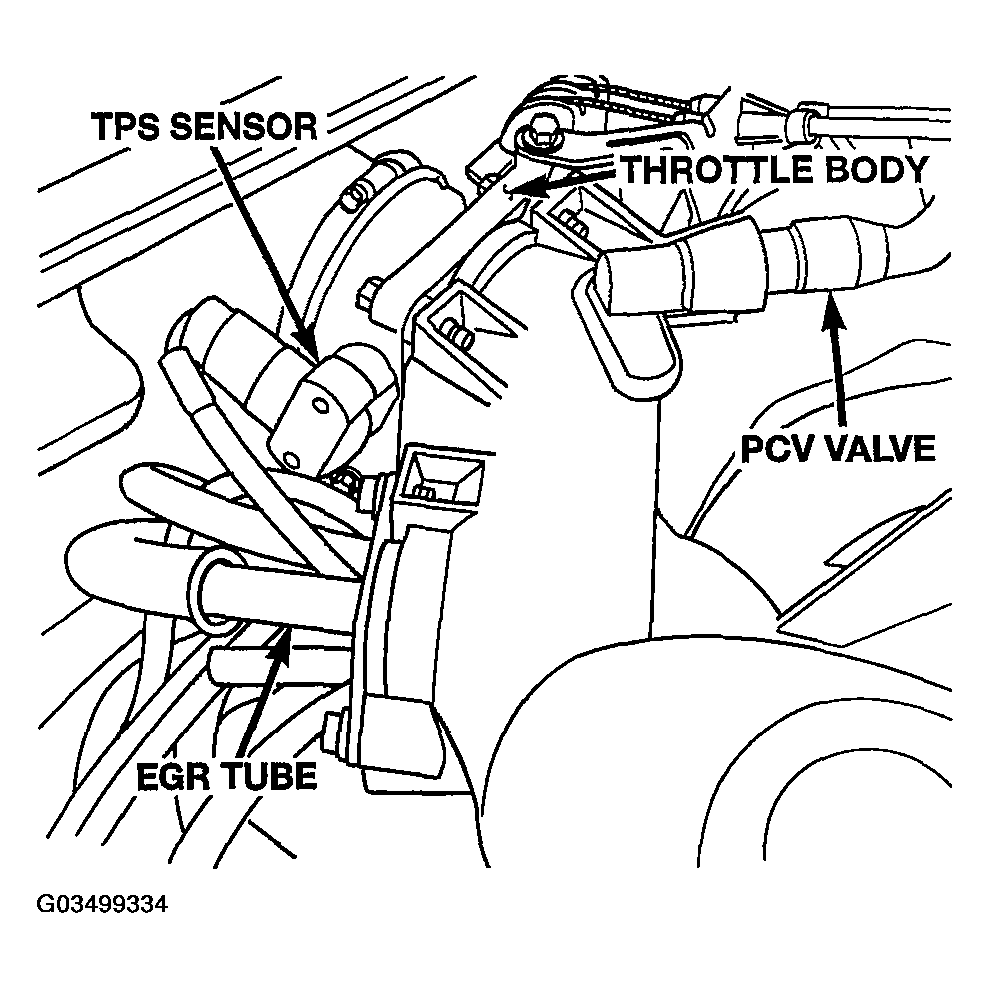

Fig 4: Locating TP Sensor (2.7L)
G03499334Courtesy of DAIMLERCHRYSLER CORP.
