Home >> Chrysler >> 2004 >> Intrepid SXT >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Component Locations >> Sensors >> Notes

Component Locations: Sensors: Notes

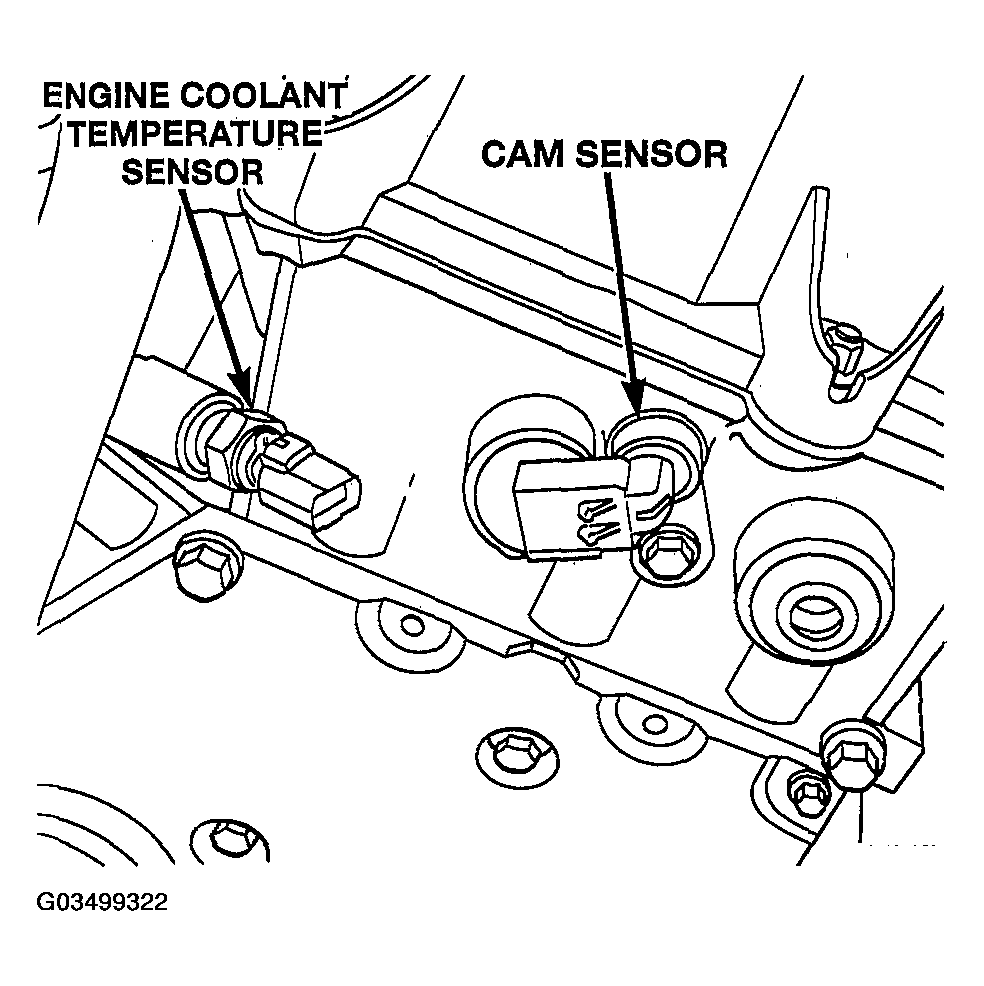

Fig 1: Locating ECT & CAM Sensors
G03499322Courtesy of DAIMLERCHRYSLER CORP.

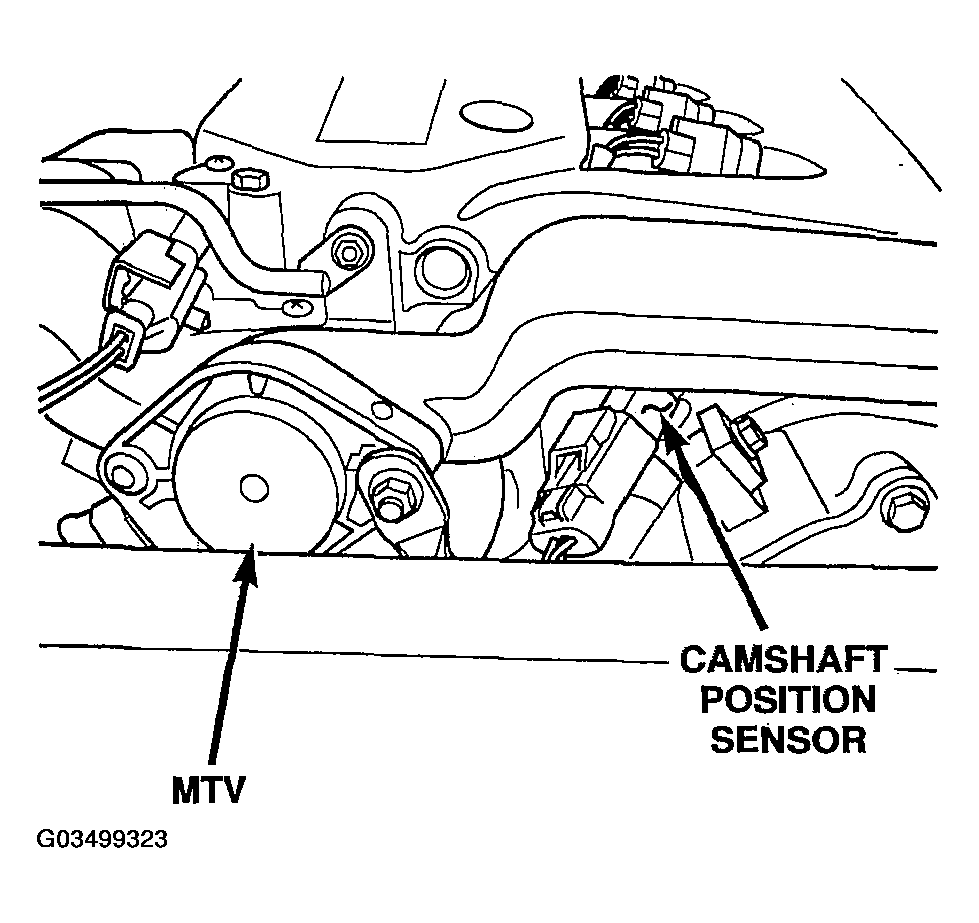

Fig 2: Locating Camshaft Position Sensor
G03499323Courtesy of DAIMLERCHRYSLER CORP.

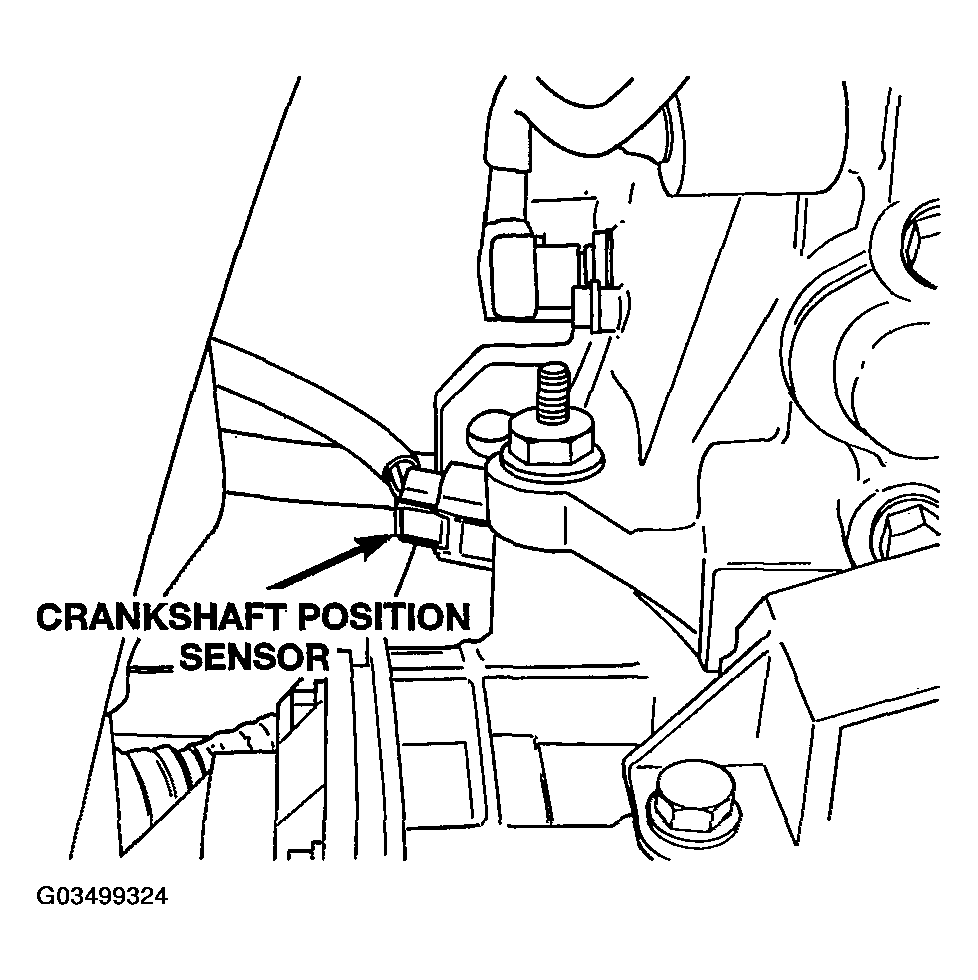

Fig 3: Locating Crankshaft Position Sensor
G03499324Courtesy of DAIMLERCHRYSLER CORP.
