Home >> Chrysler >> 2004 >> Intrepid SXT >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Connector PINOUTS >> A/C Compressor Clutch

A/C Compressor Clutch

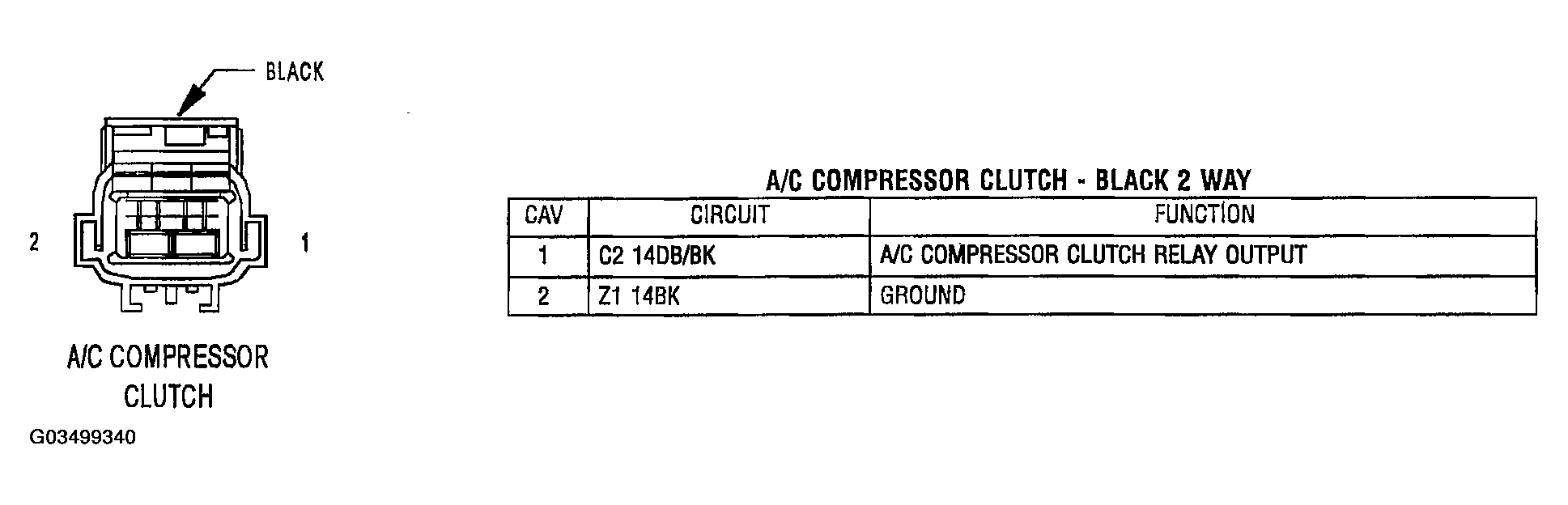

Fig 1: Identifying A/C Compressor Clutch Connector

G03499340

Courtesy of DAIMLERCHRYSLER CORP.
