EVAP/Purge Solenoid
EVAP/Purge Solenoid

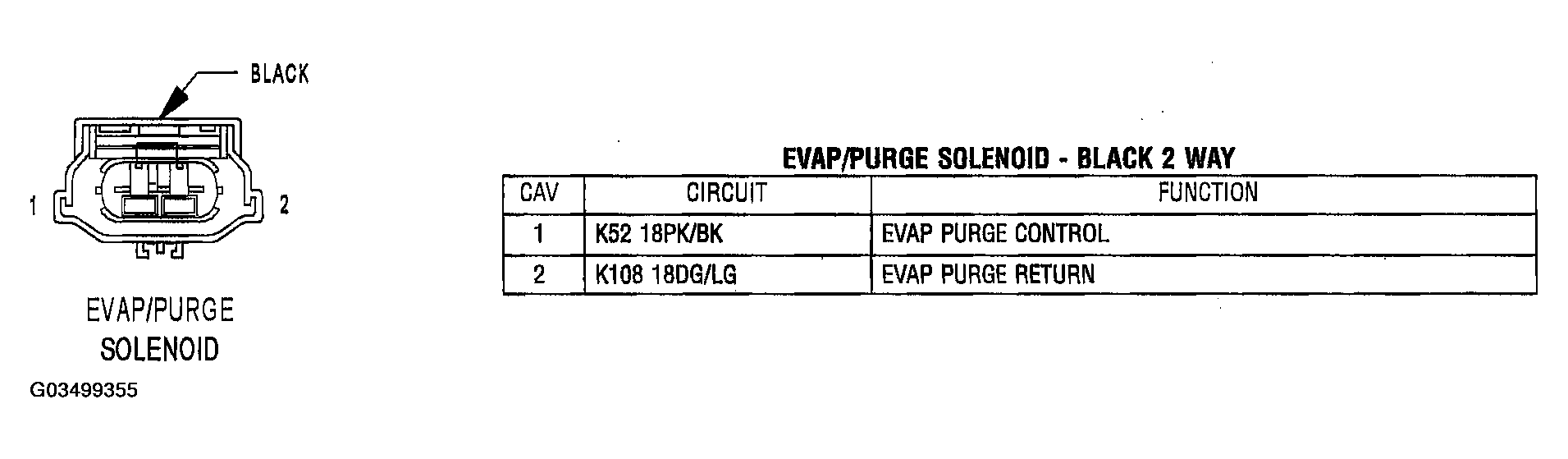

Fig 1: Identifying EVAP/Purge Solenoid Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
