Fuel Injector No. 3

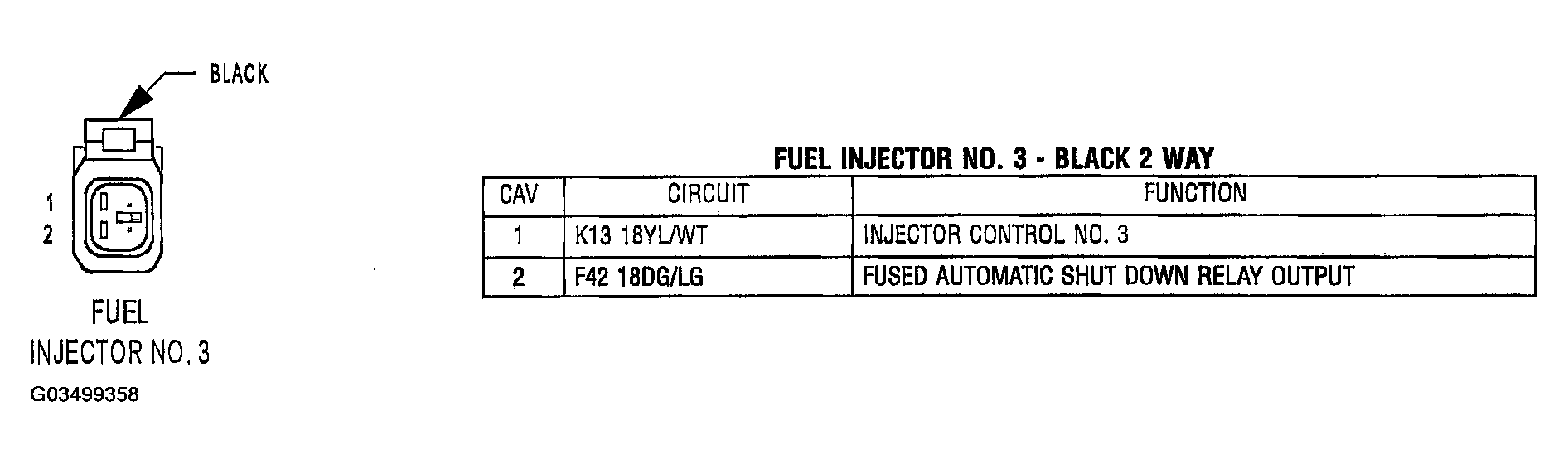

Fig 1: Identifying Fuel Injector No. 3 Sensor Connector

G03499358

Courtesy of DAIMLERCHRYSLER CORP.
