Fuel Pump Module
Fuel Pump Module

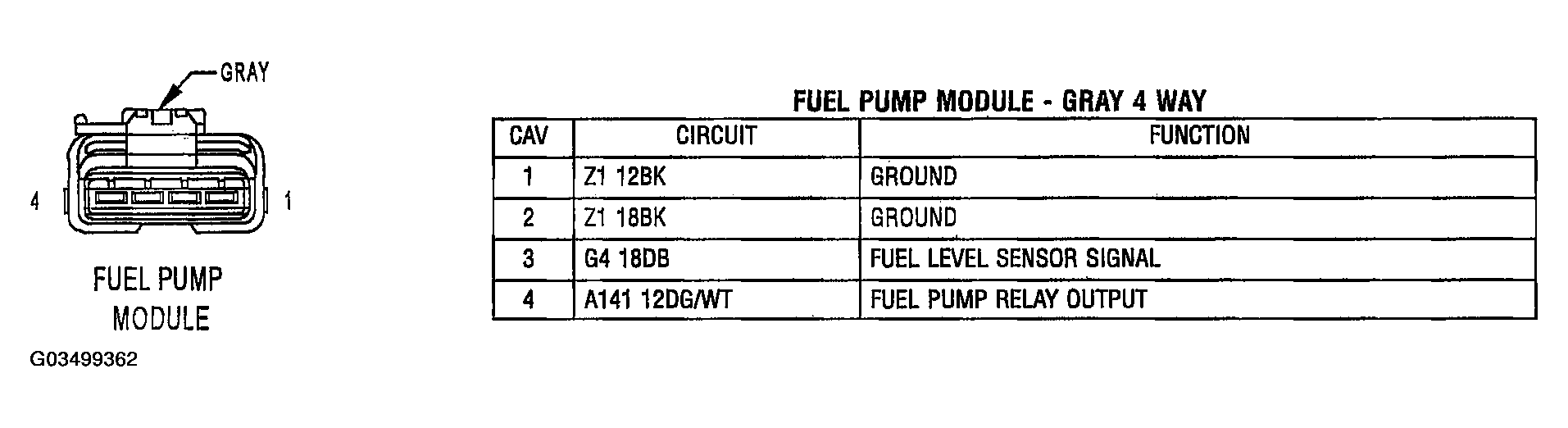

Fig 1: Identifying Fuel Pump Module Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
