Left Speed Control Switch

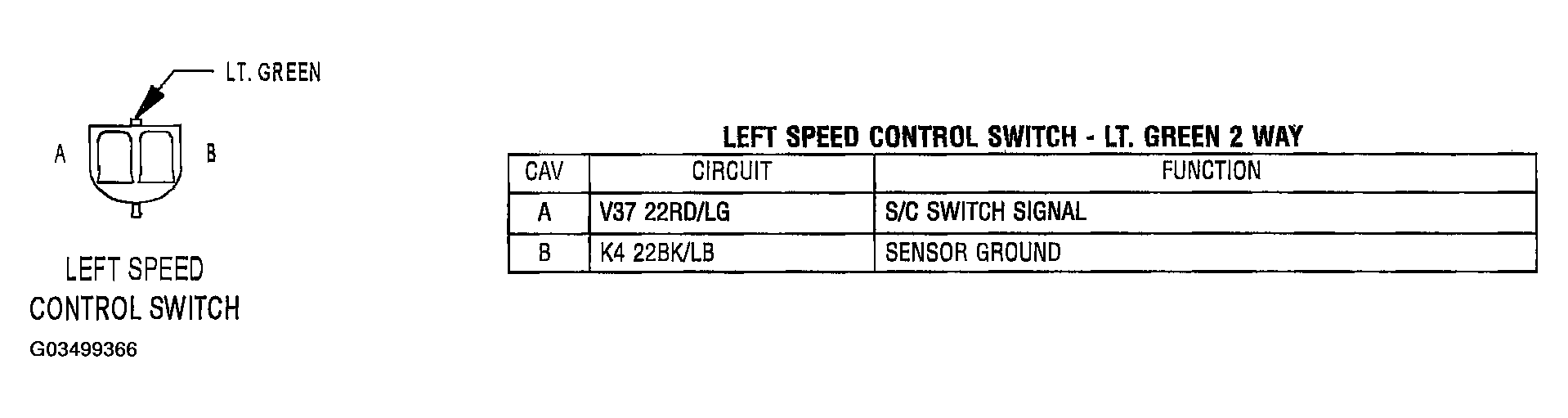

Fig 1: Identifying Left Speed Control Switch Sensor Connector
G03499366Courtesy of DAIMLERCHRYSLER CORP.
