Camshaft Position Sensor: Removal: 2.0/2.4L

  1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
  2. Remove the negative battery cable.
  3. Disconnect electrical connector from camshaft position sensor.
  4. Remove camshaft position sensor mounting screws. Remove sensor.
  5. Loosen screw attaching target magnet to rear of camshaft.

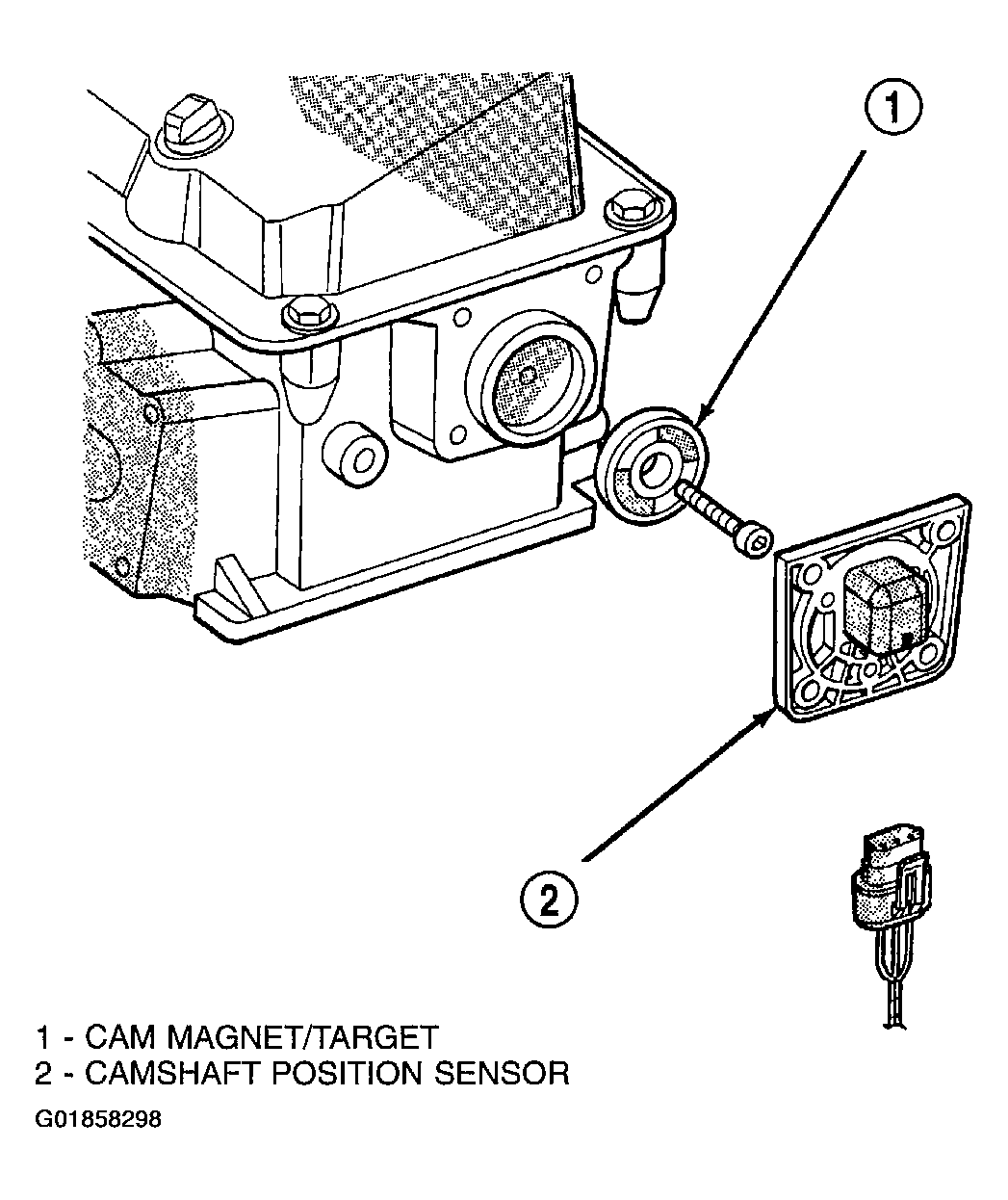

    Fig 1: Removing & Installing Target Magnet
    G01858298Courtesy of DAIMLERCHRYSLER CORP.
