Removal - 1.6L

NOTE: The 1.6L is attached with a rubber isolator system. Care must be exercised in retaining all the pieces and reinstalling in the order they where removed.

Remove air cleaner assembly cover and disconnect the inlet air temperature sensor.

Fig 1: Locating Inlet Air Temperature Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the negative battery cable.
Disconnect the electrical connector at the throttle body.
Remove the purge hose from throttle body.
Remove the 4 bolts from the upper to lower manifold.

Fig 2: Removing Upper Manifold Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 2 bolts to the upper manifold to struts.

Fig 3: Removing Front Strut Bolts Upper Intake
Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Removing Rear Strut Bolts Upper Intake
Courtesy of DAIMLERCHRYSLER CORP.
Remove the PCV hose and the brake booster hose from the upper manifold
Remove the 4 bolts from the ignition coil.

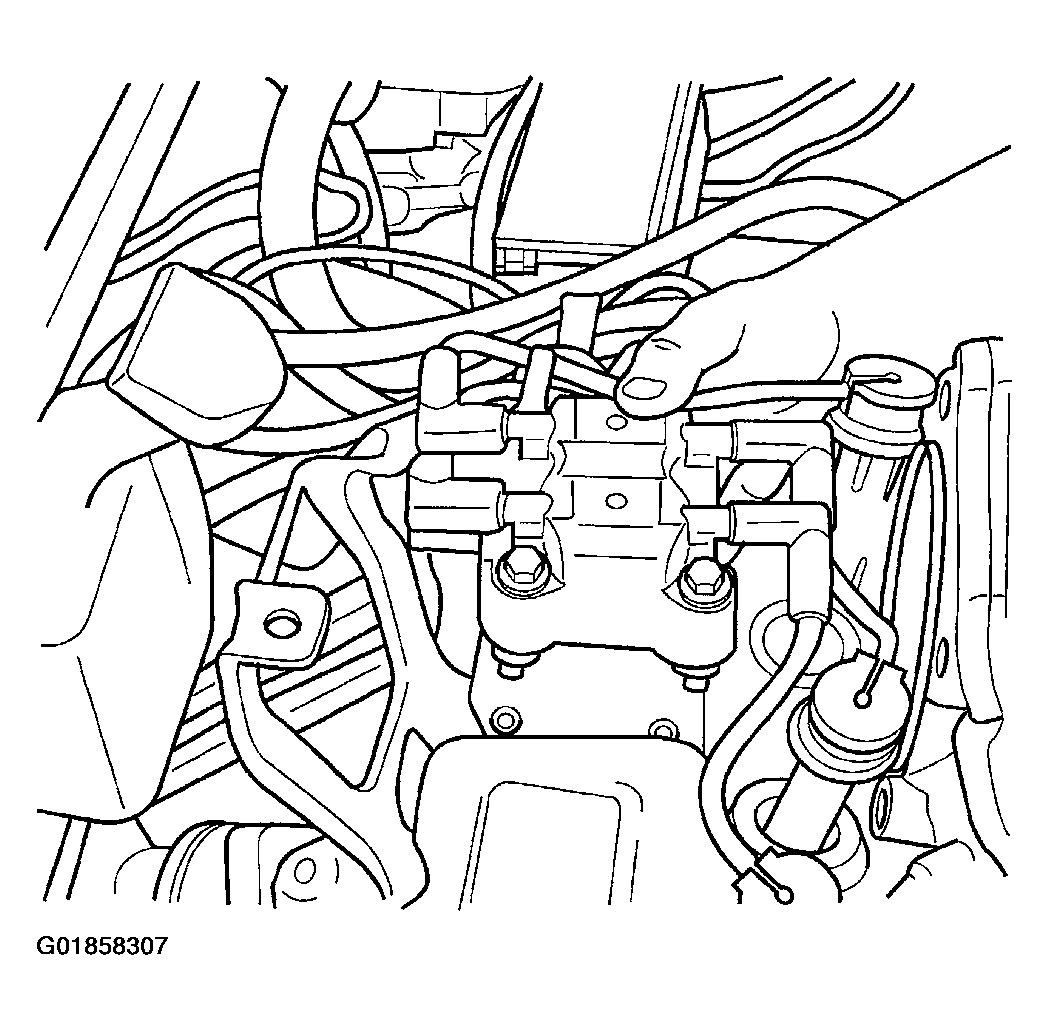

Fig 5: Removing Ignition Coil
Courtesy of DAIMLERCHRYSLER CORP.
Remove the spark plug cables from the ignition coil.
