Installation - 2.0/2.4/2.4 Turbo/2.4L SRT-4

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

  1. Install knock sensor. Tighten knock sensor bolt to 22 N.m (195 in. Ibs.) torque. Over or under tightening effects knock sensor performance, possibly causing improper spark control.

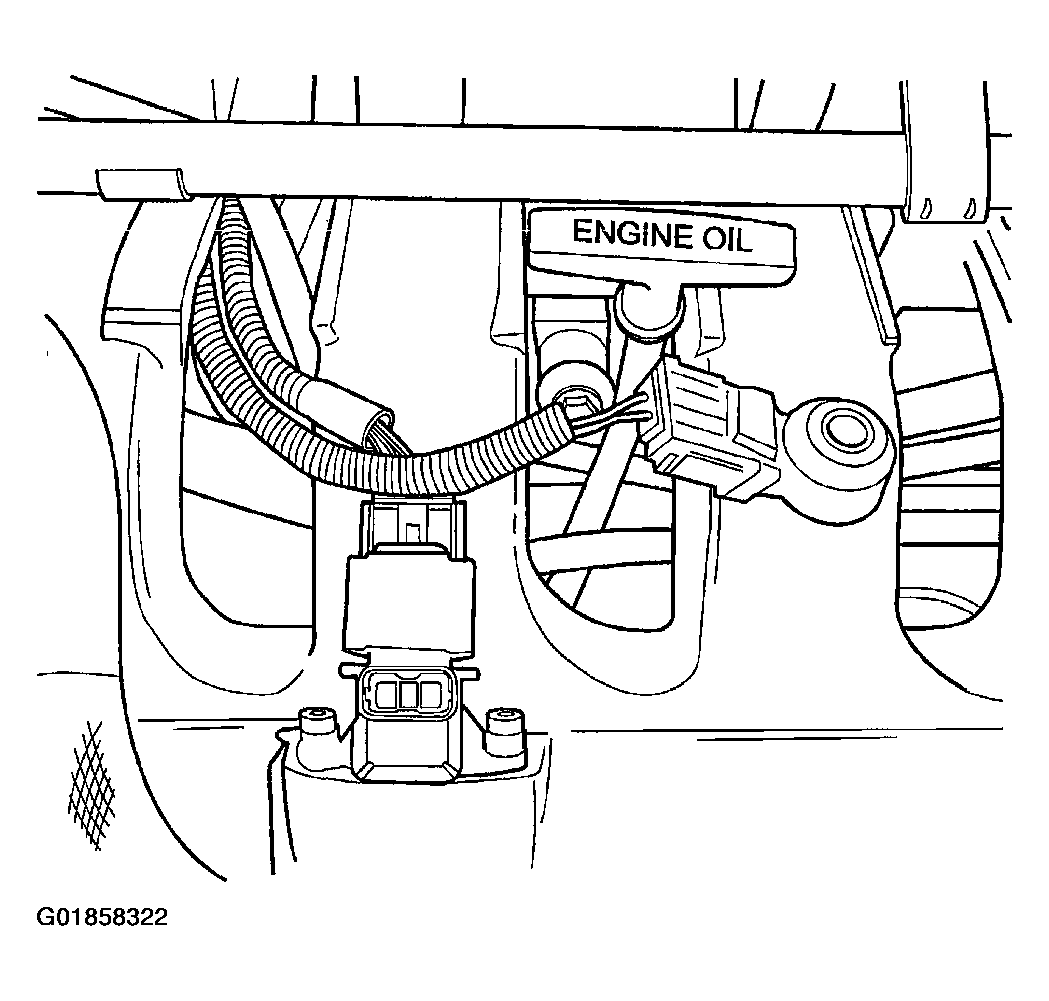

  2. Attach electrical connector to knock sensor. See Figure.
  3. Connect the negative battery cable.
