Ignition Coils

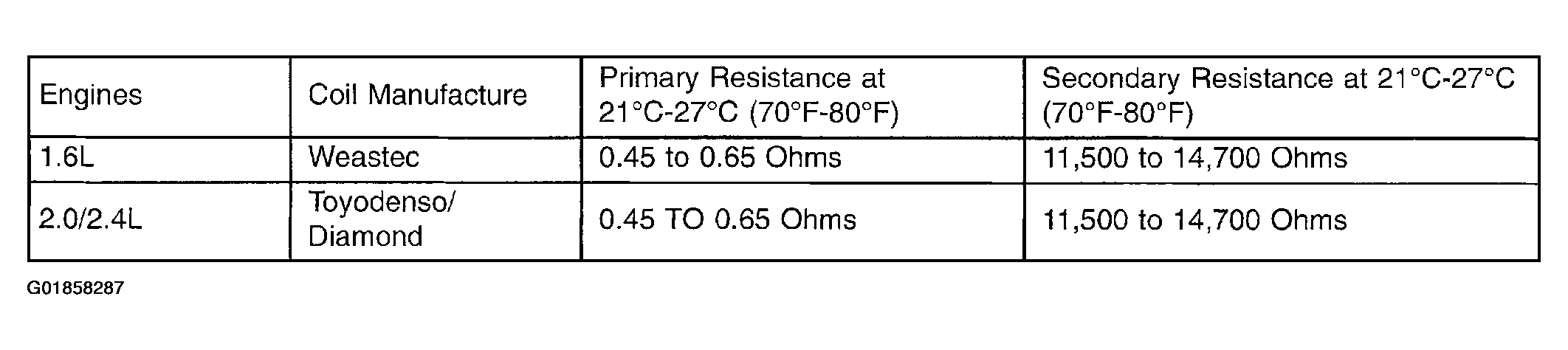

Fig 1: Identifying Ignition Coil Specifications
G01858287Courtesy of DAIMLERCHRYSLER CORP.

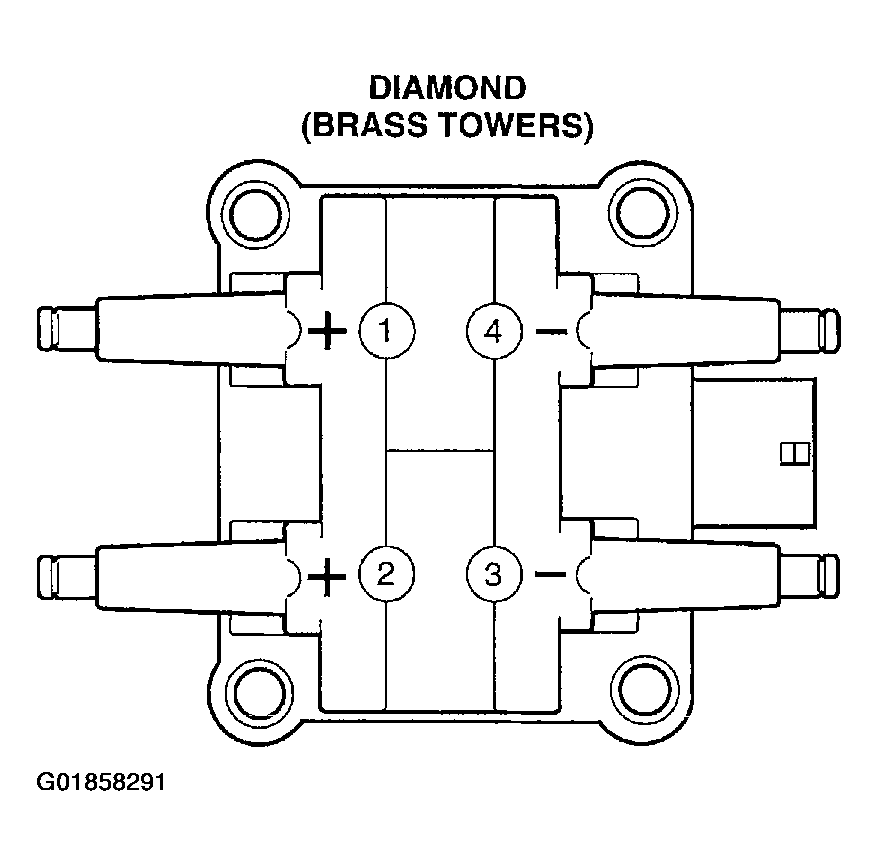

Fig 2: Identifying Ignition Coil - Diamond (Brass Towers)
G01858291Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Ignition Coil - Weastec (Silver Towers)
G01858292Courtesy of DAIMLERCHRYSLER CORP.
