Map Sensor: Installation

  1. The sensor mounts onto intake manifold plenum (Fig 1 ). Tighten screws to 4.5 N.m (40 in. lbs.) torque.

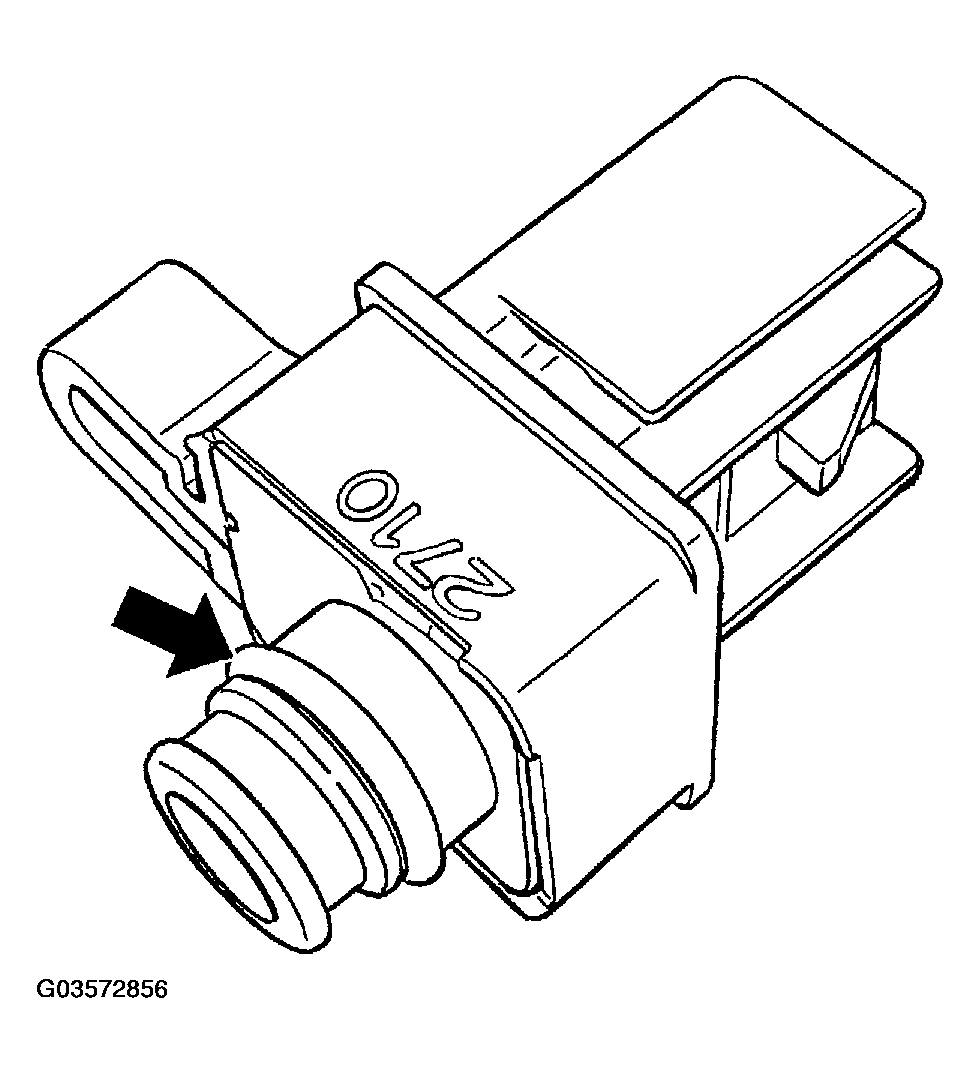

    Fig 1: Identifying MAP Sensor O-Ring
    G03572856Courtesy of DAIMLERCHRYSLER CORP.
  2. Attach electrical connector to sensor.
  3. Install the negative battery cable.
