Throttle Body: Installation

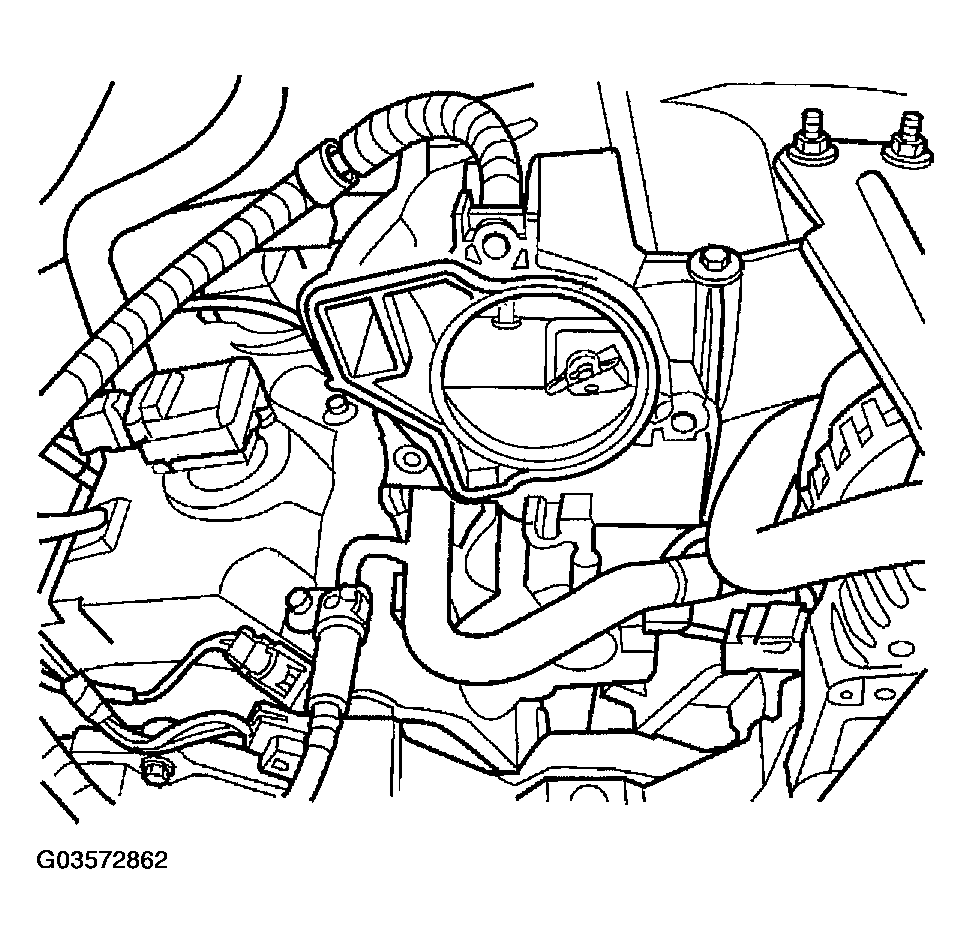

  1. Install throttle body (Figure ).
  2. Install 3 throttle body bolts and tighten.

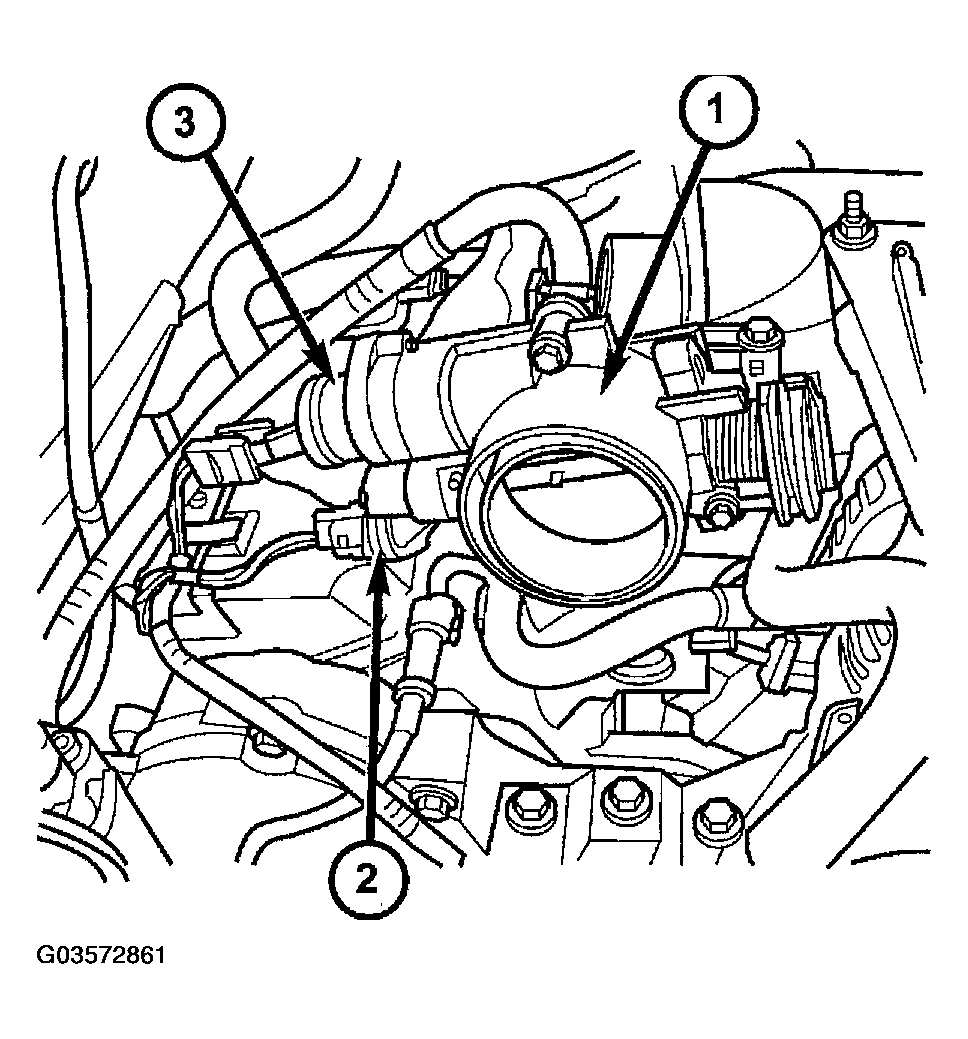

  3. Connect electrical connectors to throttle body (Figure ).

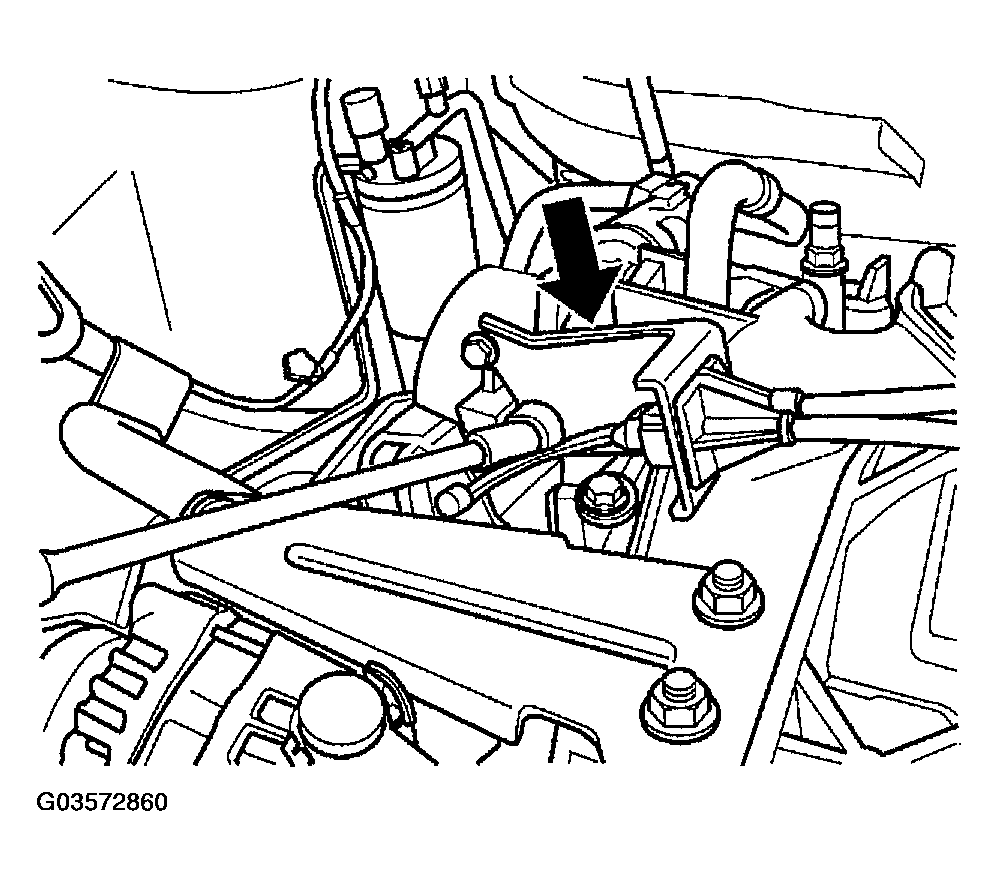

  4. Install throttle cable bracket (Figure ).
  5. Hold throttle lever in wide open position. Install throttle cable and speed control cables to throttle arm.
  6. Install the air cleaner box,
  7. Install the engine cover.
  8. Connect negative cable from battery
