Throttle Position Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the TPS electrical connector (Fig 1 ).
  3. Remove the TPS mounting screws.
  4. Remove the TPS.

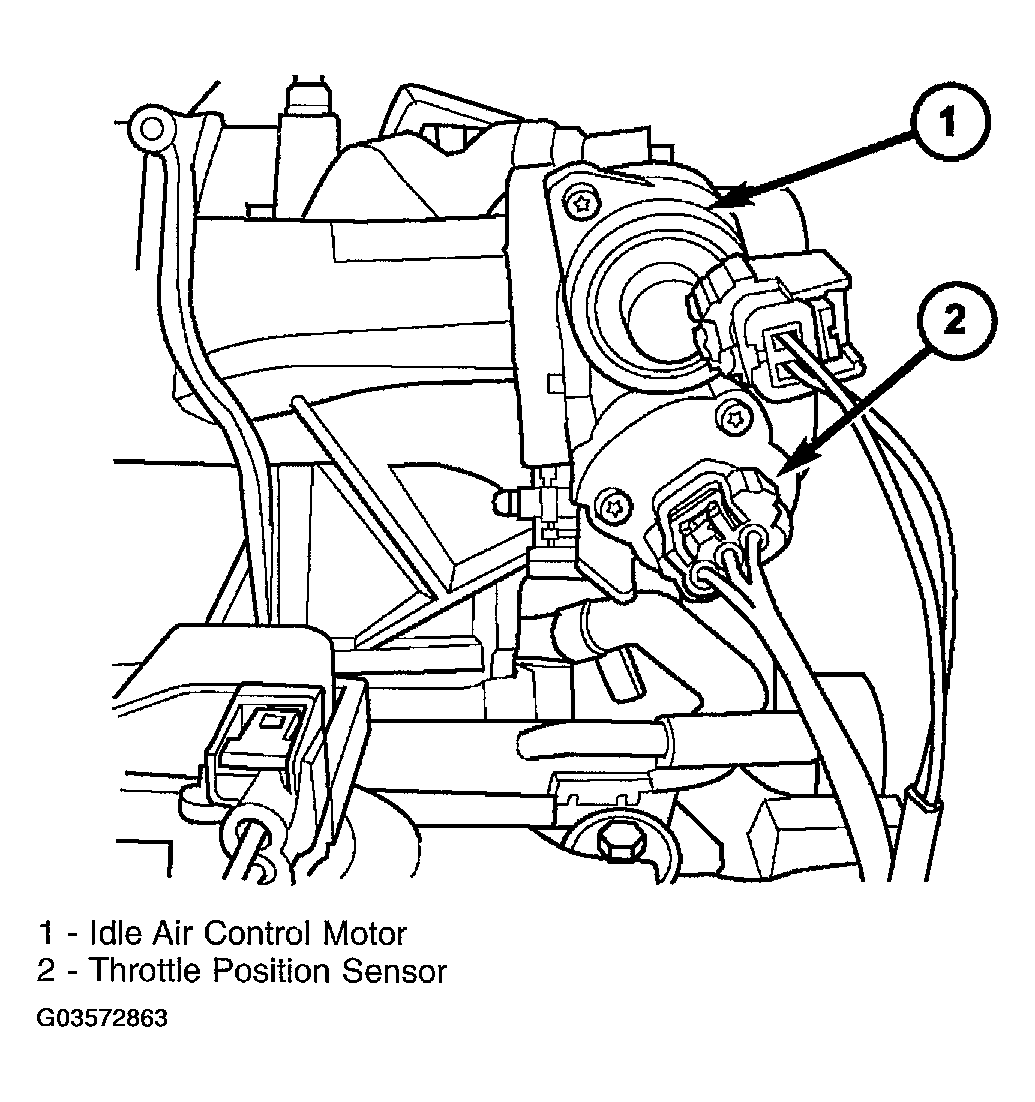

    Fig 1: Identifying TPS & IAC
    G03572863Courtesy of DAIMLERCHRYSLER CORP.
