Home >> Chrysler >> 2004 >> Pacifica FWD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control >> Ignition Coil Capacitor >> Installation

Ignition Coil Capacitor: Installation

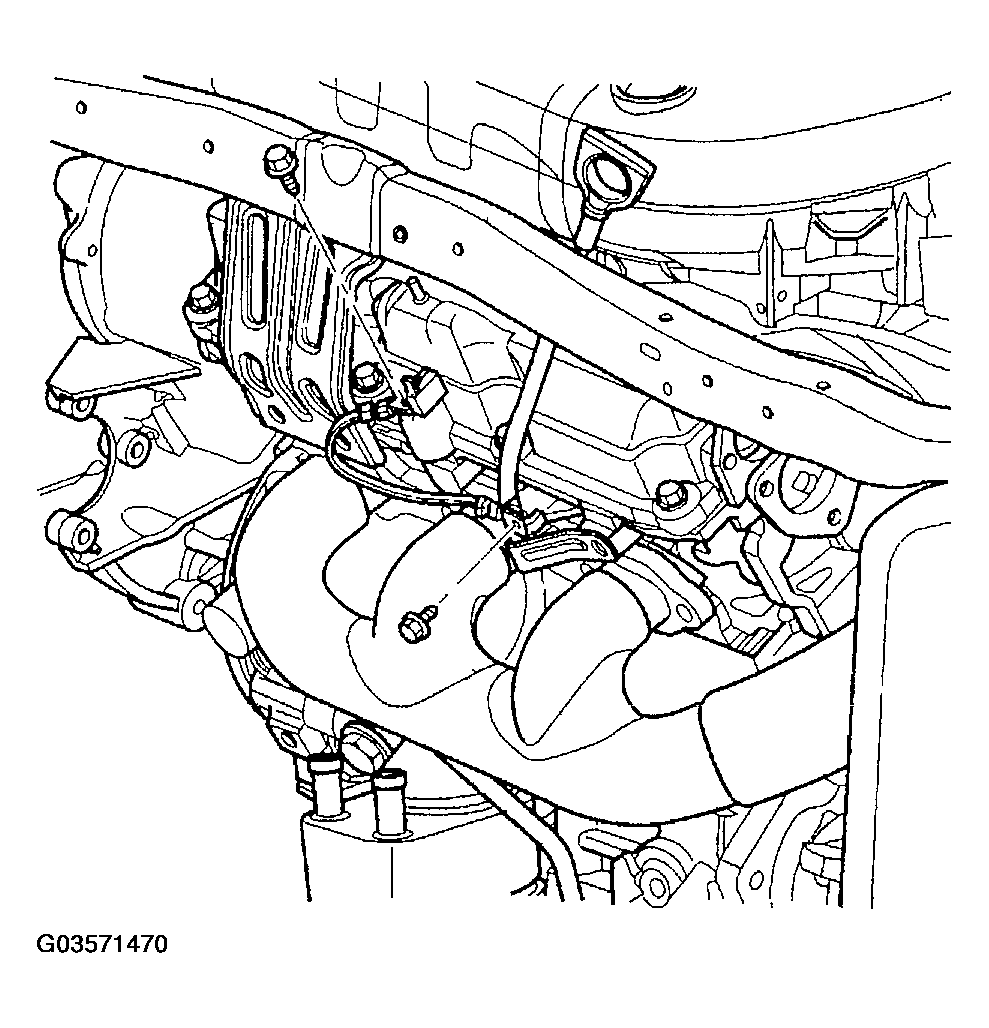

  1. Install the bolt to capacitor (Figure). Make sure that the ground strap is in place.
  2. Tighten bolt.
  3. Install the electrical connector to capacitor.
  4. Connect the negative battery cable.
