Home >> Chrysler >> 2004 >> Pacifica FWD >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Component Locations >> Sensor

Component Locations: Sensor

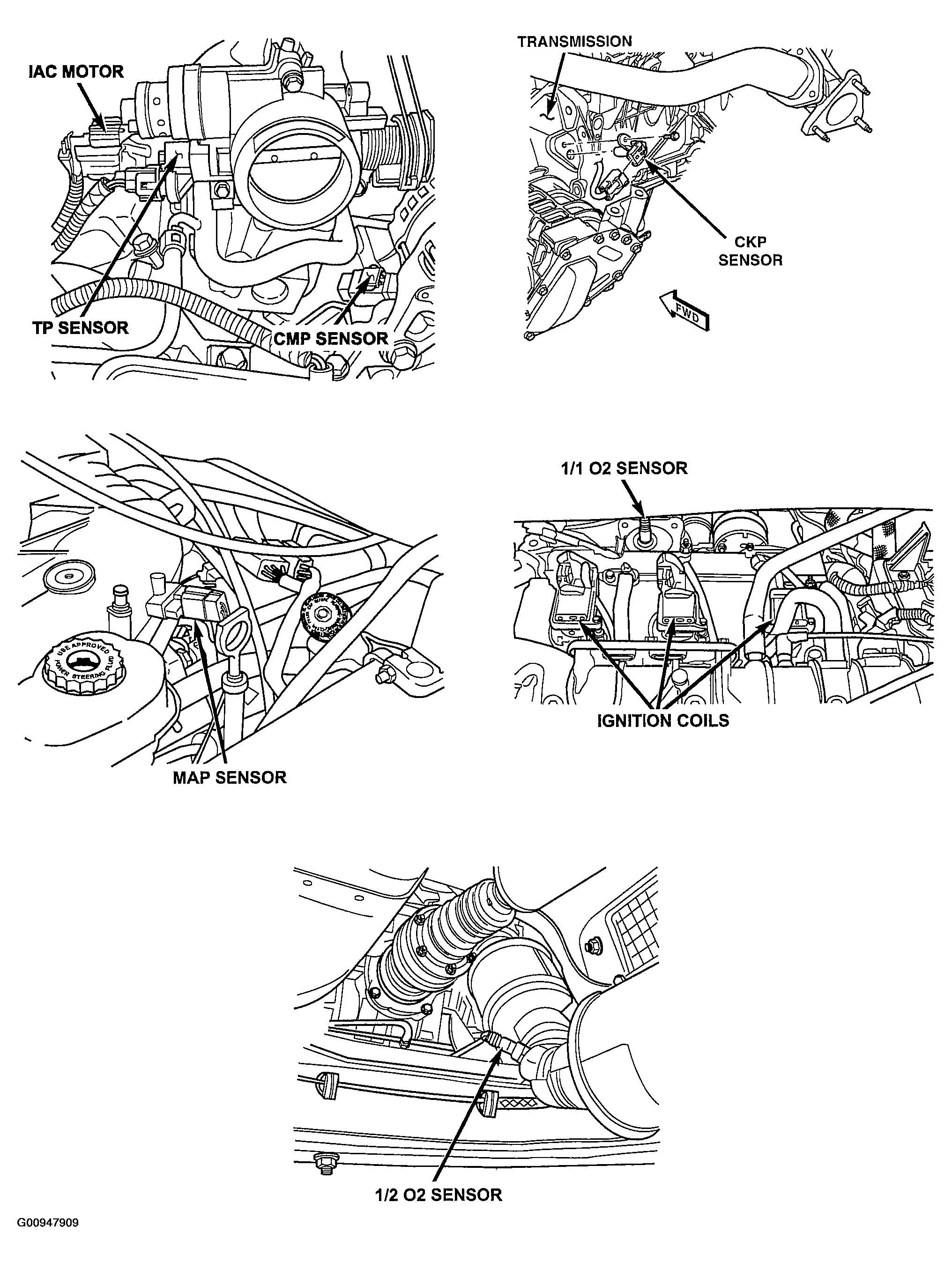

Fig 1: Locating Sensors
G00947909Courtesy of DAIMLERCHRYSLER CORP.
