Battery Temperature Sensor Connector End View

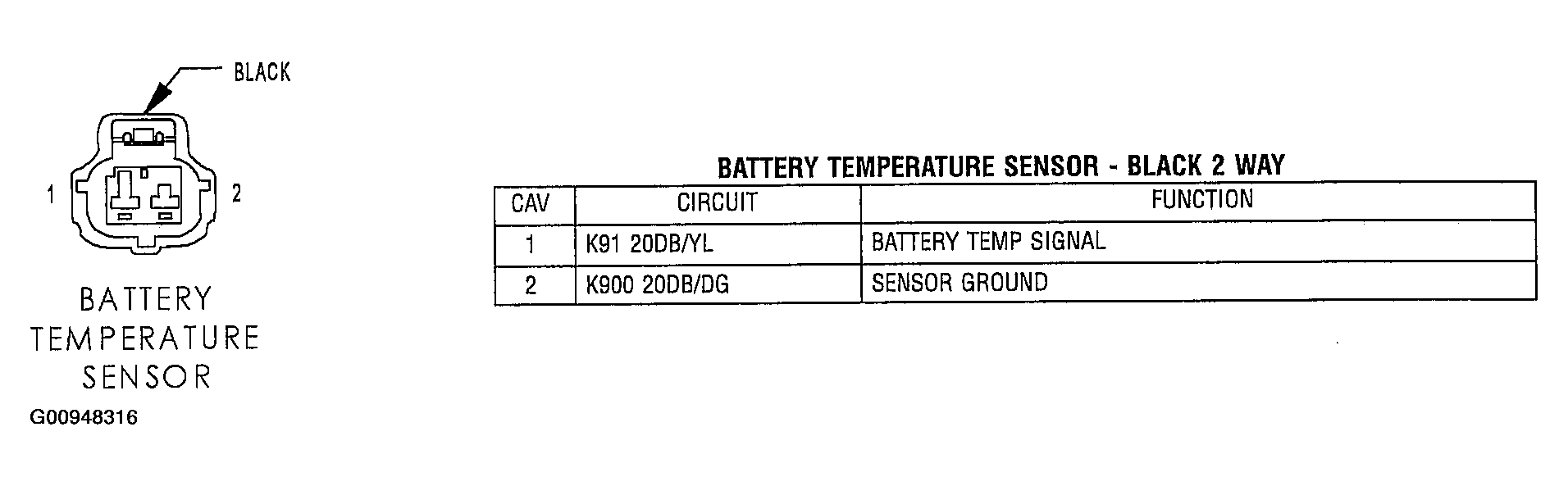

Fig 1: Identifying Battery Temperature Sensor - Black 2 Way Connector

G00948316

Courtesy of DAIMLERCHRYSLER CORP.
