Data Link Connector Connector End View

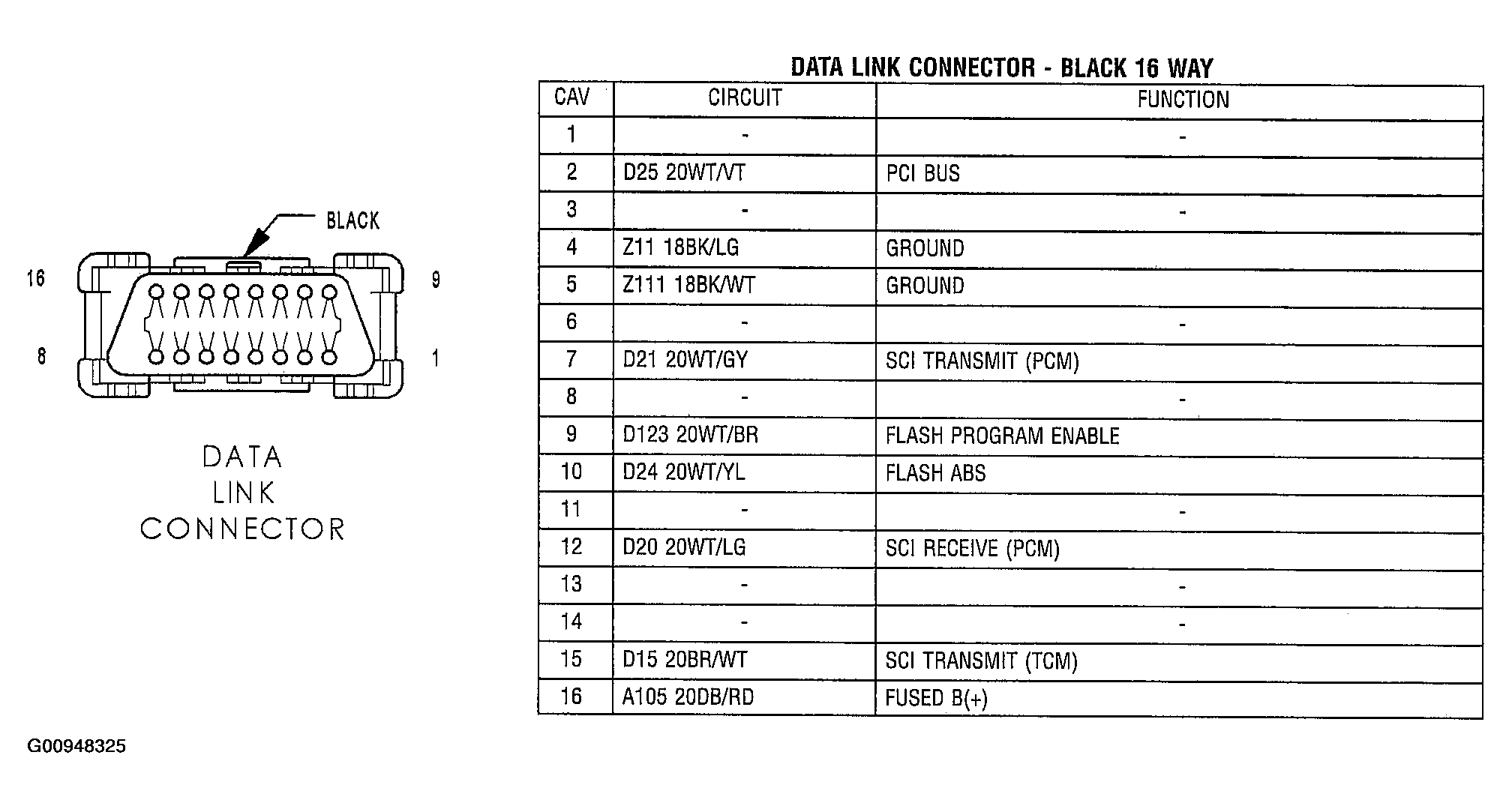

Fig 1: Identifying Data Link Connector - Black 16 Way Connector

G00948325

Courtesy of DAIMLERCHRYSLER CORP.
