Engine Coolant Temperature Sensor Connector End View

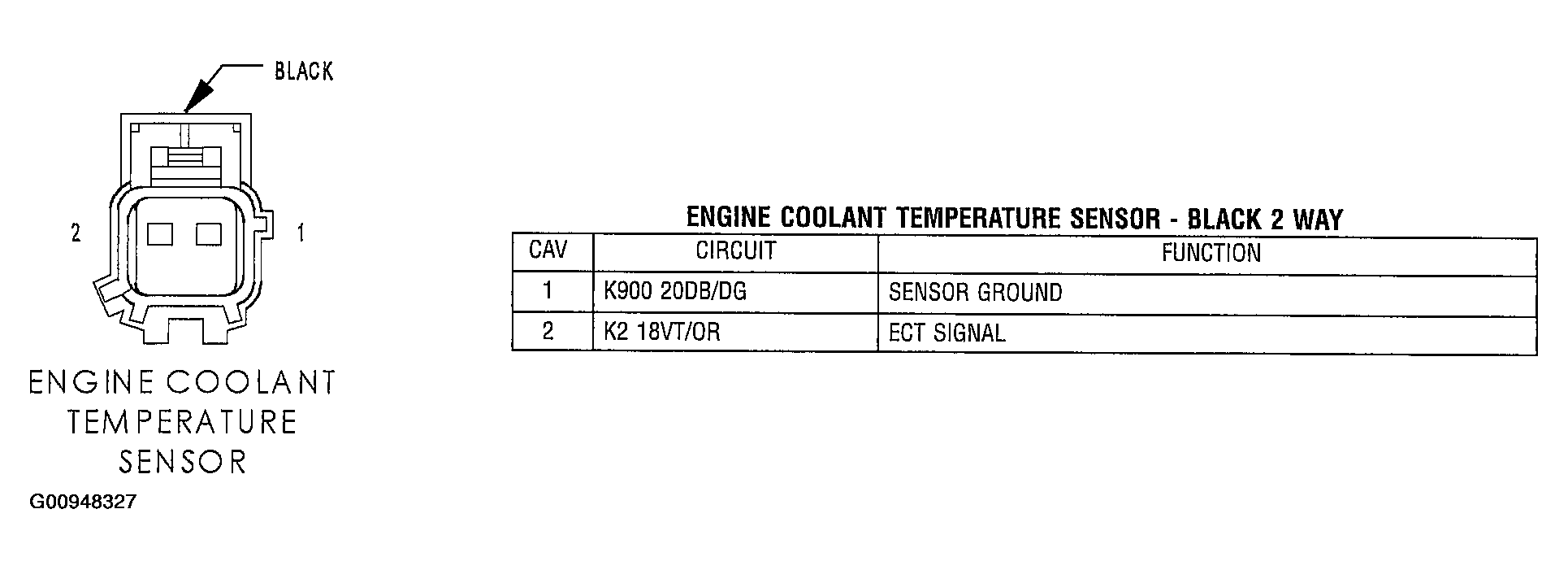

Fig 1: Identifying Engine Coolant Temperature Sensor - Black 2 Way Connector

G00948327

Courtesy of DAIMLERCHRYSLER CORP.
