Manifold Absolute Pressure Sensor Connector End View

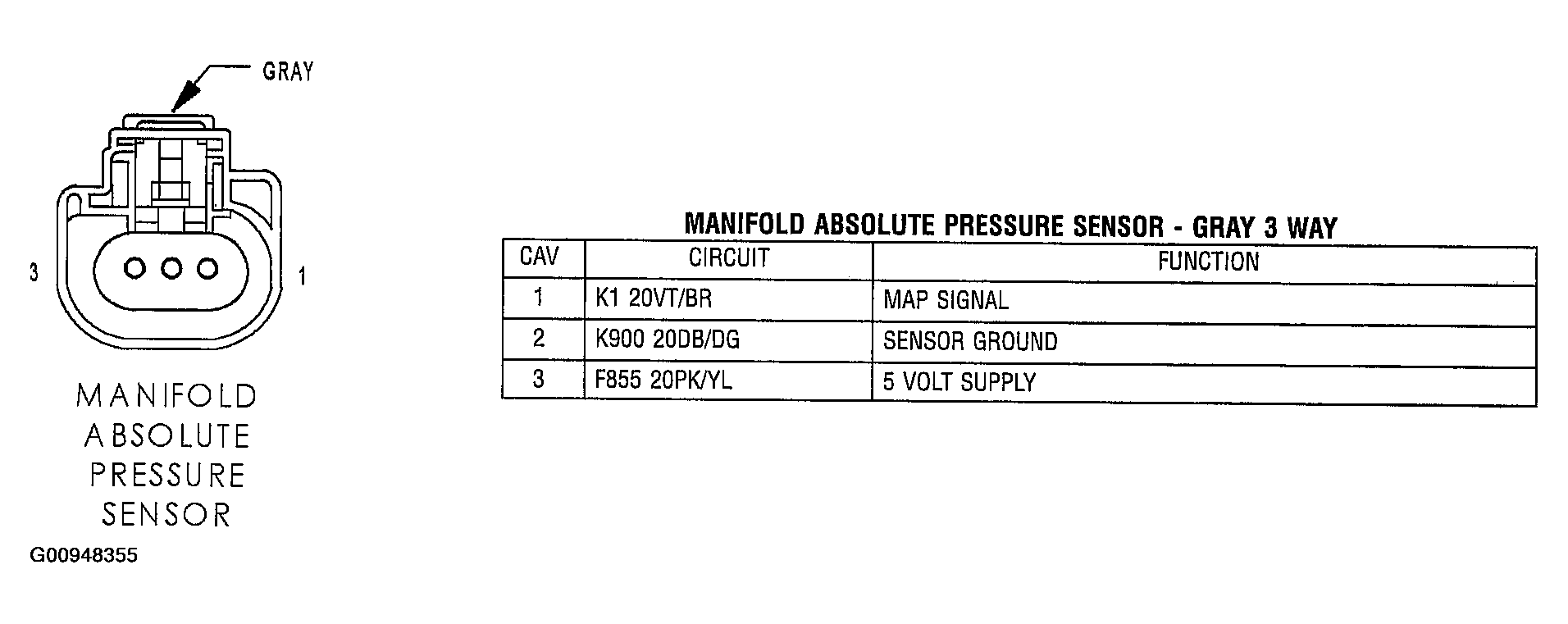

Fig 1: Identifying Manifold Absolute Pressure Sensor - Gray 3 Way Connector

G00948355

Courtesy of DAIMLERCHRYSLER CORP.
