Oxygen Sensor Connector End Views

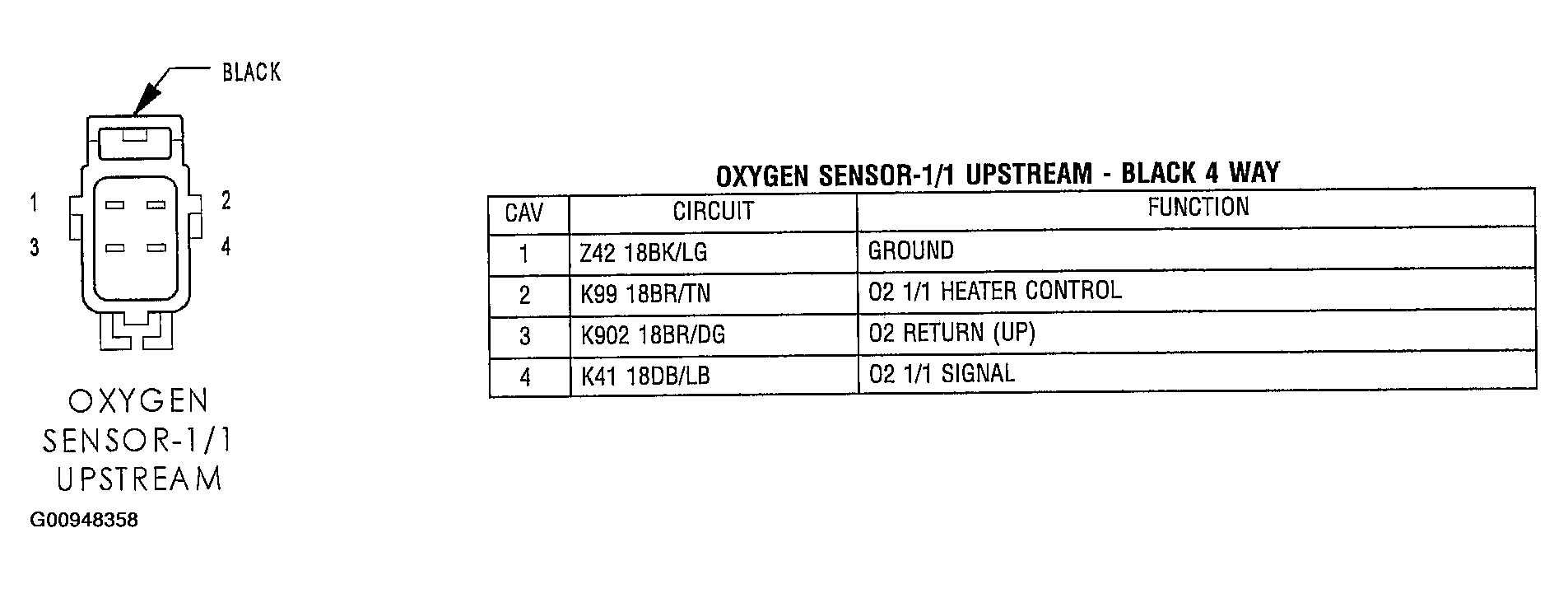

Fig 1: Identifying Oxygen Sensor-1/1 Upstream - Black 4 Way Connector
G00948358Courtesy of DAIMLERCHRYSLER CORP.

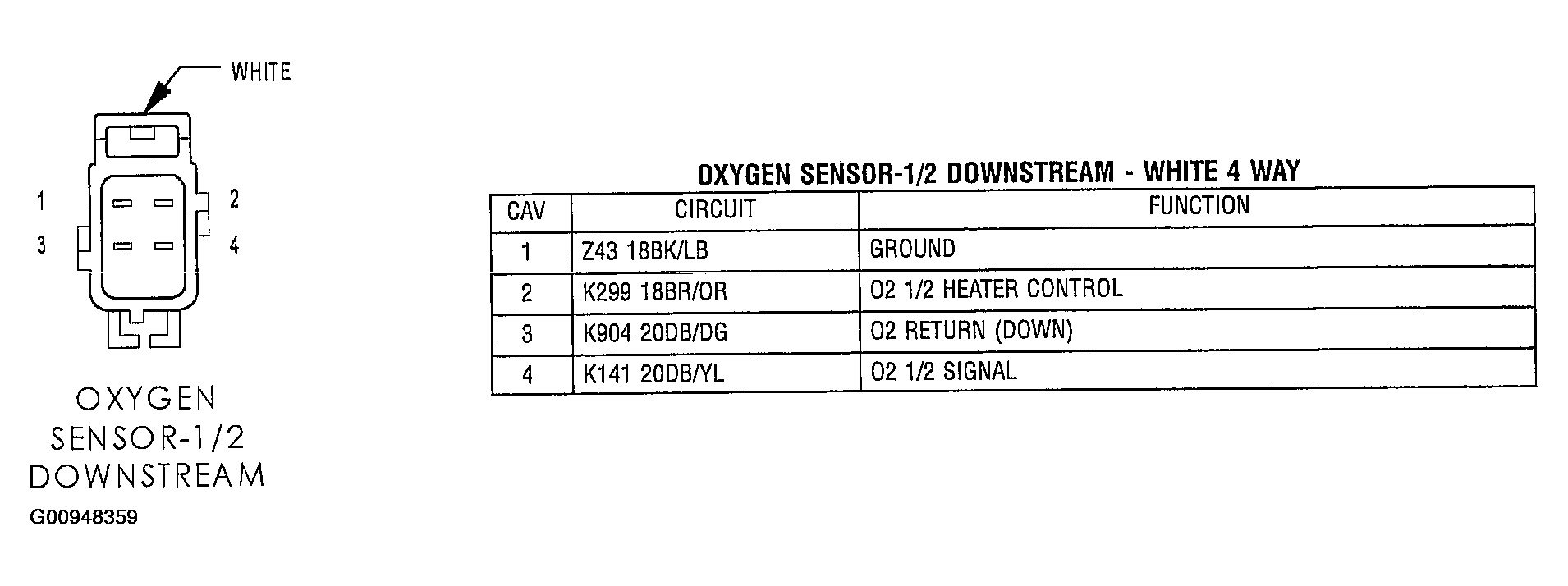

Fig 2: Identifying Oxygen Sensor-1/2 Downstream - White 4 Way Connector
G00948359Courtesy of DAIMLERCHRYSLER CORP.
