Speed Control Servo Connector End View

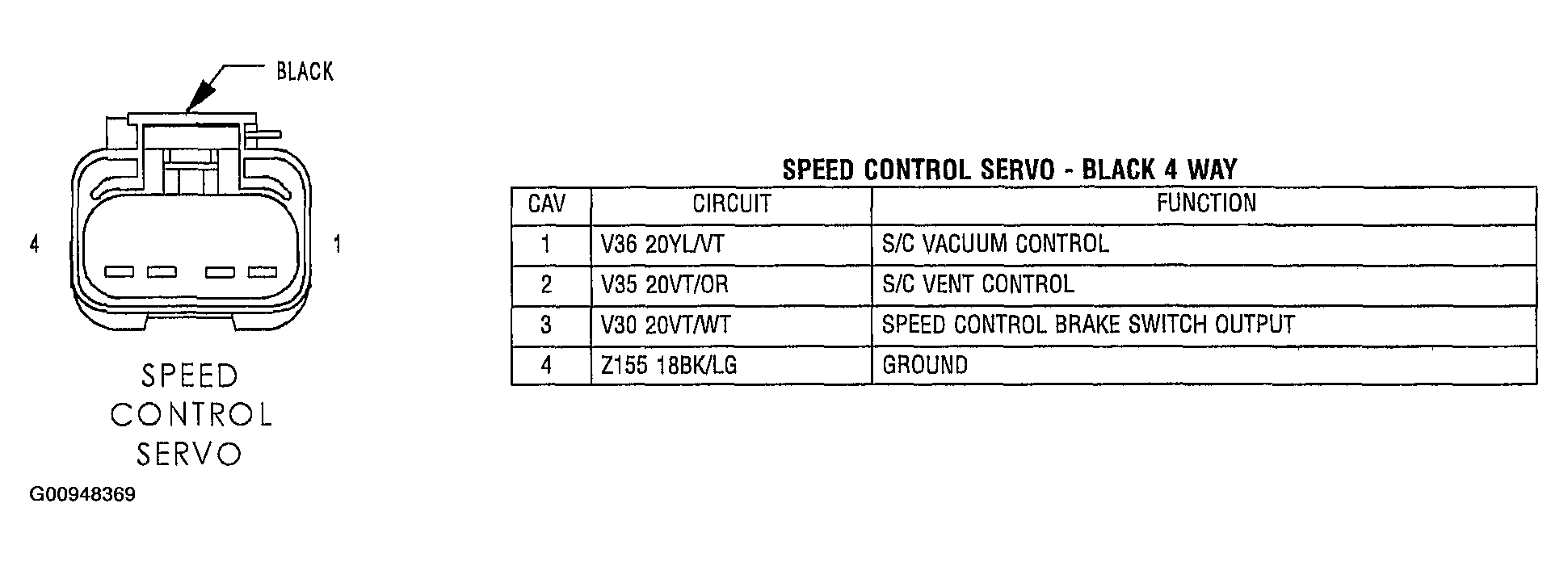

Fig 1: Identifying Speed Control Servo - Black 4 Way Connector

G00948369

Courtesy of DAIMLERCHRYSLER CORP.
