Speed Control Switch Connector End Views

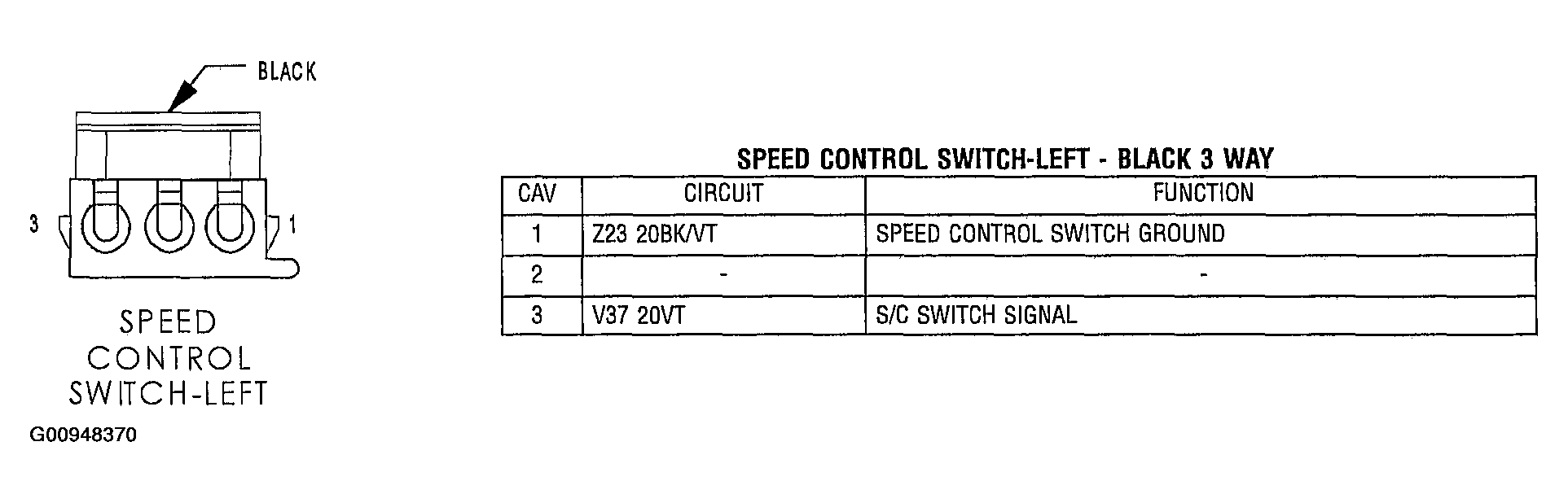

Fig 1: Identifying Speed Control Switch-Left - Black 3 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.

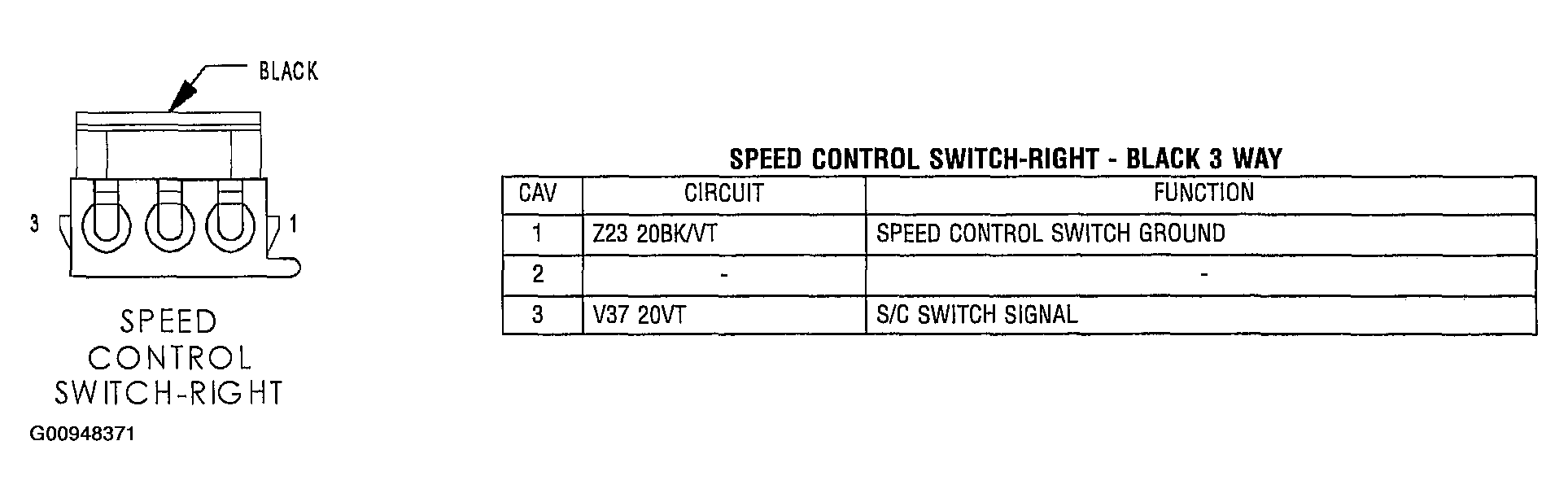

Fig 2: Identifying Speed Control Switch-Right - Black 3 Way Connector

Courtesy of DAIMLERCHRYSLER CORP.
