Throttle Position Sensor Connector End View

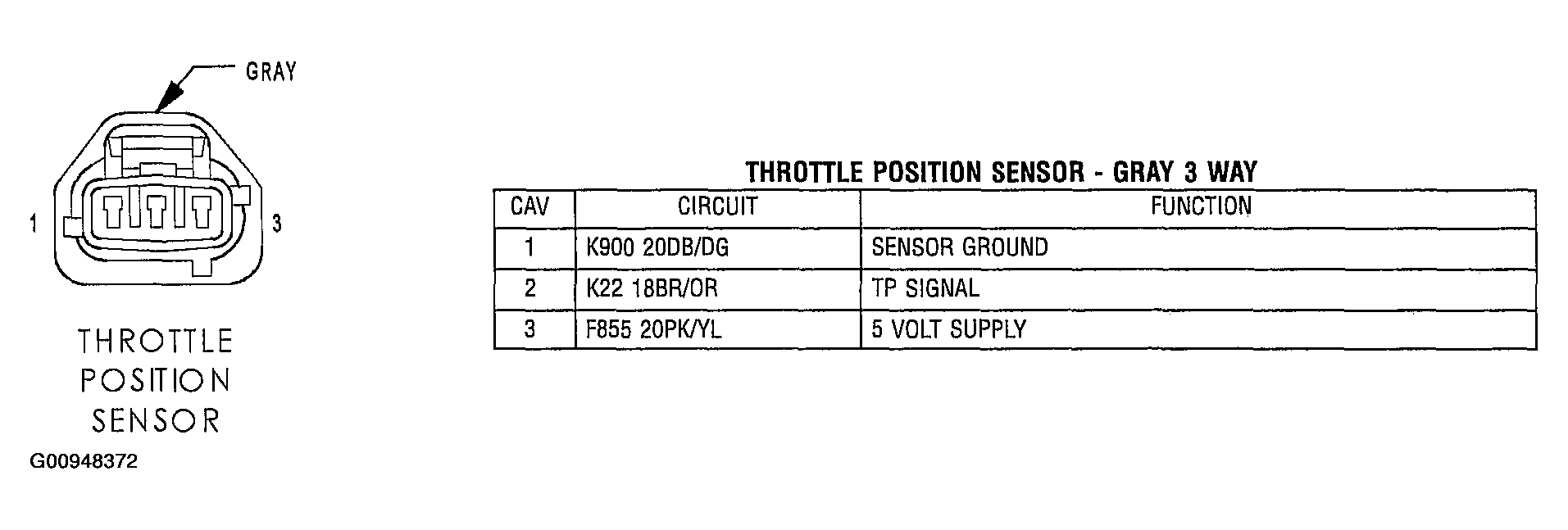

Fig 1: Identifying Throttle Position Sensor - Gray 3 Way Connector

G00948372

Courtesy of DAIMLERCHRYSLER CORP.
