Schematic Diagrams

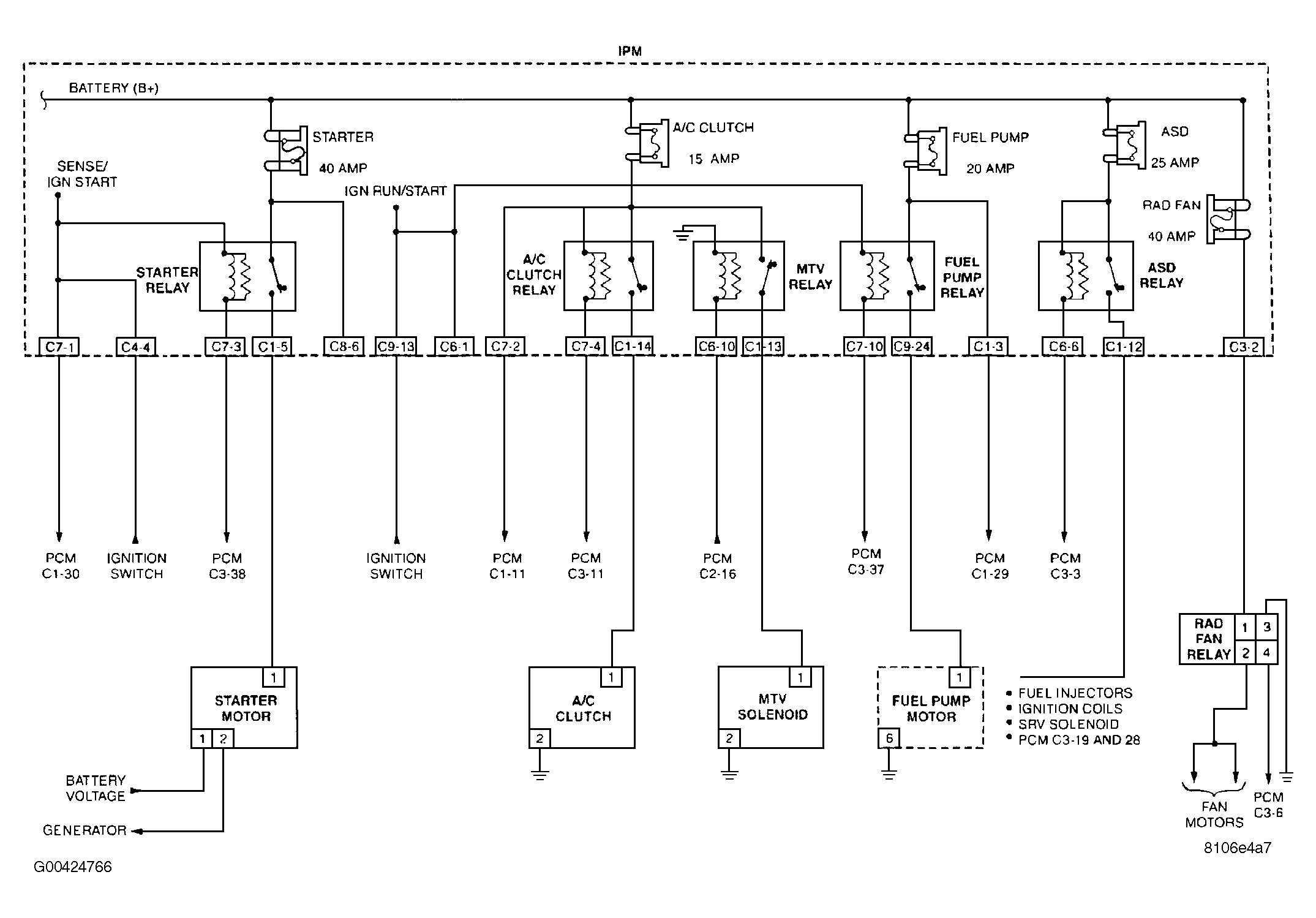

Fig 1: Schematic Diagram (1 Of 3)
G00424766Courtesy of DAIMLERCHRYSLER CORPORATION

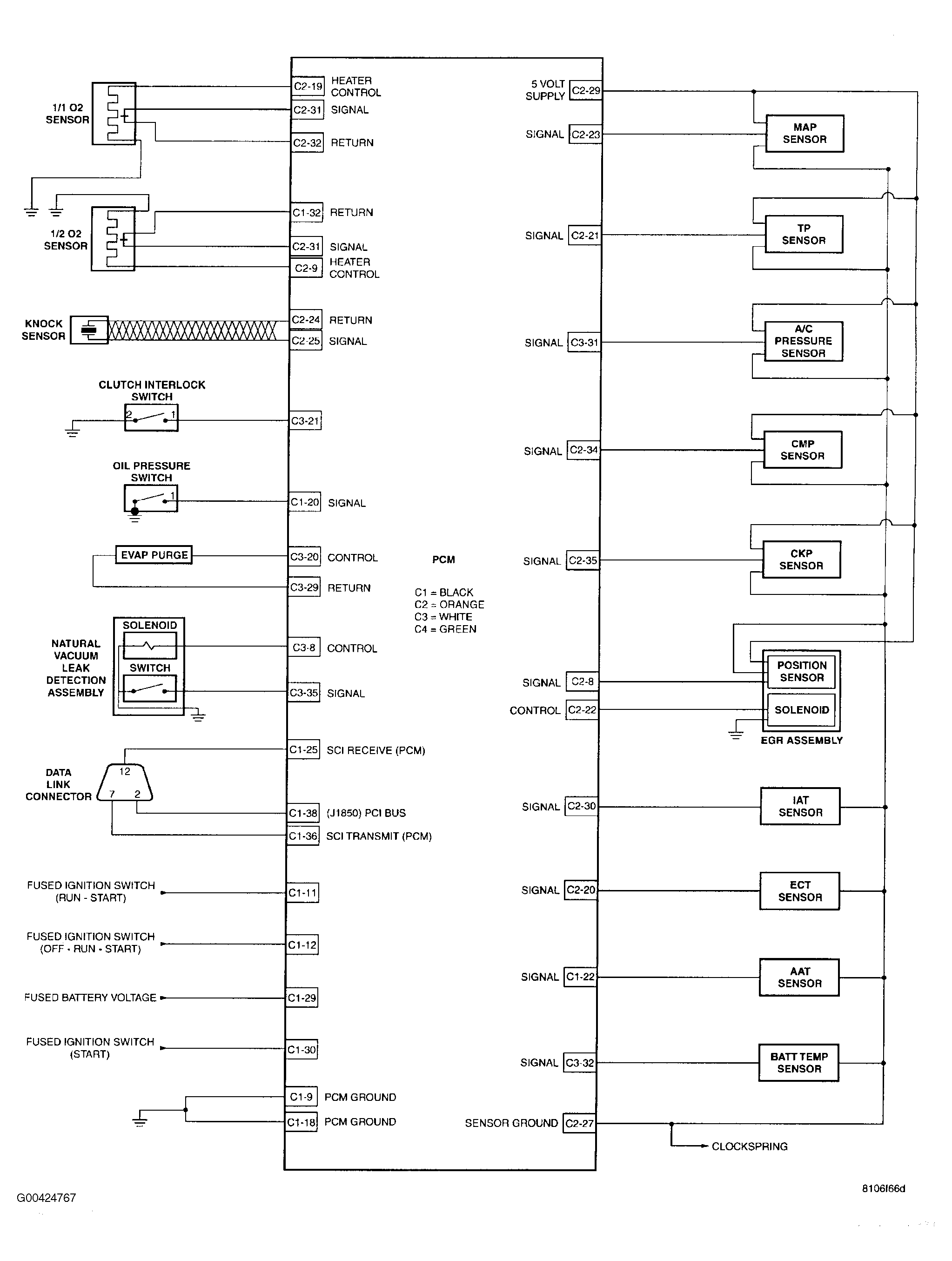

Fig 2: Schematic Diagram (2 Of 3)
G00424767Courtesy of DAIMLERCHRYSLER CORPORATION

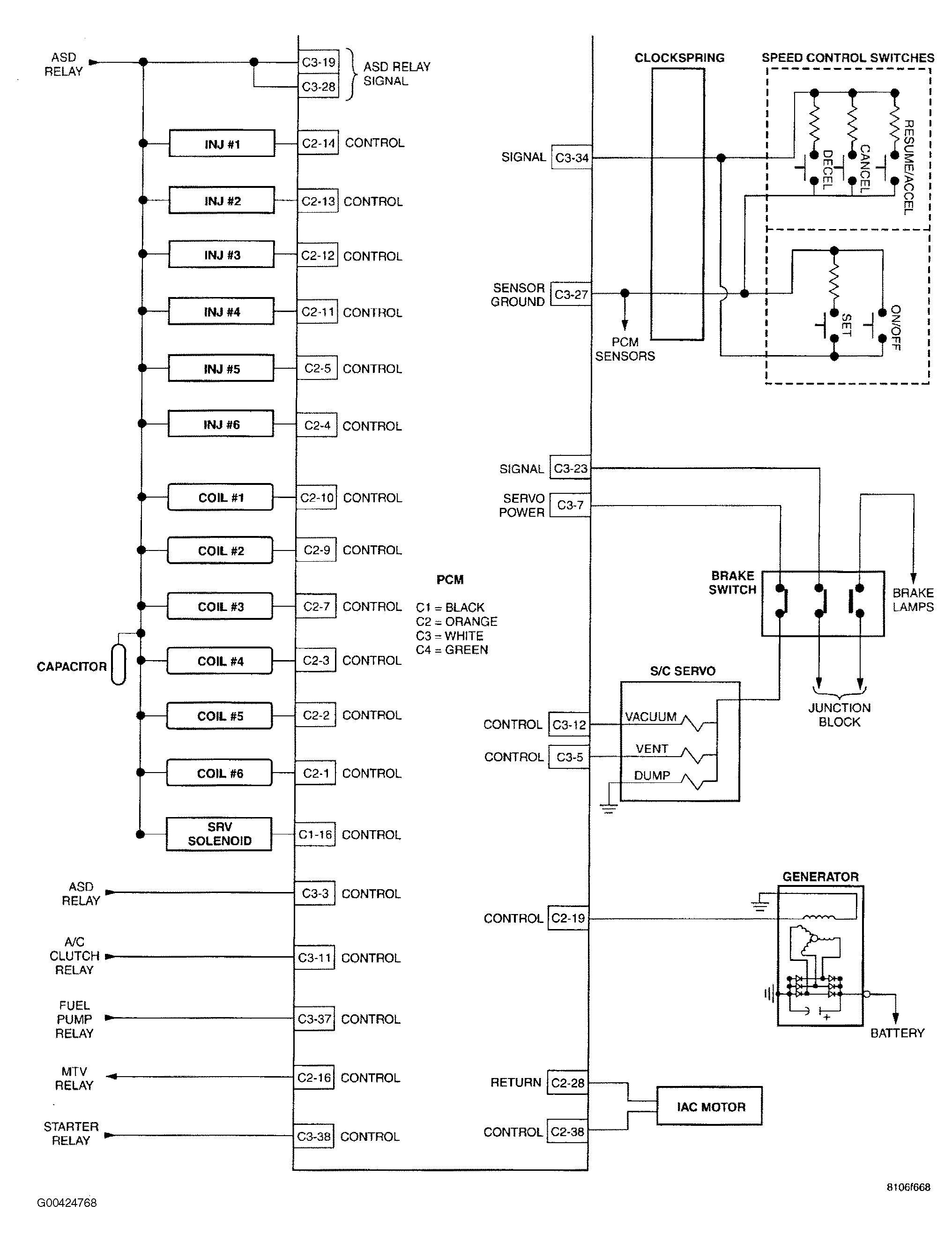

Fig 3: Schematic Diagram (3 Of 3)
G00424768Courtesy of DAIMLERCHRYSLER CORPORATION
