Verification Tests

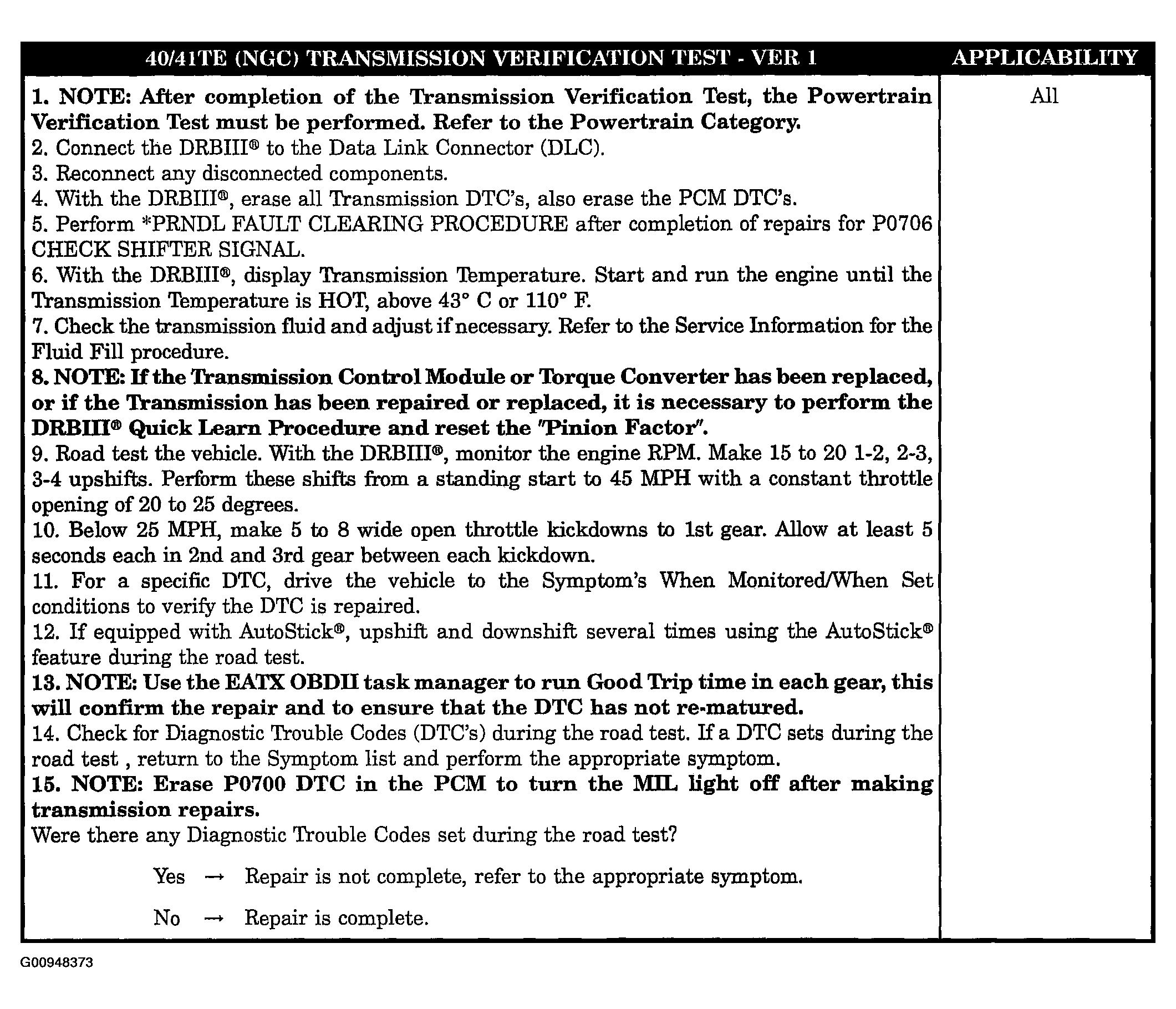

Fig 1: Transmission Verification Test - VER 1 (40/41TE - NGC)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Body Verification Test - VER 2 (NGC)

Courtesy of DAIMLERCHRYSLER CORP.

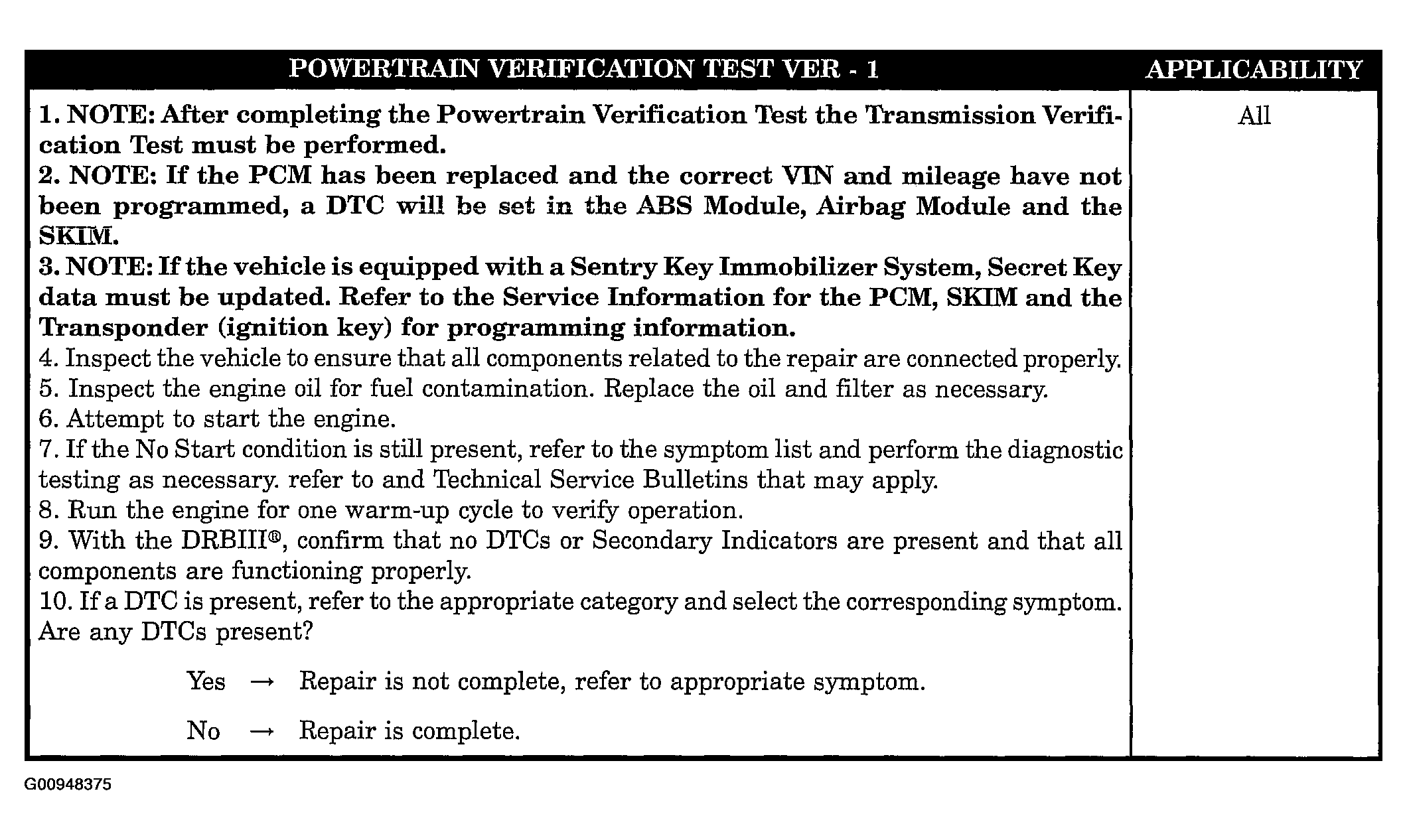

Fig 3: Powertrain Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

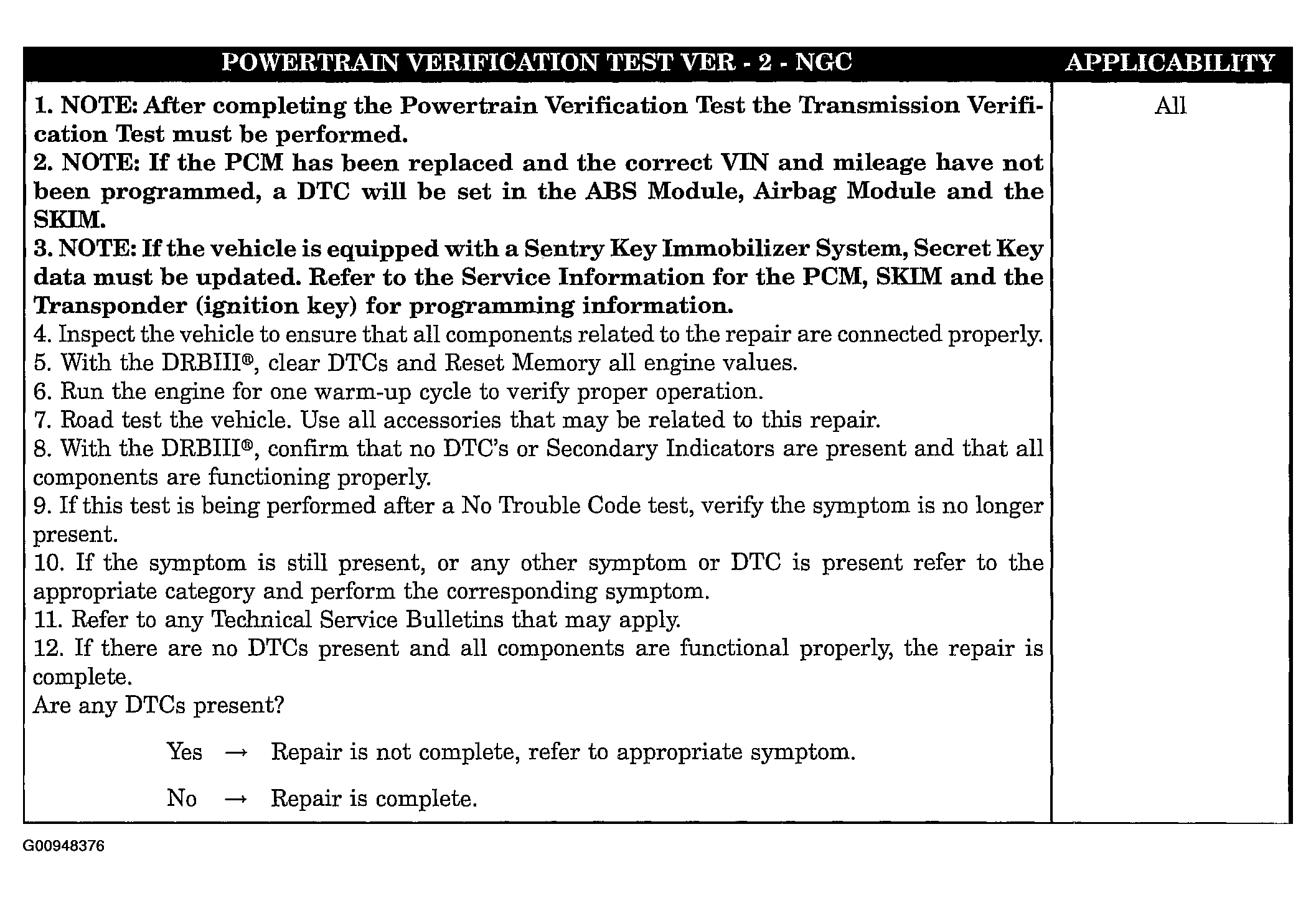

Fig 4: Powertrain Verification Test - VER 2 (NGC)

Courtesy of DAIMLERCHRYSLER CORP.

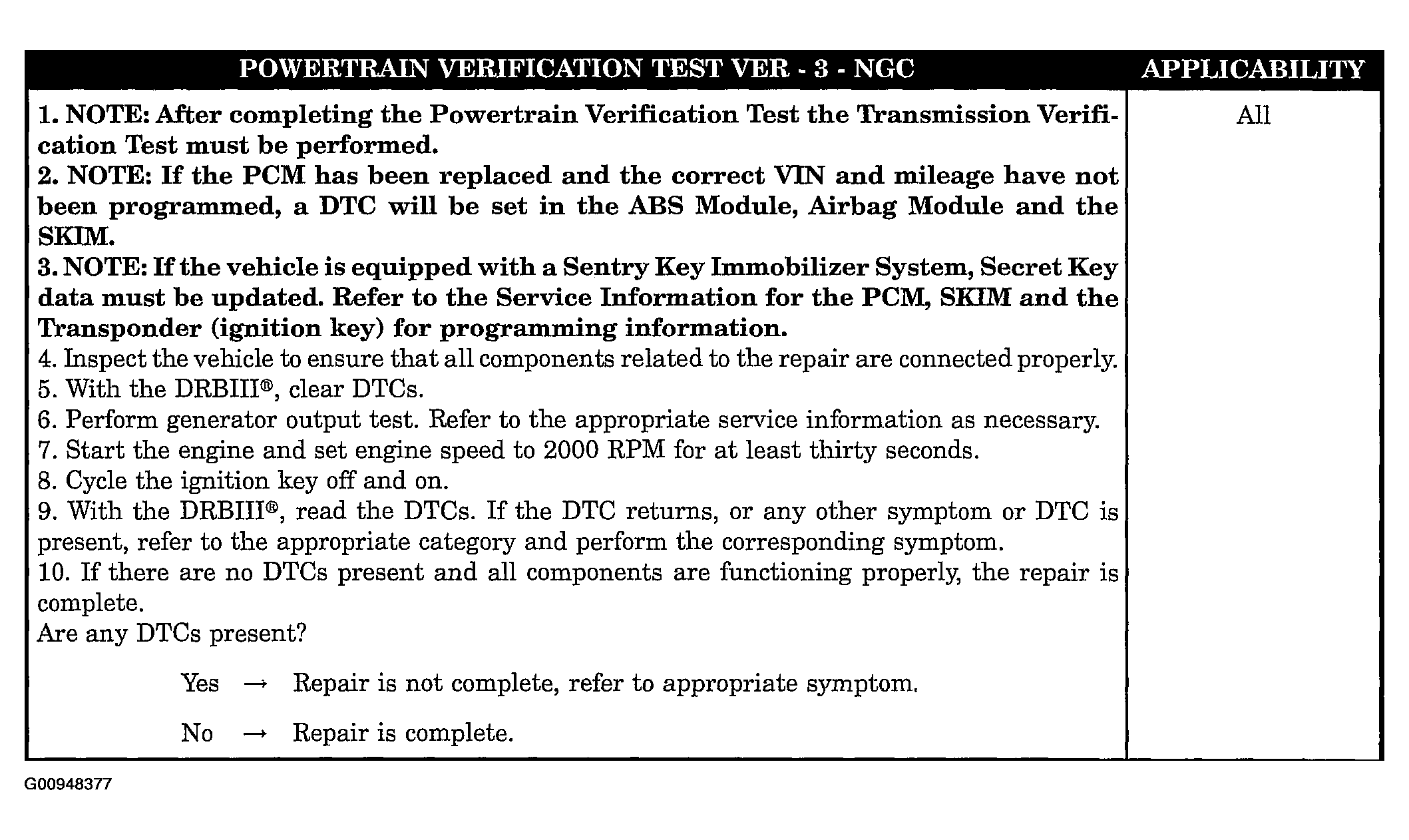

Fig 5: Powertrain Verification Test - VER 3 (NGC)

Courtesy of DAIMLERCHRYSLER CORP.

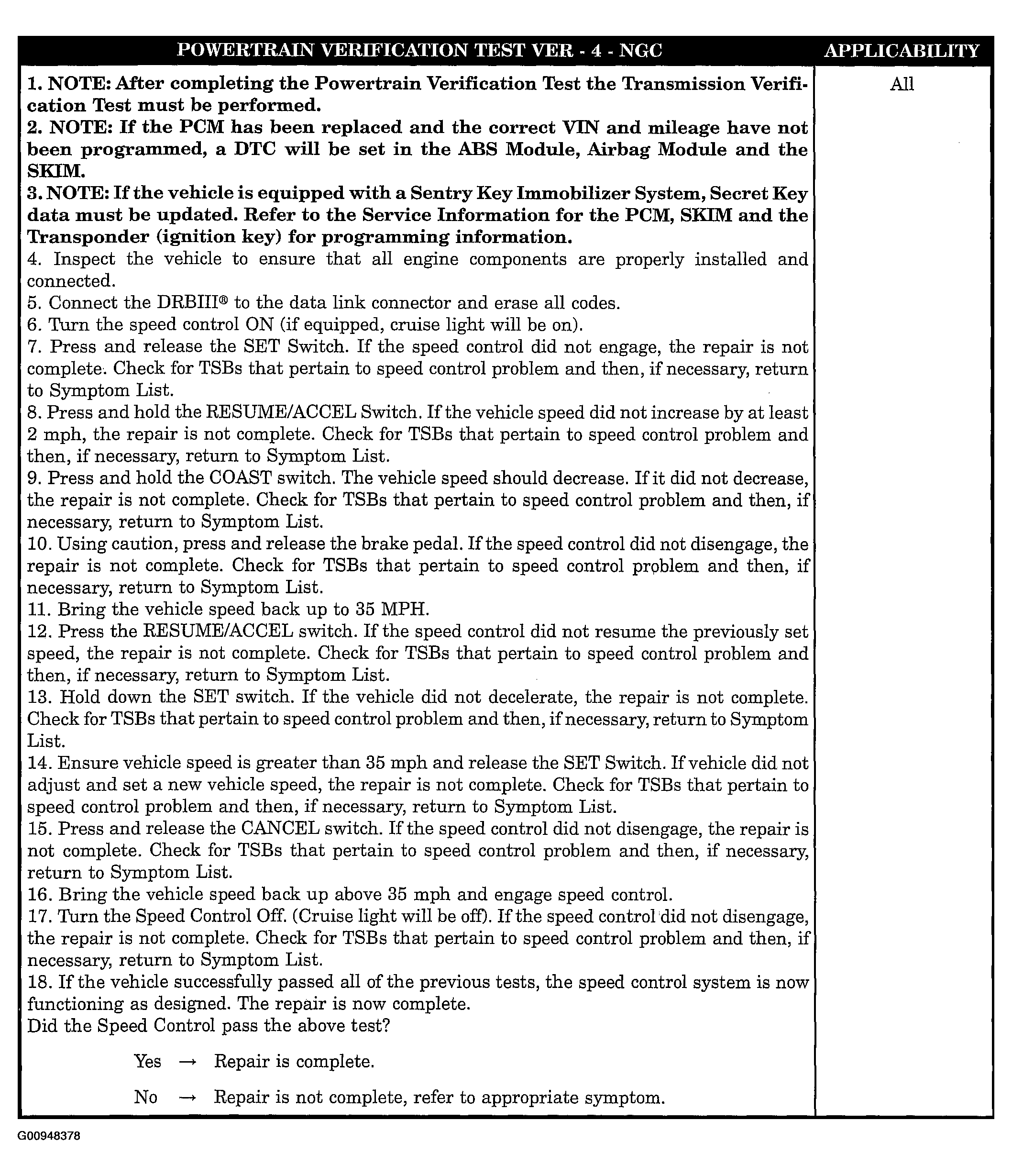

Fig 6: Powertrain Verification Test - VER 4 (NGC)

Courtesy of DAIMLERCHRYSLER CORP.

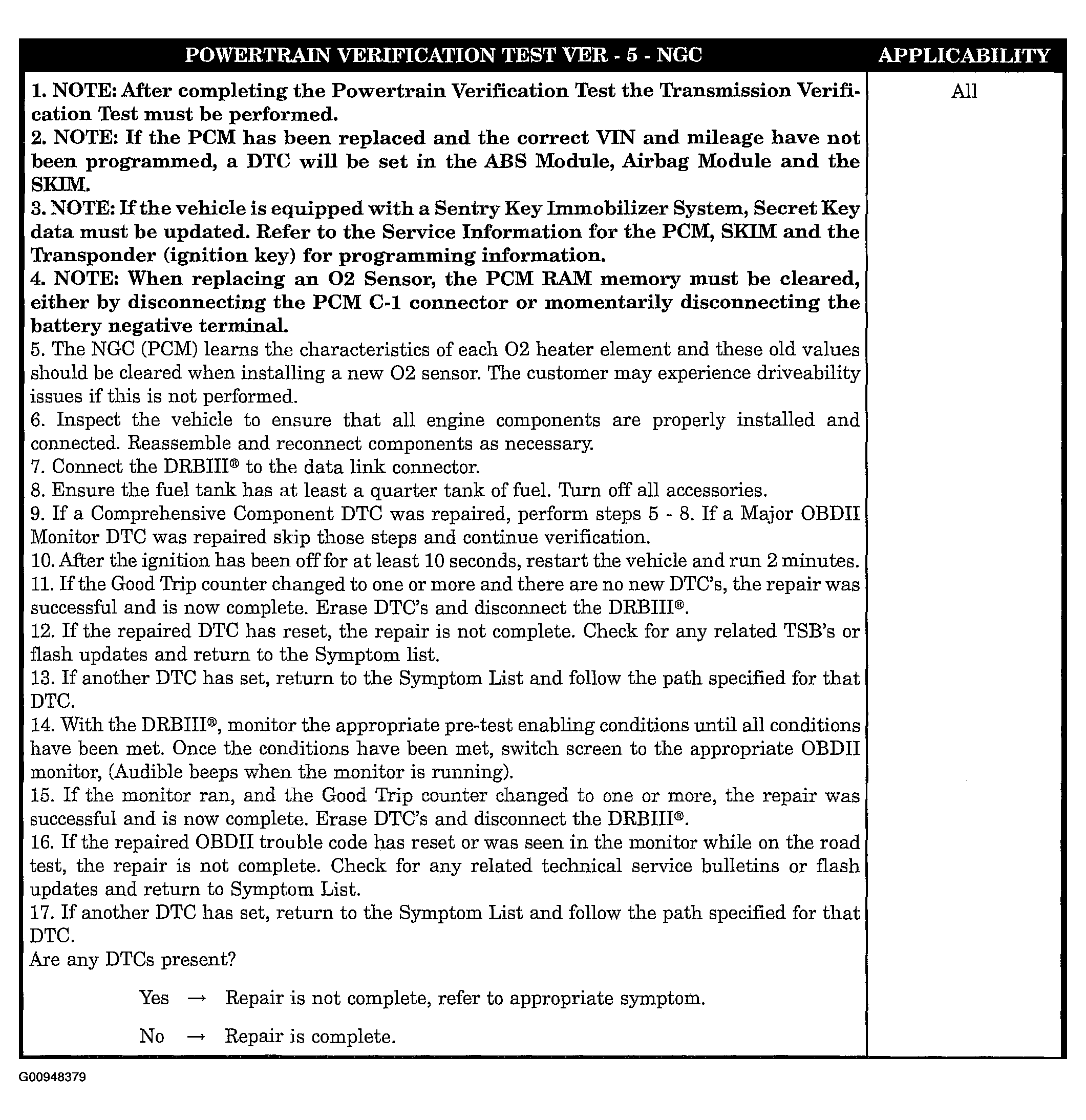

Fig 7: Powertrain Verification Test - VER 5 (NGC)

Courtesy of DAIMLERCHRYSLER CORP.

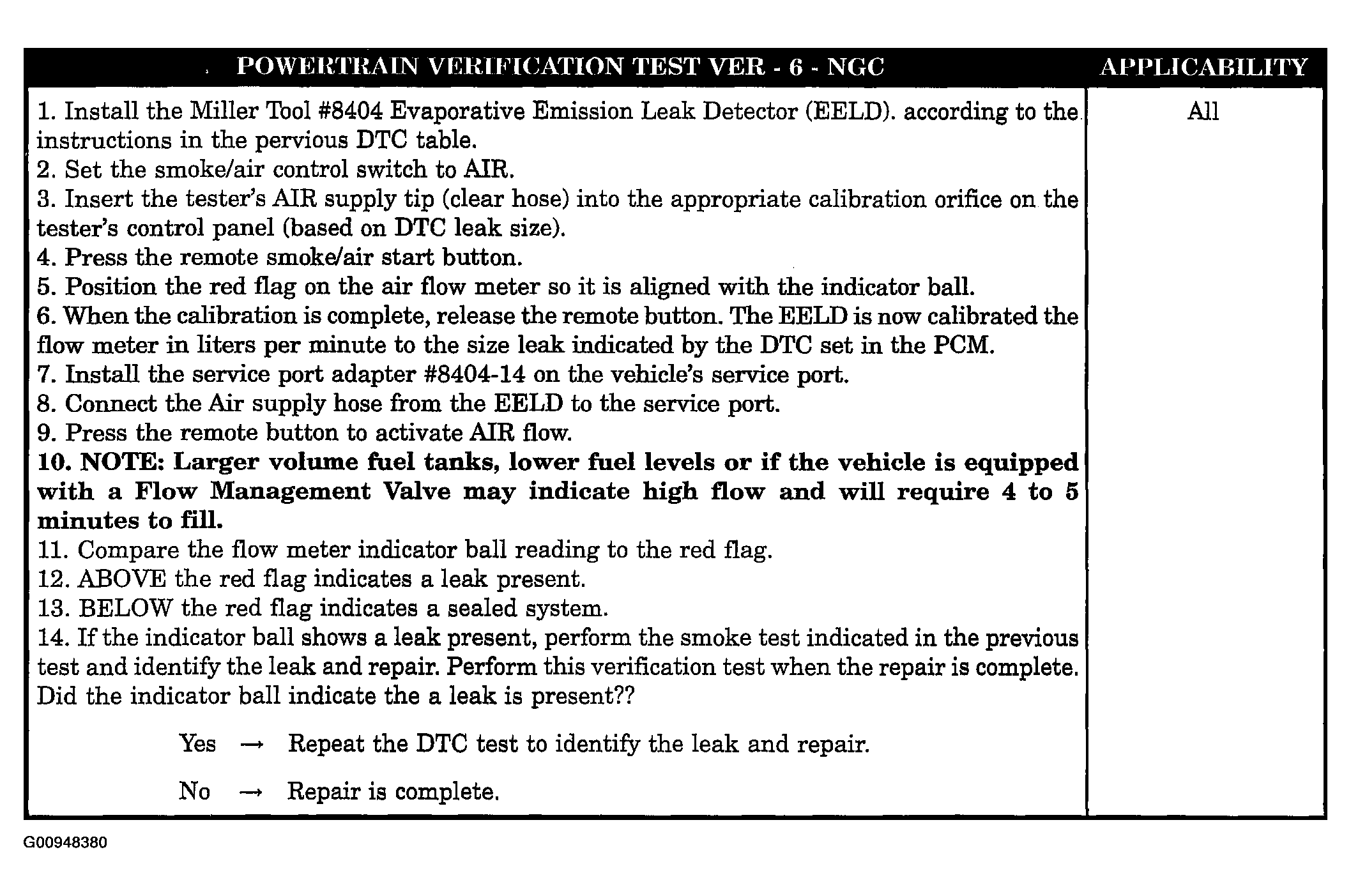

Fig 8: Powertrain Verification Test - VER 6 (NGC)

Courtesy of DAIMLERCHRYSLER CORP.

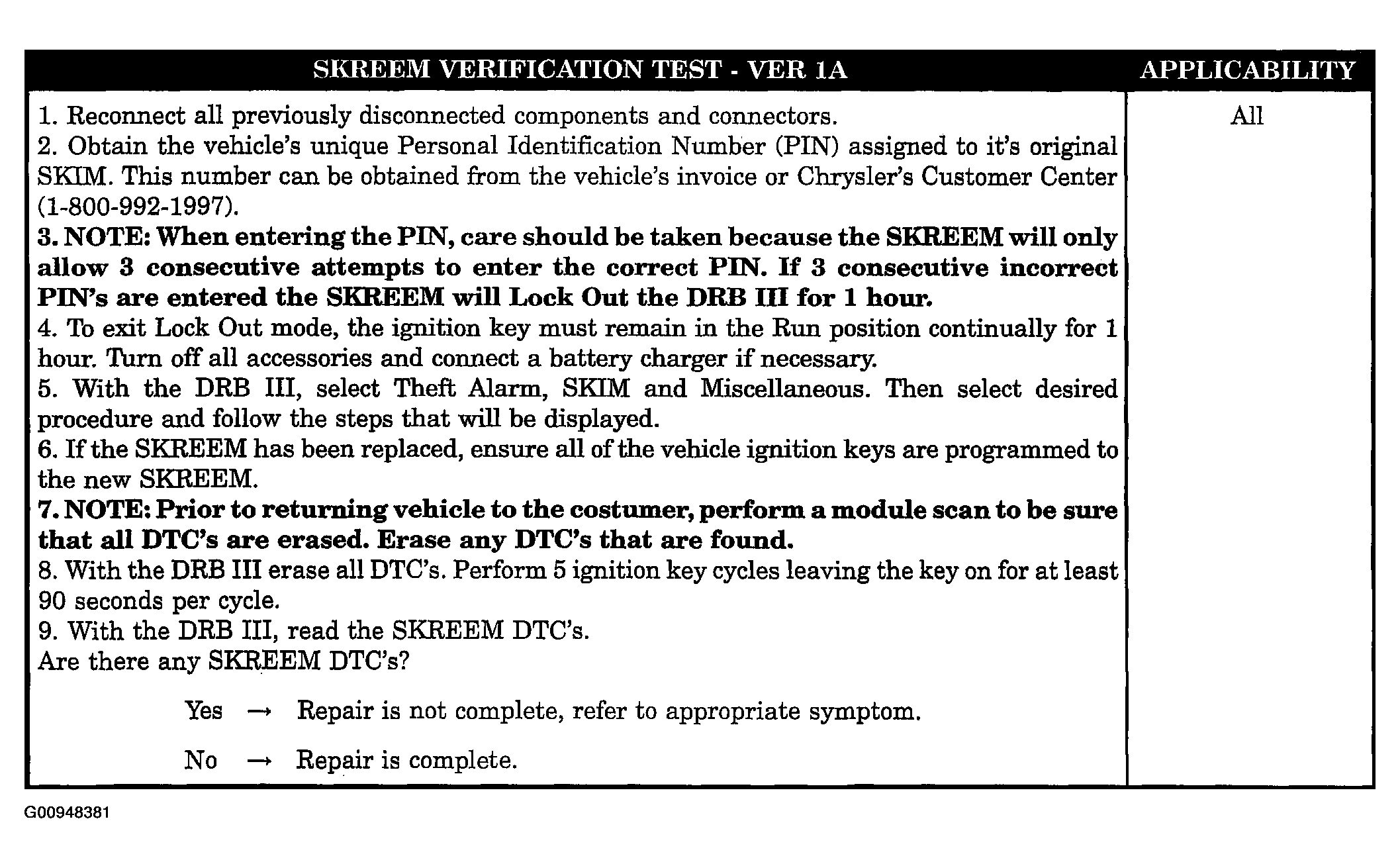

Fig 9: SKREEM Verification Test - VER 1A

Courtesy of DAIMLERCHRYSLER CORP.
