Home >> Chrysler >> 2005 >> Pacifica Limited >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition Control >> Ignition Coil Capacitor >> Installation

Ignition Coil Capacitor: Installation

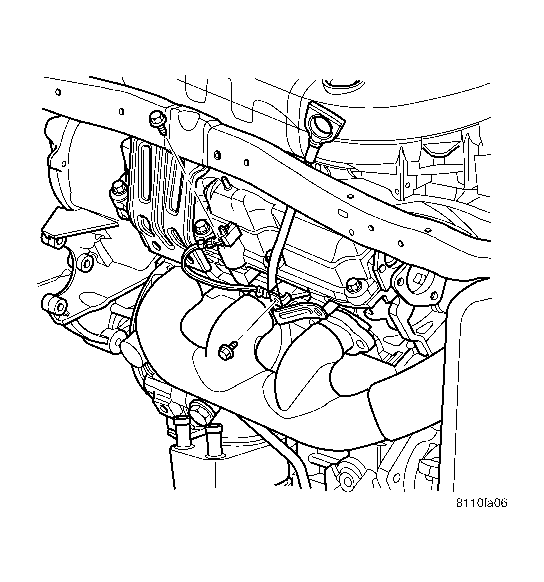

  1. Install the bolt to capacitor. See Figure. Make sure that the ground strap is in place.
  2. Tighten bolt.
  3. Install the electrical connector to capacitor.
  4. Connect the negative battery cable.
