Knock Sensor: Installation: 3.5L

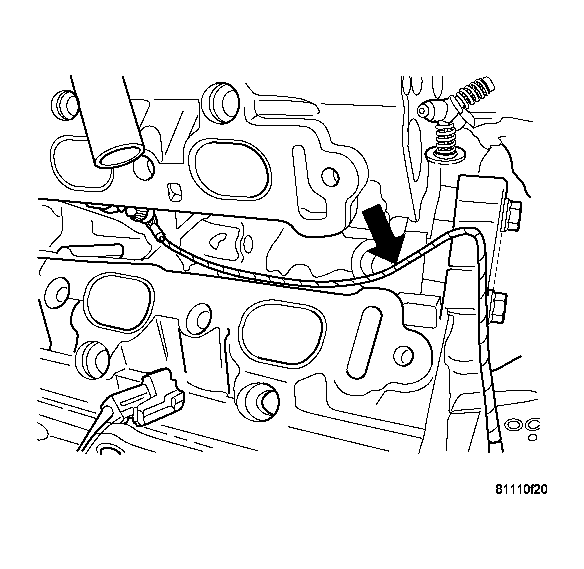

Fig 1: KNOCK SENSOR WIRE ROUTE

Courtesy of DAIMLERCHRYSLER CORP.

Install knock sensor. Tighten knock sensor to 20 N.m (15.2 in. lbs.) torque. Over or under tightening effects knock sensor performance, possibly causing improper spark control.
Route the knock sensor wire in the proper location. See Fig 1.
Install the upper intake manifold. Refer to INSTALLATION - UPPER INTAKE MANIFOLD .

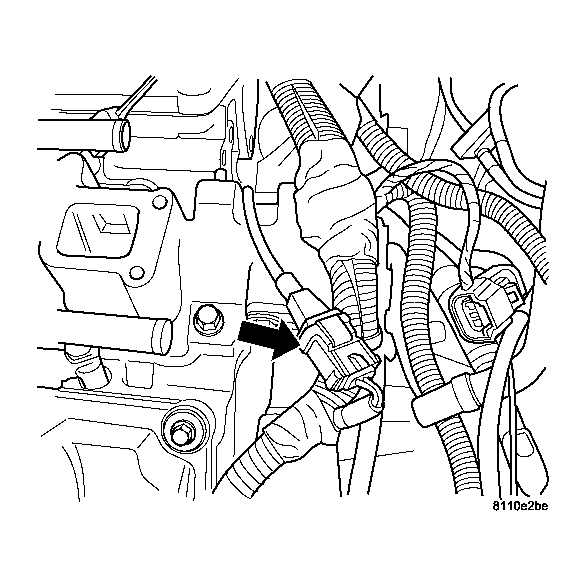

Fig 2: KNOCK SENSOR CONNECTOR
Courtesy of DAIMLERCHRYSLER CORP.
Connect the electrical connector. See Fig 2.
Connect the negative battery cable.
